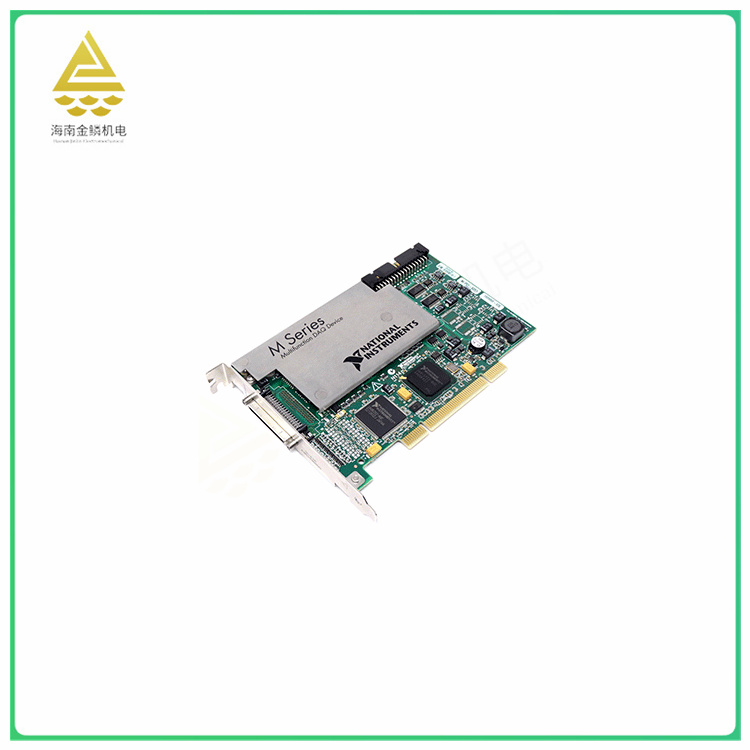

The PCI-6251 is a 16-bit resolution high-speed multi-function DAQ (Data Acquisition) board manufactured by National Instruments. The board supports both analog and digital triggers and has approximately 70 signal conditioning options, providing users with a high degree of flexibility and precision.
Here are some of the key features and benefits of PCI-6251:
High accuracy and high speed sampling: In multi-channel operation, the PCI-6251 provides excellent accuracy with a sampling rate of approximately 1.25 MS/s per single channel and 1 MS per second. This makes it ideal for applications that require high-speed, high-precision data acquisition.
Versatility: In addition to basic analog input/output functions, the PCI-6251 also offers digital I/O, counter/timer, and more. It also integrates the NI-PGIA 2 amplifier, which provides fast performance at high scan rates.
Flexible trigger options: The PCI-6251 supports both analog and digital triggers, which gives users more trigger options to meet the needs of different applications.
Wide compatibility: The board is compatible with software platforms such as National Instruments' LabVIEW for easy data analysis and system integration.
In terms of applications, PCI-6251 is widely used in industrial automation, test and measurement, laboratory research and other fields. It can be used for signal acquisition and monitoring on industrial production lines, as well as data acquisition and processing in the laboratory for various physical, chemical and biological experiments.
The PCI-6251 high-speed multi-function DAQ board has many advantages, but it may also have some limitations, which are as follows:
High-speed data acquisition: The PCI-6251 can quickly collect a large amount of data, which is suitable for applications with high real-time requirements, such as high-speed signal measurement and image processing.
Multi-function: It can collect many types of signals, such as analog signals, digital signals, counter signals, etc., to meet different measurement needs.
High accuracy: The PCI-6251 has a high accuracy of data acquisition and can provide accurate measurement results.
Programmability: Users can configure and control the board through programming to achieve customized data acquisition and processing functions.
Flexibility: Different interfaces, channel numbers and sampling rates can be selected according to specific application requirements, which has high adaptability.
Real-time data processing: Some PCI-6251 boards support real-time processing and analysis while collecting data, improving the response speed of the system. Cons:
High cost: The price of the PCI-6251 high-speed multi-function DAQ board is relatively high, which may increase the overall cost of the system.
Complexity: Using a DAQ board with the PCI-6251 requires some technical knowledge and programming ability, and there may be some learning curve for beginners.
Compatibility issues: DAQ cards from different manufacturers may have compatibility issues, which need to be carefully considered when choosing.
Limited by hardware performance: The performance of DAQ boards may be limited by the hardware itself, which cannot meet certain special requirements or handle large-scale data scenarios.
Heat dissipation and power consumption: High-speed data acquisition may generate more heat, so pay attention to heat dissipation. At the same time, the high power consumption of PCI-6251 may require high power supply and heat dissipation of the system. It should be noted that the specific advantages and disadvantages will vary according to different DAQ board models and application scenarios. When choosing a DAQ board, it is necessary to consider the needs of the project, budget and technical requirements, weigh all aspects of factors, and choose the most suitable board.
