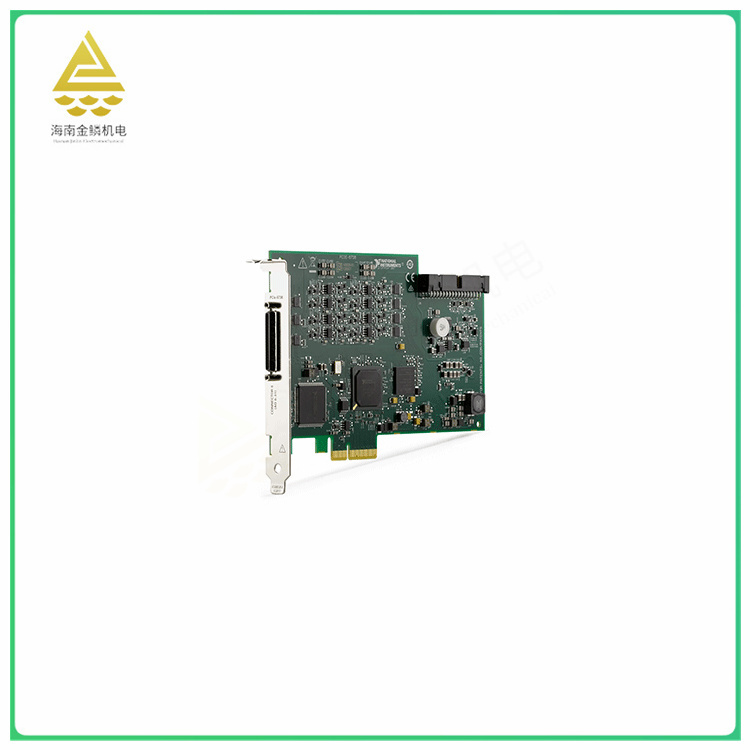

Pci-6734 is a PCI Express data acquisition module that provides high-speed, high-precision data acquisition and transmission functions. Here are some more details about PCI-6734:
High-speed data acquisition: The PCI-6734 supports a sampling rate of up to 6.25 MS/s (per channel), enabling fast capture and transmission of analog signals. This makes it suitable for a variety of applications requiring high-speed data acquisition, such as real-time signal processing, radar and sonar signal analysis, etc.
High accuracy: The module has a 16-bit vertical resolution that allows for highly accurate data acquisition. This helps to reduce noise and distortion and improve the quality of the signal.
Multi-channel: PCI-6734 supports multi-channel data collection with a maximum of 16 channels. This makes it suitable for applications that require simultaneous acquisition of multiple signal sources, such as multi-channel data recording and monitoring.
PCI Express interface: The module adopts PCI Express interface and connects with the PCI Express bus of the computer, providing high-speed data transmission and low latency performance. This helps to improve the real-time and response speed of data acquisition.
Flexible triggering mode: The PCI-6734 supports multiple triggering modes, such as software triggering, hardware triggering, and external triggering. This allows it to select the appropriate trigger according to the application requirements for accurate data capture and synchronization.
Easy to program and use: The module provides easy-to-use apis and drivers that make it easy for users to integrate data acquisition capabilities in their own applications. This helps simplify the development process and speed time to market.
In summary, the PCI-6734 is a powerful, high-performance data acquisition module suitable for a variety of applications requiring high-speed, high-precision data acquisition. By connecting to the PCI Express bus of the computer, it can provide high-speed, low-latency data transmission and flexible triggering methods to help users achieve accurate data capture and synchronization.
Here are a few scenarios where PCI-6734 might be suitable:
Real-time signal processing: For applications that require rapid processing of analog signals, such as radar, sonar, communication systems, etc., PCI-6734's high sampling rate and multi-channel features can meet the needs of real-time signal processing.
High-speed data recording and monitoring: In applications where multiple signal sources need to be recorded and monitored, such as test and measurement, fault diagnosis, etc., the PCI-6734 provides high-speed, high-precision data acquisition and storage.
Automatic control and monitoring: In the field of industrial automation and process control, the PCI-6734 can be used to monitor and control various equipment and workflows in real time, enabling accurate data acquisition and feedback control.
Biomedical engineering: In the field of biomedical engineering, such as the acquisition and processing of electrocardiogram (ECG/EKG), electroencephalogram (EEG) and other signals, PCI-6734's high-precision and low-noise performance can help researchers and doctors obtain accurate physiological signal data.
Audio and image processing: For applications that require real-time processing of audio and image data, such as audio analysis, image recognition, etc., PCI-6734 can provide high-speed, high-precision data acquisition and transmission capabilities.
