Product Overview
The

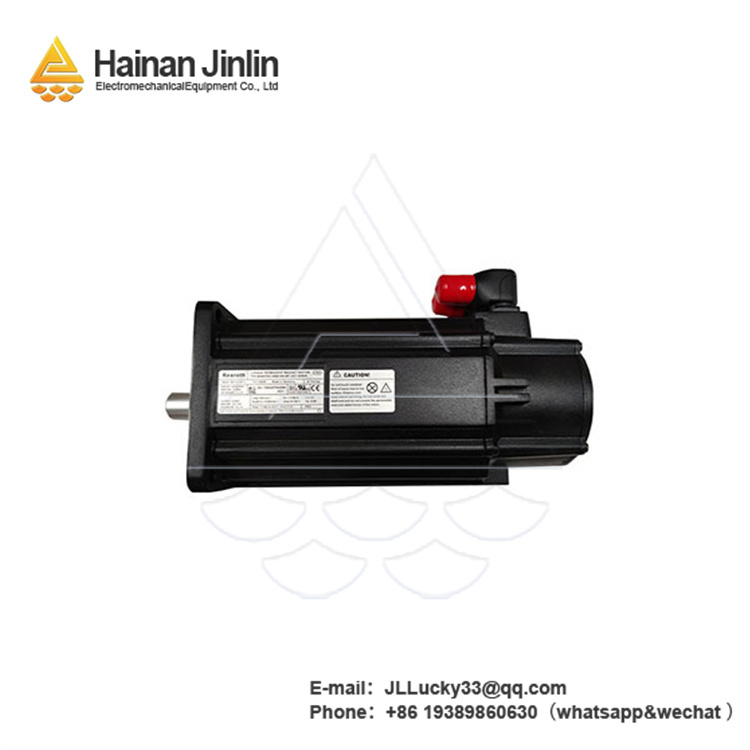

MSK076C-0450-NN-M1-UG1-NNNN is a high-torque servo motor designed for precision motion control applications in industrial automation. Manufactured by Bosch Rexroth, a leader in drive technology, this motor delivers exceptional dynamic performance, making it ideal for demanding environments such as machine tools, robotics, and automated assembly lines.
With its robust design and advanced magnetic technology, the MSK076C-0450-NN-M1-UG1-NNNN ensures smooth operation even at high speeds, providing accurate positioning and consistent torque output. Its compact form factor allows for easy integration into space-constrained machinery, while its durable construction—including a high-grade stainless steel housing—resists corrosion and withstands harsh industrial conditions, such as exposure to dust, vibration, and temperature variations.
Whether used in CNC machining centers requiring micron-level precision or robotic arms needing rapid acceleration, the MSK076C-0450-NN-M1-UG1-NNNN excels in maintaining performance stability over extended operational cycles. Its compatibility with Bosch Rexroth’s servo drives and control systems further enhances system efficiency, enabling seamless synchronization between motor and drive for optimized energy usage and reduced wear.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
MSK076C-0450-NN-M1-UG1-NNNN
|
|
Manufacturer
|
Bosch Rexroth
|
|
Product Type
|
Permanent Magnet Servo Motor
|
|
Rated Torque
|
45 Nm
|
|
Maximum Speed
|
3000 rpm
|
|
Power Rating
|
14.2 kW
|
|
Voltage Rating
|
400 V AC
|
|
Feedback System
|
Multiturn absolute encoder (2048 ppr)
|
|
Protection Class
|
IP65 (shaft seal), IP54 (connections)
|
|
Operating Temperature
|
-20°C to 40°C (continuous), -20°C to 60°C (intermittent)
|
|
Mounting Type
|
Flange mount (ISO 9409-1)
|
|
Shaft Diameter
|
25 mm
|
Key Features and Benefits
The
MSK076C-0450-NN-M1-UG1-NNNN stands out for its impressive torque density, delivering 45 Nm of rated torque in a compact frame—ideal for applications where high power output is required without sacrificing space. This torque capability ensures reliable performance in heavy-duty tasks, such as material handling or press machinery, where consistent force is critical for maintaining production quality.
A standout feature of the MSK076C-0450-NN-M1-UG1-NNNN is its high-resolution multiturn absolute encoder, which provides precise position feedback with 2048 pulses per revolution. This accuracy enables sub-millimeter positioning, making it suitable for precision manufacturing processes like electronics assembly or aerospace component machining, where even minor deviations can compromise product integrity.
The motor’s robust protection class (IP65 for the shaft seal, IP54 for connections) ensures durability in challenging environments. It resists water jets, dust ingress, and temperature fluctuations, reducing maintenance needs and extending service life in industries such as food processing (with proper enclosures) or outdoor material handling.
Dynamic response is another key advantage of the MSK076C-0450-NN-M1-UG1-NNNN, with rapid acceleration and deceleration capabilities that minimize cycle times in automated systems. This responsiveness is enhanced by its low rotor inertia, allowing for quick changes in speed and direction—essential for robotic pick-and-place operations or high-speed packaging lines.
Compatibility with Bosch Rexroth’s IndraDrive series servo drives simplifies system integration, enabling advanced control features such as torque ripple compensation and energy regeneration. These features optimize motor performance, reduce energy consumption, and lower operational costs over time.
Related Models
- MSK090C-0600-NN-M1-UG1-NNNN – Higher torque model (60 Nm) designed for heavy machinery.
- MSK076C-0450-NN-M2-UG1-NNNN – Version with a resolver feedback system for applications requiring enhanced noise immunity.
- MSK076D-0450-NN-M1-UG1-NNNN – Next-generation variant with improved efficiency (IE4) and reduced heat generation.
- HMS01.1N-W0070-A-07-NNNN – Bosch Rexroth servo drive perfectly matched to the MSK076C-0450-NN-M1-UG1-NNNN for optimized system performance.
As a professional distributor, we offer expert pre-sales support to ensure the MSK076C-0450-NN-M1-UG1-NNNN integrates seamlessly with your servo drive system, including guidance on wiring, mounting, and compatibility checks. Our after-sales service includes technical troubleshooting, maintenance advice, and a one-year warranty on all units, ensuring long-term reliability.
