3 bse042239r1
General information
Product Number :3 bse042239r1
ABB model :PP815
Directory Description :PP815 touch screen
Detailed description :PP815 touch screen
Panel 800-PP815
3 bse042239r1
General information
Product Number :3 bse042239r1
ABB model :PP815
Directory Description :PP815 touch screen
Detailed description :PP815 touch screen
Panel 800-PP815
"3,8"" Resistive Touch Panel"
TFT-LCD 320x240 pixels, graphics <(>&<)> text, touch, color
Exchange p/n: EXC3BSE042239R1
If you need UL1604 certified panels, order them.
category
Products » Control System »800xA» Operations »800 Panel »800 Panel 4.1» Control System Accessories
Products » Control System »800xA» Operations » Panel 800» Panel 800 5.0» Control System Accessories
Products » Control System »800xA» Operations » Panel 800» Panel 800 5.1» Control System Accessories
Products » Control System » Compact Product Suite » Operations »800 Panel »800 Panel 4.1» Control System Accessories
Products » Control System » Compact Product Suite » Operations » Panel 800» Panel 800 5.0» Control System Accessories

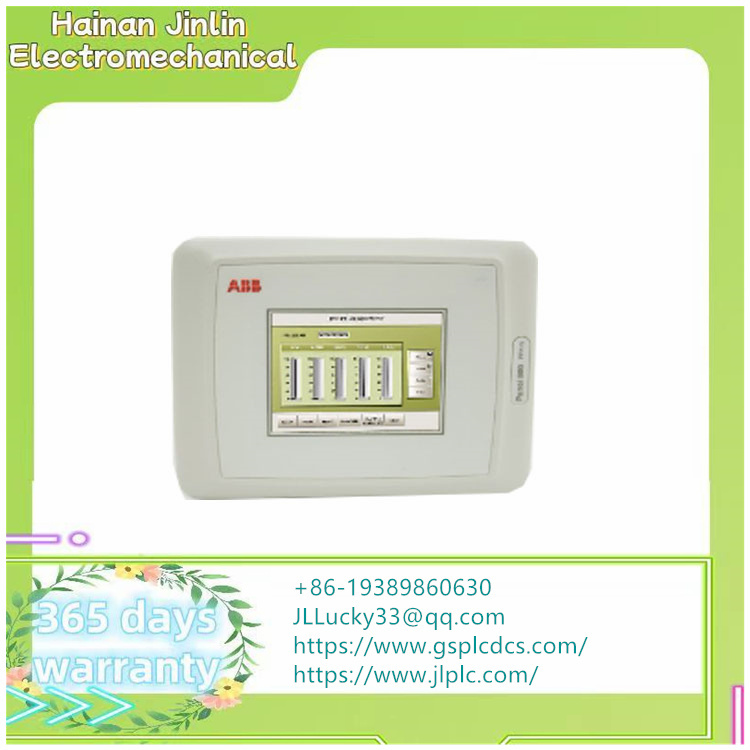

3BSE042239R1 - Image 0
Additional information
Description :PP815 touch screen
Panel 800-PP815
"3,8"" Resistive Touch Panel"
TFT-LCD 320x240 pixels, graphics <(>&<)> text, touch, color
Exchange p/n: EXC3BSE042239R1
If you need UL1604 certified panels, order them.
Product type :Control_System_Accessory
Technical information :PP815 touch screen
Panel 800-PP815
"3,8"" Resistive Touch Panel"
TFT-LCD 320x240 pixels, graphics <(>&<)> text, touch, color
Exchange p/n: EXC3BSE042239R1
If you need UL1604 certified panels, order them.
order
Product code :847141 - Automatic data processor and its apparatus; Magnetic or optical card readers, machines that transcribe data to data media in encoded form and machines that process such data, not specified or included elsewhere. - Other automatic data processors :- Include at least one central processing unit and one input/output unit in the same housing, whether combined or not
Customs number :84714100
d
Net depth/length: 238.5mm
Product height :72mm
Product width :162 mm
Net weight :0.93 kg
environment
RoHS status: in compliance with EU Directive 2002/95/EC of 18 August 2005 and its amendments
E-waste category :2. Screens, displays and devices with screen surfaces greater than 100cm
Battery quantity :1
Battery chemical composition: lithium
Battery type: button battery
Battery weight: 6.3g
Screen size :4 inches
SCIP: No SVHC Thailand (TH)
Touch screen, also known as touch screen or touch panel, is an inductive liquid crystal display device that can receive touch input signals. When touching the graphical buttons on the screen, the haptic feedback system on the screen can drive various connecting devices according to a pre-programmed program, which can be used to replace the mechanical button panel and create vivid audio and video effects through the LCD display.
The PP815 touch screen consists of a touch detection unit and a touch screen controller. The touch detection component is installed in front of the display screen to detect the user's touch position and accept the rear touch screen controller; The main function of the touch screen controller is to receive touch information from the touch point detection device, convert it into contact coordinates, and then send it to the CPU, which can also receive the command sent by the CPU and execute it.
Since the world's earliest resistive touch screen appeared in 1974, with the development of science and technology and the growth of application needs, various touch technologies have been born to adapt to various industries and levels of application. Today, commercialized touch screen technologies that have been formed include: Resistive technology touch screen, capacitive technology touch screen, infrared technology touch screen, surface acoustic wave (SAW) technology touch screen, etc., and has been widely used in mobile phones, tablet computers, retail, public information inquiry, multimedia information system, medical instruments, industrial automatic control, entertainment and catering industry, automatic ticketing system, education system and many other fields.
