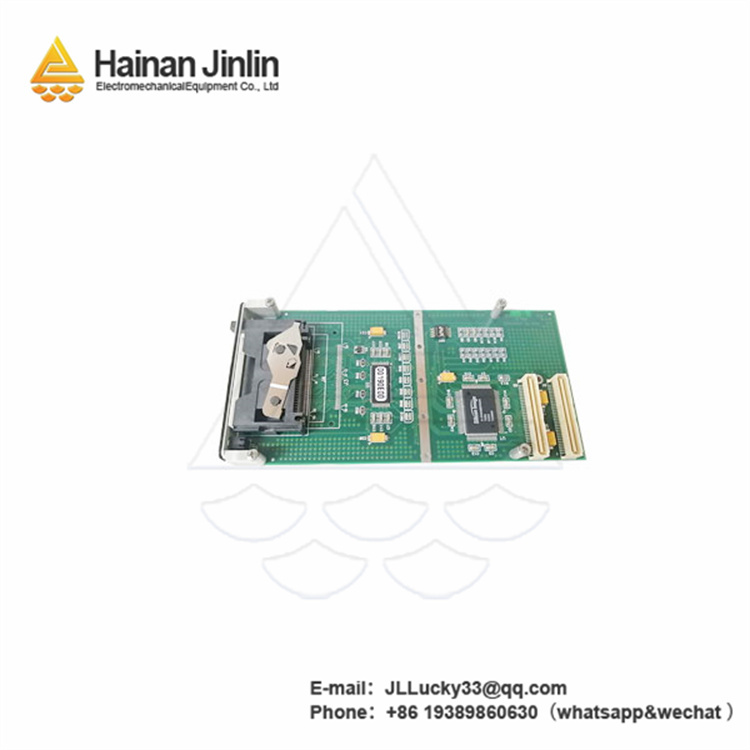

Product Overview
The PMC234 is a versatile programmable logic controller (PLC) module designed for industrial automation systems, offering robust control capabilities for a variety of manufacturing and process applications. As a key component in modern automation setups, the PMC234 excels at executing complex control logic, monitoring input/output signals, and communicating with other system devices—ensuring seamless operation in industries such as automotive production, food and beverage processing, and packaging.
Core features of the PMC234 include high processing speed, expandable I/O capacity, and support for multiple communication protocols, making it adaptable to both small-scale machines and large-scale production lines. Its compact design allows for easy integration into existing control cabinets, while its user-friendly programming interface simplifies setup and modification of control sequences. With a focus on reliability, the PMC234 is built to withstand industrial environments, providing consistent performance even in conditions with vibration, temperature fluctuations, and electrical noise.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
|
|
Dimensions
|
120 mm x 80 mm x 60 mm
|
|
Product Type
|
Programmable Logic Controller Module
|
|
Processing Speed
|
0.1 μs per basic instruction
|
|
Native I/O Points
|
32 digital inputs, 16 digital outputs
|
|
Expandable I/O
|
Up to 512 points via expansion modules
|
|
Communication Protocols
|
Modbus RTU, Ethernet/IP, Profibus DP
|
|
Operating Temperature
|
-20°C to 60°C
|
|
Power Supply
|
24 VDC (1.2 A typical)
|
|
Dimensions
|
120 mm x 80 mm x 60 mm
|
Key Features and Benefits
High-Speed Processing
The
PMC234 delivers a processing speed of 0.1 μs per basic instruction, enabling rapid execution of control logic. This speed is critical for applications requiring precise timing, such as synchronization of conveyor belts or high-speed packaging machinery, where even minor delays can disrupt production flow.
Flexible I/O Expansion
With 32 native digital inputs and 16 digital outputs, plus the ability to expand to 512 I/O points via compatible modules, the
PMC234 adapts easily to evolving system requirements. This scalability makes it suitable for both initial system setups and future expansions, reducing the need for hardware replacement.
Multi-Protocol Communication
Support for Modbus RTU, Ethernet/IP, and Profibus DP ensures the PMC234 can communicate seamlessly with HMIs, sensors, drives, and other PLCs. This interoperability simplifies integration into diverse automation ecosystems, whether upgrading an existing system or building a new one from scratch.
User-Friendly Programming
The PMC234 is programmable using Schneider Electric's EcoStruxure Control Expert software, which offers a intuitive interface with ladder logic, function block diagram (FBD), and structured text (ST) programming options. This flexibility allows engineers to use their preferred method, speeding up development and reducing training time.
Industrial Durability
Designed to operate in harsh environments, the
PMC234 withstands temperatures from -20°C to 60°C, vibration up to 10 g, and electrical noise. Its rugged construction ensures reliable performance in factory floors, where dust, moisture, and mechanical stress are common.
We back the PMC234 with a one-year warranty, supported by our team of automation experts. From pre-sales system design to post-installation troubleshooting, we provide tailored support to ensure optimal performance in your specific application.
Related Models
- PMC234-EXT – Expansion module for the PMC234, adding 16 analog inputs and 8 analog outputs for process control applications.
- PMC232 – Compact variant of the PMC234 with 16 I/O points, ideal for small machines with limited space.
- PMC236 – Advanced model with built-in motion control capabilities, compatible with the PMC234 for complex automation systems.
- HMIGXU3512 – HMI panel designed to pair with the PMC234 , providing visual monitoring and operator control.
- PMC234-R – Redundant version of the PMC234, offering fault tolerance for mission-critical applications.
- LXM32AD18M2 – Servo drive module, integrates with the PMC234 for precise motion control in robotics and packaging.
- PMC230 – Previous generation model, compatible with the PMC234 for retrofits and system upgrades.
As a certified distributor of Schneider Electric and other leading automation brands, we specialize in delivering reliable control solutions. Our pre-sales team can assist with selecting compatible components, while after-sales support includes software configuration and maintenance training. The
PMC234 comes with a one-year warranty. For more details or to inquire about related products, contact us via WhatsApp: [
