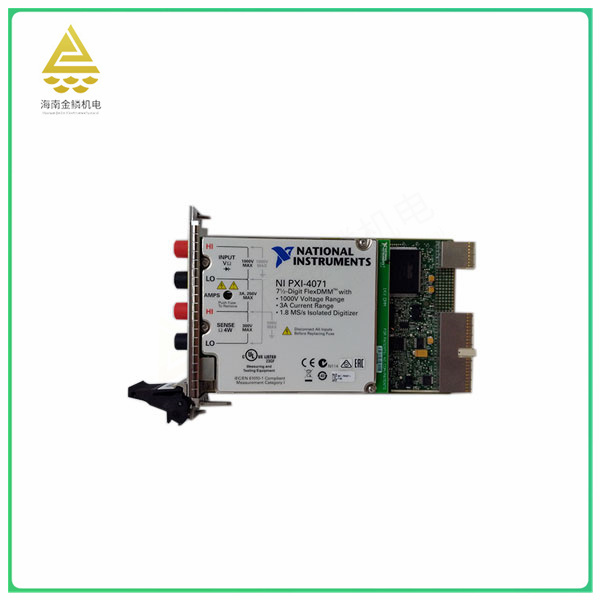

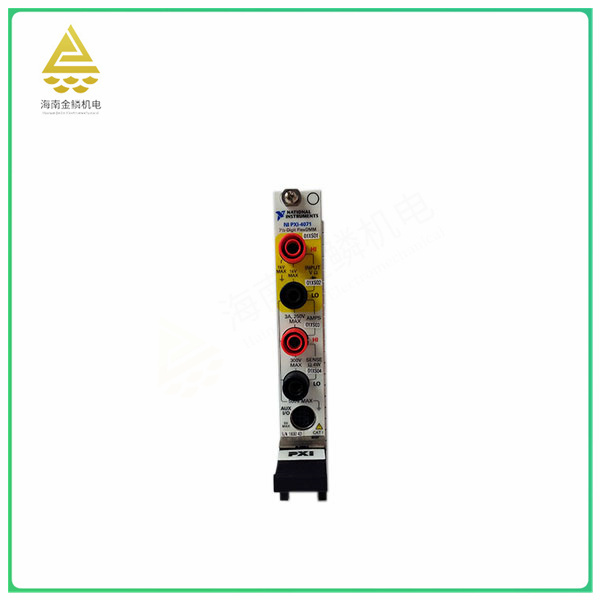

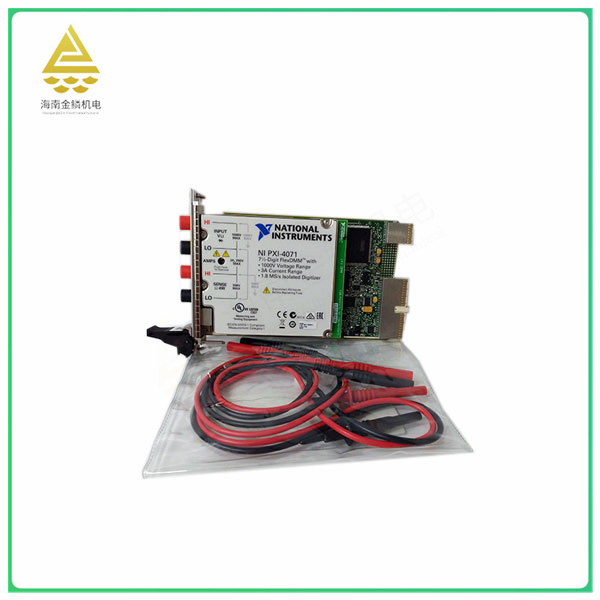

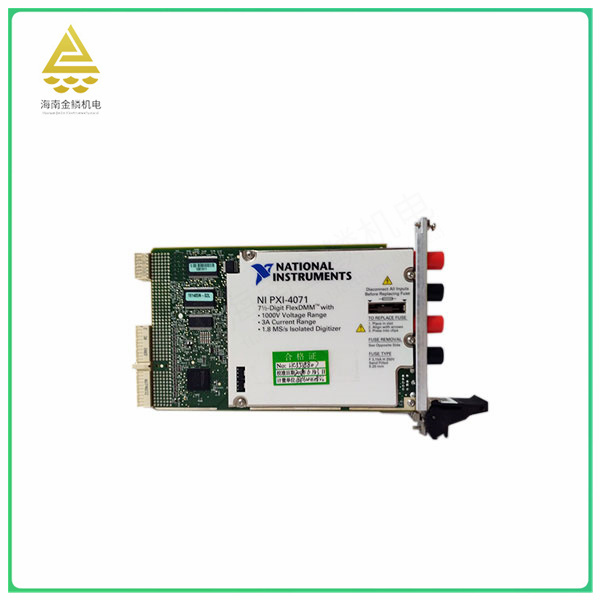

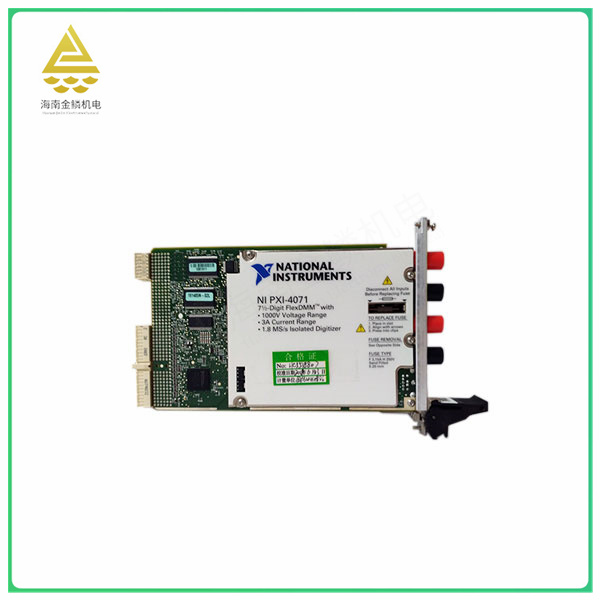

The PXI-4071 is a 7-bit semi-FlexDMM - a high-performance, versatile 3U PXI module that provides high-resolution digital multimeter and digitizer measurement capabilities. It makes fast and accurate voltage measurements in the ±10nV to 1000V range, current measurements in the ±1pA to 3A range, resistance measurements in the 10 µΩ to 5 GΩ range, and period and diode measurements.
In both voltage mode and current mode, the PXI-4071 can acquire DC-coupled waveforms at test rates up to 1.8 MS/s. In addition, it offers high speed, high precision and practicality, making it ideal for automated testing.
The PXI-4071 has a wide range of applications, including but not limited to:
Power: Used to monitor and control the status and parameters of power equipment, such as transformers, circuit breakers, etc., to ensure the stable operation of the power system.
Manufacturing: Control production lines, robots and automation equipment to improve production efficiency and product quality.
Transportation: Monitor and control traffic lights, toll stations, vehicle detectors and other equipment to improve traffic efficiency and safety.
Aerospace: Monitor and control the status and parameters of various aerospace equipment to ensure the normal operation and safety of equipment.
In addition, for applications that require higher throughput, such as a high DC read rate of 2kS/s at 104 bits, the PXI-4071 can also meet the needs. Its universal speed, accuracy, and practicality make it ideal for automated testing. At the same time, using the inspection capabilities in NI LabVIEW programming, users can study these waveforms and repeatability in a timely manner.
