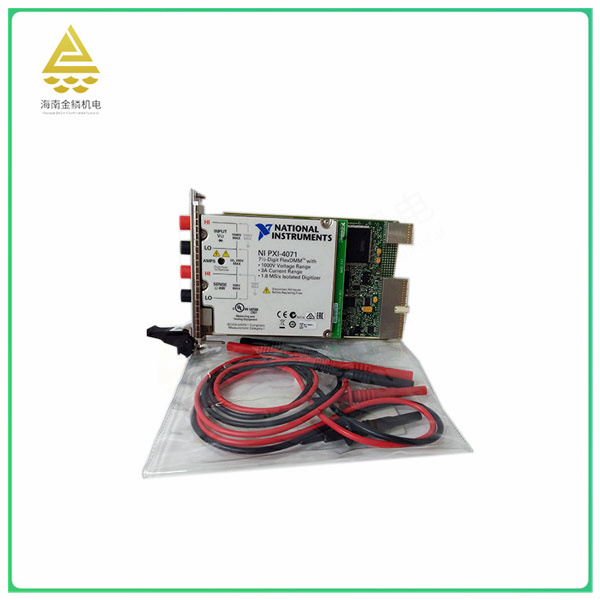

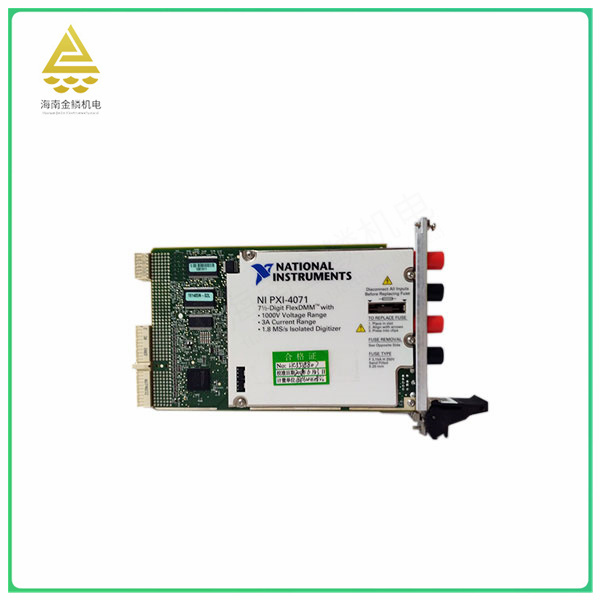

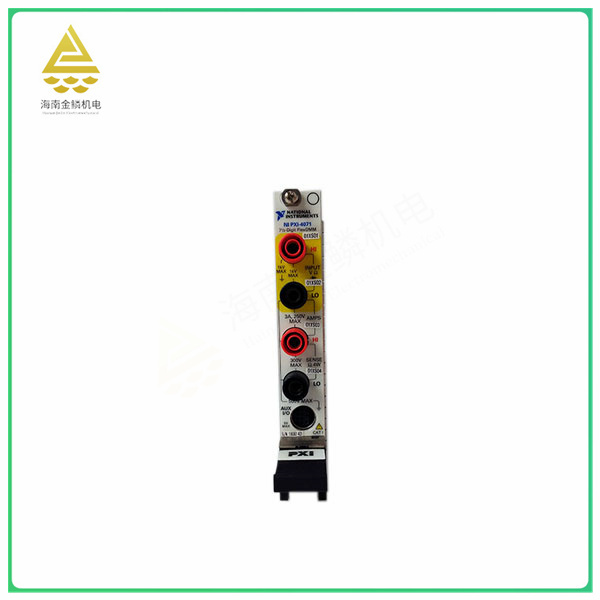

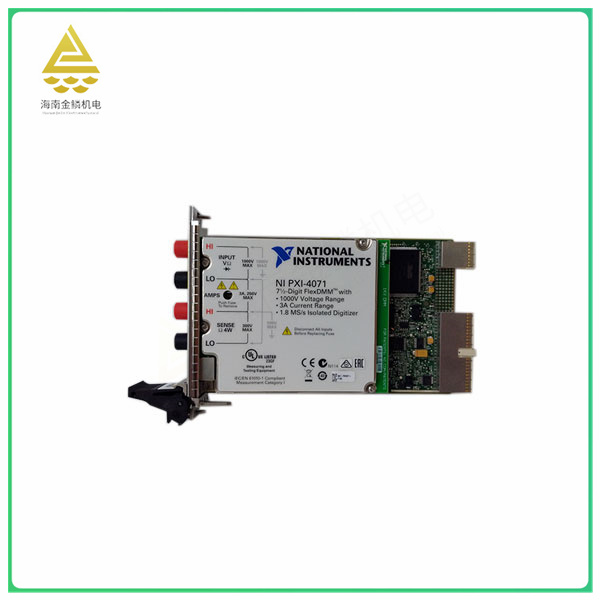

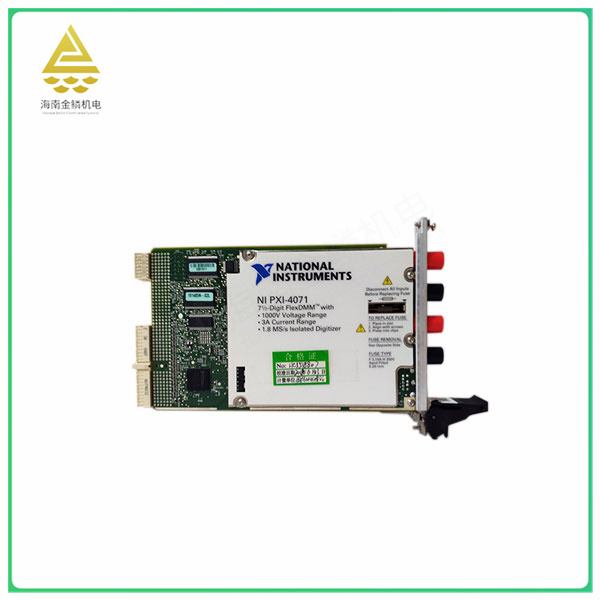

The PXI-4071 is a high-performance, multi-functional 3U PXI module based on the PXI bus, with high-resolution digital multimeter and digitizer measurement functions.
As A digital multimeter, it can quickly and accurately measure the voltage range from ±10 nV to 1000 V, the current range from ±1 pA to 3 A, the resistance range from 10 μΩ to 5 GΩ, and can perform cycle and diode measurements. In addition, it has the measurement function of DC current range -3 A to 3 A.
As a digitizer, it can collect, analyze and generate signals, support a variety of sampling rates and trigger modes, and has the characteristics of high precision and high stability.
In addition, the PXI-4071 features programmable input/output ports and triggers for connection and integration with other modules or devices. It also supports plug and play and hot swap functions for easy module replacement and maintenance.
In summary, the PXI-4071 is a powerful, high-performance digital multimeter and digitizer module for a variety of applications requiring high-precision measurements.
PXI-4071 module has a variety of application areas, mainly including the following aspects:
Automotive and aerospace: The PXI-4071 module can be used for battery testing, electric vehicle charging system testing, electrical equipment testing, etc. It provides better voltage and current measurement capabilities for the development and testing of electric vehicle and aircraft electrical systems.
Renewable energy field: In the field of renewable energy such as solar and wind power, the PXI-4071 module can be used for battery testing, power inverter performance evaluation, power monitoring and other applications. It has high precision voltage and current measurement capabilities for accurate measurement and analysis of energy conversion and storage.
Automatic test equipment (ATE) field: PXI-4071 module as a high-performance digital multimeter and digitizer, can be widely used in the field of automatic test equipment. It can provide ATE with high-precision voltage, current, resistance and other measurement functions, and support high-speed data acquisition and trigger control, improve the test accuracy and efficiency of ATE.
Laboratory and R&D fields: The PXI-4071 module's high-precision measurement capabilities and programmability make it ideal for laboratory and R&D fields. Researchers can use it for a variety of experiments and tests, such as electronic device performance testing, sensor calibration, material analysis, and more.
In summary, the PXI-4071 module has a wide range of applications, whether in automotive, aerospace, energy or laboratory and research and development, which can benefit from its high-precision measurement capabilities.
