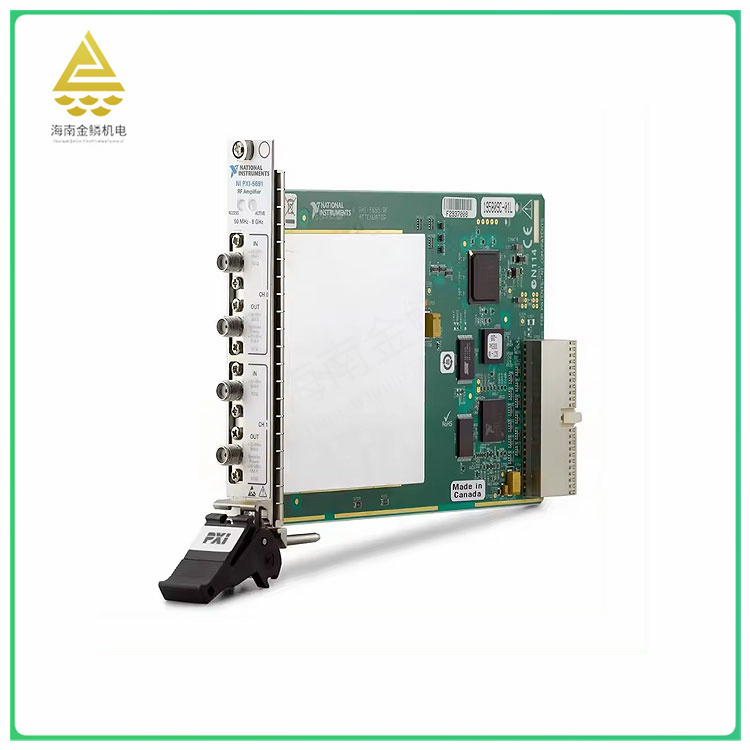

The PXI-5691 is a dual-channel programmable RF amplifier with a variety of functions and features, as follows:
Frequency range: The amplifier can handle RF signals from 50MHz to 8GHz, covering a wide frequency range.
Functional diversity: The PXI-5691 can be used as either a preamplifier or a power amplifier to meet different application requirements.
Powerful amplification capability: The amplifier has a maximum output power of more than 20dBm, and a total gain of up to 60dB, enabling it to effectively amplify RF signals.
Precise gain control: The PXI-5691 provides a gain resolution of 0.5dB for more precise gain adjustment.
Excellent linearity: The third-order intermodulation interception point (IP3) exceeds 31dBm, which means that the distortion generated during amplification is small and the quality of the signal is maintained.
Low noise: Its noise factor is only 5dB, which helps to maintain the quality of the signal and reduce background noise.
Programming flexibility: The PXI-5691 can be connected to an RF signal generator or signal analyzer to achieve measurement flexibility and accuracy through programming.
Powerful command transmission ability of the upper computer: the board can effectively transmit the command of the upper computer to the on-board FPGA, and radiate the signal to the label through the coding modulation of the FPGA. At the same time, it can also transmit the signal returned by the tag to the on-board FPGA, and carry out real-time signal analysis and demodulation through the FPGA.
The PXI-5691 is a dual-channel programmable RF amplifier with a variety of functions and characteristics, which can be widely used in a variety of test, measurement and experimental applications in the RF and microwave fields.
First, the PXI-5691 has a total gain of up to 60 dB and a maximum output power of more than 20 dBm, as well as a gain resolution of 0.5 dB, which makes it useful in situations where precise control of RF signal power is required. Engineers can integrate the PXI-5691 with the RF signal generator for more precise control of signal power.
Second, the PXI-5691 has a third-order intermodulation interception point (IP3) of more than 31 dBm and a noise figure of 5 dB, which allows it to maintain low distortion and background noise when amplifying the RF signal, improving the quality of the signal.
In addition, the PXI-5691 can also be connected to the RF signal analyzer, which allows engineers to achieve an equivalent input noise floor of -163 dBm, further improving measurement accuracy and flexibility.
In general, the PXI-5691 has a wide range of applications in RF and microwave test, measurement and experimental applications requiring high accuracy, high reliability and high flexibility, such as wireless communications, radar systems, electronic countermeasures, satellite communications and other fields.
