The PXI-6602 is a timing and digital I/O module with eight 32-bit counters/timers and 32 TTL/ CMOS-compatible digital I/O lines. Eight of them are dedicated digital I/O lines and the remaining 24 are shared with counters/timers.

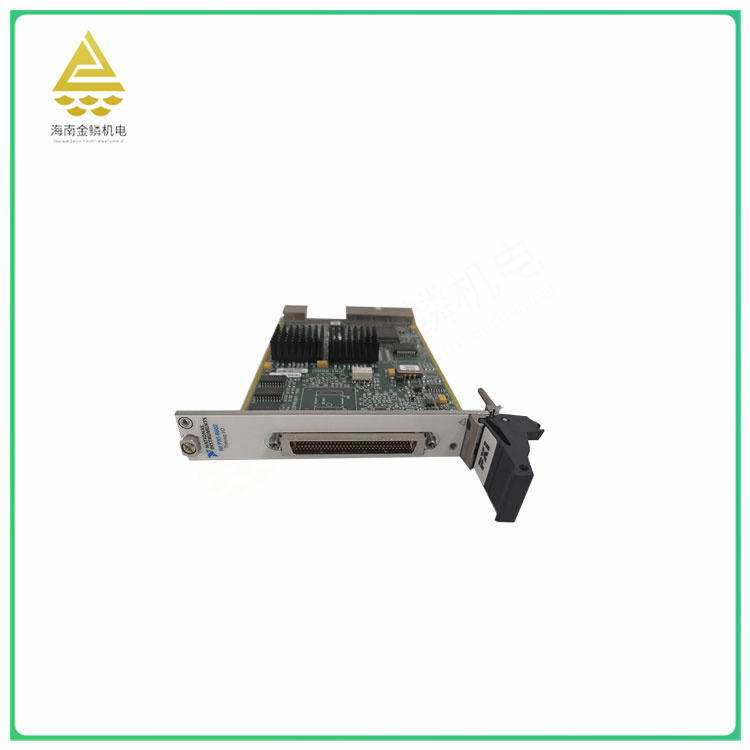

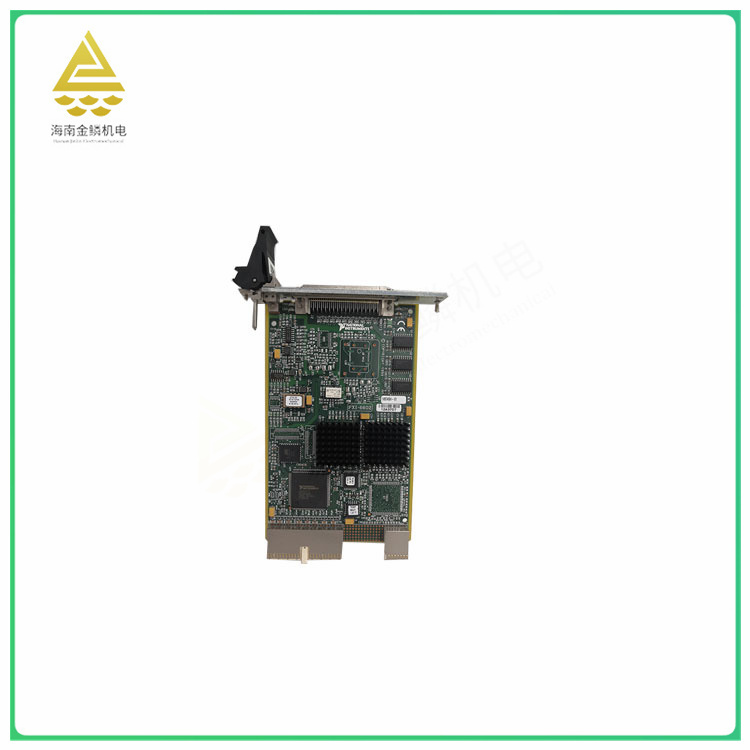

In the test system, the PXI-6602 counter can be used to measure the pulse output signal of the electromagnetic flowmeter, and can also measure the filling time. By recording the counter pulse value in the water filling process, dividing the number of pulses collected by the standard pulse value of 1s, the water filling time can be obtained. In addition, using 4 counters of the same model to collect 2 DN500 flowmeter pulse signals, 1 DN200 flowmeter pulse signals and water filling time, can improve the measurement accuracy of the test system.
In the system, NISCXI-1102 module is used to collect the water temperature analog signal. The module is a temperature acquisition module designed by NI for high-precision thermal resistance. Each input channel consists of an instrument amplifier and a 2Hz low-pass filter, which is acquired by a single DAQ device channel.
The PXI-6602 module has a wide range of applications, such as industrial automation, energy production and distribution, manufacturing, building automation, transportation, medical equipment, and laboratory equipment.
The PXI-6602 offers the following advantages:
High performance: The PXI-6602 is a high-precision timing and digital I/O module with eight 32-bit counters/timers and 32 TTL/ CMOS-compatible digital I/O lines. It provides fast and accurate measurement and control functions for a variety of applications requiring high precision measurement.
Modular design: PXI-6602 adopts modular design, which is convenient for users to select different modules according to their needs, improving the flexibility and scalability of the system.
Easy to use: The PXI-6602 has an easy-to-use interface and programming approach that allows users to easily integrate with various control systems, reducing development time and costs.
High reliability: The PXI-6602 is designed to operate reliably in harsh environmental conditions, reducing maintenance costs and downtime.
Customizable: Users can customize PXI-6602 specifications, sizes and interface types according to specific requirements to achieve personalized solutions.
Overall, the PXI-6602 is a powerful, high-performance, easy-to-use and customizable timing and digital I/O module for a variety of applications requiring high-precision measurement and control.
