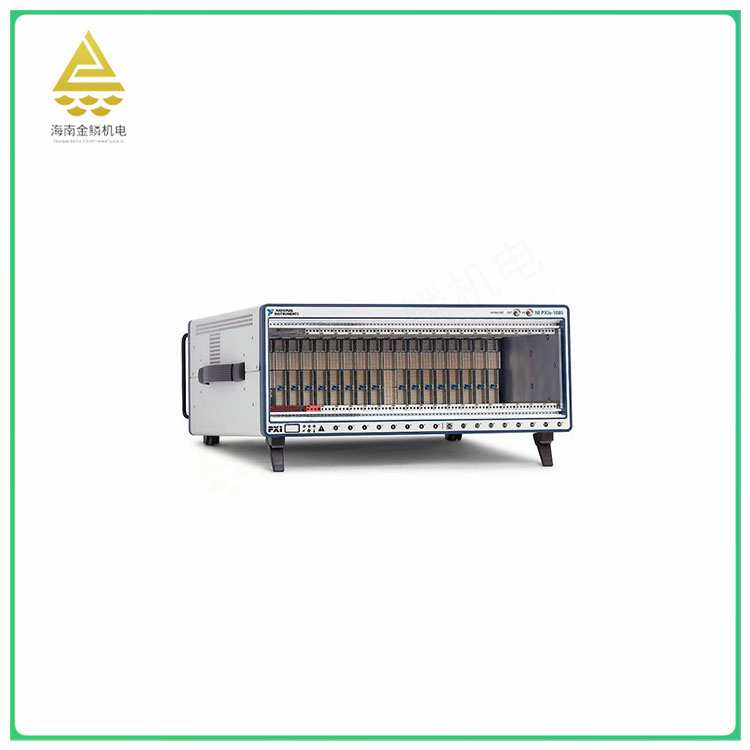

The PXIE-1085 is a high-performance PXIe chassis with high bandwidth, full hybrid backplane to meet the needs of a variety of high-performance test and measurement applications. The chassis features a high-bandwidth, full-hybrid backplane that provides 12 GB/s or 24 GB/s system bandwidth, 16 hybrid slots and one PXI Express system timing slot. Hybrid connector types in each peripheral slot provide maximum flexibility in instrument module placement. In addition, it integrates all the features of the latest PXI specification, including support for PXI and PXI Express modules, built-in 10 MHz reference clock, PXI trigger bus, and PXI star trigger for PXI modules.
The PXIE-1085 chassis has the following features:
High performance: High-bandwidth, fully hybrid backplane to meet the needs of a wide range of high-performance test and measurement applications.
Flexible slot design: With 16 hybrid slots and 1 PXI Express system timing slot, you can insert different types of instrument modules for maximum flexibility.
Integration of the latest PXI specification: All features of the latest PXI specification are integrated, including support for PXI and PXI Express modules, built-in 10 MHz reference clock, PXI trigger bus, and PXI star triggers for PXI modules.
Scalability: The chassis uses a dual-switch backplane architecture. Multiple chassis can be Daisy chained or connected in a star configuration to facilitate system expansion.
Reliability: Total power of 925 W without derating in 0-55° C temperature range.
In summary, the PXIE-1085 is a high-performance, flexible, and reliable PXIe chassis for a variety of high-performance test and measurement applications.
The PXIE-1085 is a high-performance PXIe chassis with the following functions and features:
High performance: The PXIE-1085 features a high bandwidth, fully hybrid backplane to meet the needs of a variety of high-performance test and measurement applications.
Flexible slot design: The chassis offers 16 hybrid slots and 1 PXI Express system timing slot for maximum flexibility by inserting different types of instrument modules according to actual needs.
Integration with the latest PXI specification: The PXIE-1085 integrates all the features of the latest PXI specification, including support for PXI and PXI Express modules, built-in 10 MHz reference clock, PXI trigger bus, and PXI star trigger for the PXI module.
Scalability: The chassis uses a dual-switch backplane architecture. Multiple chassis can be Daisy chained or connected in a star configuration to facilitate system expansion.
Reliability: Total power of 925 W without derating in 0-55° C temperature range.
Software compatibility: The PXIE-1085 runs on software provided by the PXI Platform Services 3.0 (or later) software media and can be configured using the Measurement and Automation Browser (MAX) tool.
In summary, the PXIE-1085 is a high-performance, flexible, and reliable PXIe chassis for a variety of high-performance test and measurement applications.
