The PXI-4132 is a programmable high precision signal source measurement unit (SMU). Features an isolated SMU channel providing four-quadrant output with remote (4-wire) detection and external protection. With its high measurement resolution and integrated multiple protections, the PXI-4132 is ideal for high-precision leak measurement applications in integrated circuits, stand-alone components, PCBS, and cables. On-board hardware sorting engine for high-speed I-V measurements for diodes, organic leds and other components. In addition, multiple PXI-4132 modules can be synchronized through the PXI backplane and high-speed I-V measurements can be performed on transistors and complex devices.

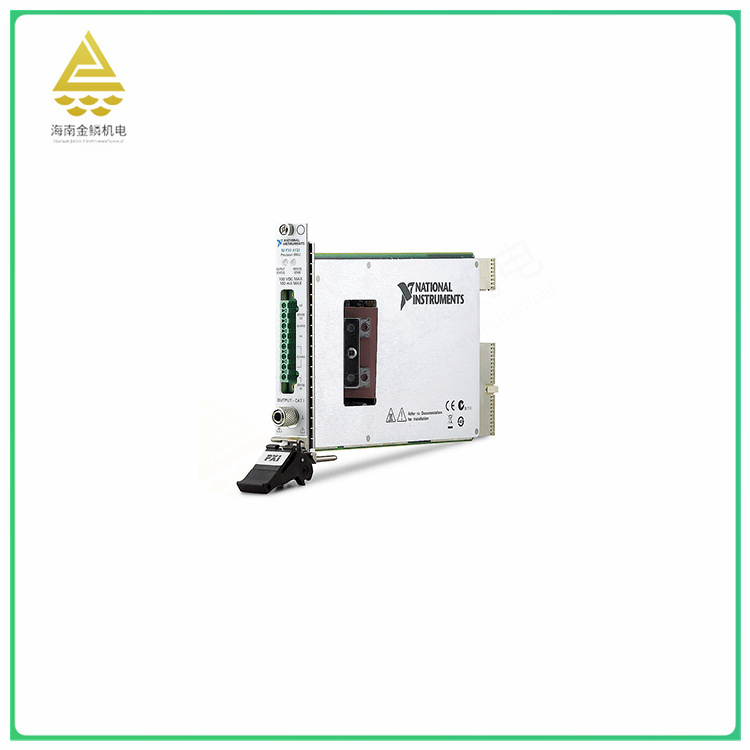

The PXIe-4132 is a high-performance, high-precision source measurement unit (SMU) with programmable voltage and current outputs. It offers an output voltage of up to ±100V and an output current of up to ±10mA, with a measurement sensitivity of up to 10 pA and a typical sensitivity of 100 pA. In addition, the PXIe-4132 features four-quadrant operation, ±100V output combined with remote (4-wire) sensing, capable of sending and absorbing up to 2 W of maximum power.
In terms of applications, the PXIe-4132 is suitable for high-precision leakage measurement of integrated circuits, discrete components, PCBS and cables. In addition, it can perform high-speed I-V measurements of various components, including diodes and organic leds, using an onboard hardware sequence engine. The PXIe-4132 can also be triggered via the PXI backplane for high-speed I-V measurements of transistors and more complex devices.
Overall, the PXIe-4132 is a high-performance, high-precision source measurement unit suitable for a variety of applications requiring accurate voltage and current control and high-precision measurement.
The PXIe-4132 is mainly suitable for the following applications:
Integrated Circuit Testing: The high accuracy and programmability of the PXIe-4132 make it ideal for integrated circuit testing, especially for high voltage and current testing requirements.
Discrete component and PCB testing: For the testing of discrete components and printed circuit boards (PCBS), the PXIe-4132 can also provide accurate voltage and current outputs to ensure performance and reliability.
Cable testing: In cable testing, the PXIe-4132's high accuracy and programmability also make it ideal for testing various cable performance.
High-speed I-V measurements: The PXIe-4132 has an onboard hardware sequence engine that can quickly perform high-speed I-V measurements for a variety of applications requiring high-speed measurements.
Complex device testing: Triggered by the PXI backplane, the PXIe-4132 can perform high-speed I-V measurements on transistors and more complex devices, making it suitable for testing a variety of complex devices.
In summary, the PXIe-4132 is a high-performance, high-precision source measurement unit suitable for a variety of applications requiring accurate voltage and current control and high-precision measurement.
