R900704216 Product Description
Product Overview

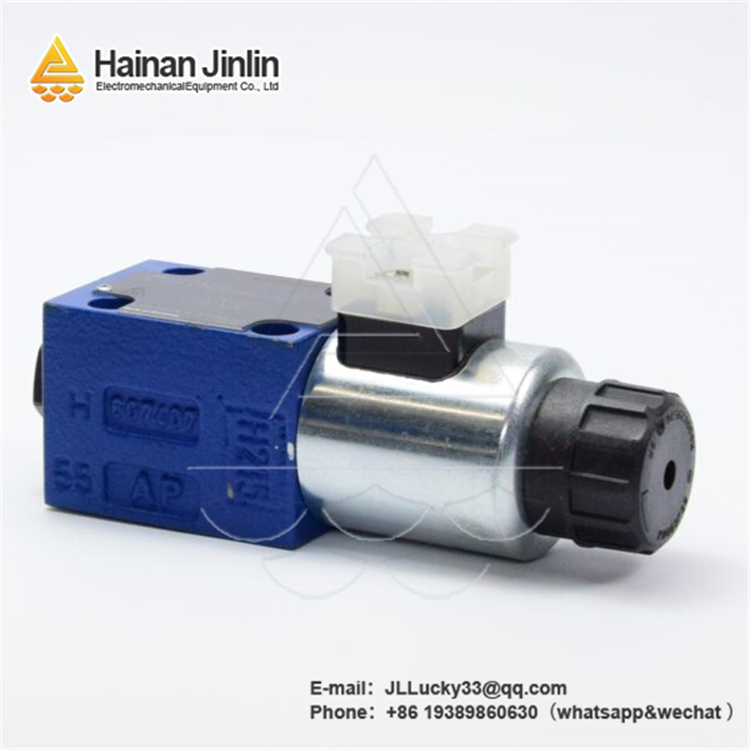

The R900704216 is a high-performance proportional valve solenoid, a critical component in industrial fluid control systems that enables precise regulation of flow rates and pressures. Engineered for reliability and accuracy, this solenoid is designed to work seamlessly with proportional valves, converting electrical signals into precise mechanical movements to adjust valve positions. The R900704216 features a compact, robust design that ensures stable operation in demanding industrial environments, including those with high vibration, temperature fluctuations, and exposure to hydraulic fluids or lubricants. Its advanced coil design and magnetic circuit optimization deliver consistent force output, making it an essential component for applications requiring fine-tuned fluid control, such as in manufacturing machinery, hydraulic systems, and automated production lines.
Hainan Jinlin Mechanical & Electrical, a distributor of industrial control products, offers the R900704216 with adherence to the "Customer First, Forge Ahead" business philosophy, providing exceptional customer service.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
R900704216
|
|
Product Type
|
Proportional Valve Solenoid
|
|
Rated Voltage
|
24V DC
|
|
Current Consumption
|
1.5A (max)
|
|
Force Output
|
50N (at rated voltage)
|
|
Operating Temperature Range
|
-20°C to 100°C
|
|
Duty Cycle
|
100% continuous
|
|
Protection Class
|
IP65
|
|
Connector Type
|
M12 circular connector
|
Key Features and Benefits
Precise Force Control
The R900704216 delivers highly accurate force output, directly proportional to the input electrical signal. This precision allows for fine adjustments of valve positions, ensuring exact control over fluid flow rates and pressures in hydraulic or pneumatic systems. In applications such as injection molding machines, where precise pressure control is critical for product quality, the R900704216 ensures consistent performance, reducing waste and improving production efficiency. Its linear response to input signals also simplifies system calibration, making it easy to integrate into closed-loop control systems.
High Thermal Stability
Designed to operate in temperatures ranging from -20°C to 100°C, the
R900704216 maintains stable performance even in extreme thermal conditions. Its coil is encapsulated with high-temperature-resistant materials that prevent overheating during continuous operation, ensuring a long service life. This thermal stability is particularly valuable in industrial environments such as steel mills or foundries, where ambient temperatures are high, and equipment reliability is paramount.
Robust Environmental Protection
With an IP65 protection rating, the R900704216 is resistant to dust, water jets, and other contaminants commonly found in industrial settings. This rugged design ensures reliable operation in dirty or wet environments, such as washing machines in automotive manufacturing or outdoor hydraulic systems. The M12 circular connector provides a secure, sealed connection, further preventing moisture or debris from entering the solenoid, reducing the risk of electrical failures and unplanned downtime.
Energy Efficiency
The R900704216 is engineered for low power consumption, operating at a maximum current of 1.5A at 24V DC. This efficiency reduces energy costs and minimizes heat generation, contributing to a longer service life. In battery-powered or energy-sensitive applications, such as mobile hydraulic equipment, this low power draw extends operational time between charges or reduces the load on on-board generators.
Easy Integration
Featuring a compact design and standard M12 connector, the R900704216 is easy to install and integrate into existing valve assemblies. Its standardized dimensions ensure compatibility with a wide range of proportional valves, eliminating the need for custom adapters. The solenoid’s lightweight construction (approximately 250g) also simplifies mounting, reducing stress on valve bodies and associated components. This ease of integration makes it a cost-effective choice for both new installations and retrofits.
Related Models
- R900704217 – A high-voltage variant designed for 110V DC systems, suitable for industrial setups with higher voltage requirements.
- R900704215 – A low-force model with a 30N output, ideal for applications requiring lighter valve actuation, such as precision pneumatic controls.
- R900704218 – Features enhanced vibration resistance (up to 20g), designed for use in mobile machinery or high-vibration environments like construction equipment.
- R900704219 – Equipped with a built-in feedback sensor to monitor force output, enabling closed-loop control for ultra-precise applications.
- R900704220 – A corrosion-resistant version with a stainless-steel housing, suitable for use in marine or chemical processing environments.
- R900704221 – A fast-response model with a rise time of <5ms, optimized for dynamic applications requiring rapid valve adjustments.
As a certified partner of industry leaders such as Bentley Nevada, Honeywell, and ABB, we provide the
R900704216 for various application areas. In manufacturing, it is used in hydraulic presses, injection molding machines, and automated assembly lines. In mobile equipment, it contributes to the control of construction machinery and agricultural vehicles. In industrial automation, it plays a role in regulating fluid flow in cooling systems and material handling equipment. We offer a one-year warranty for the
R900704216. If you cannot find the model you need, please contact us immediately.
