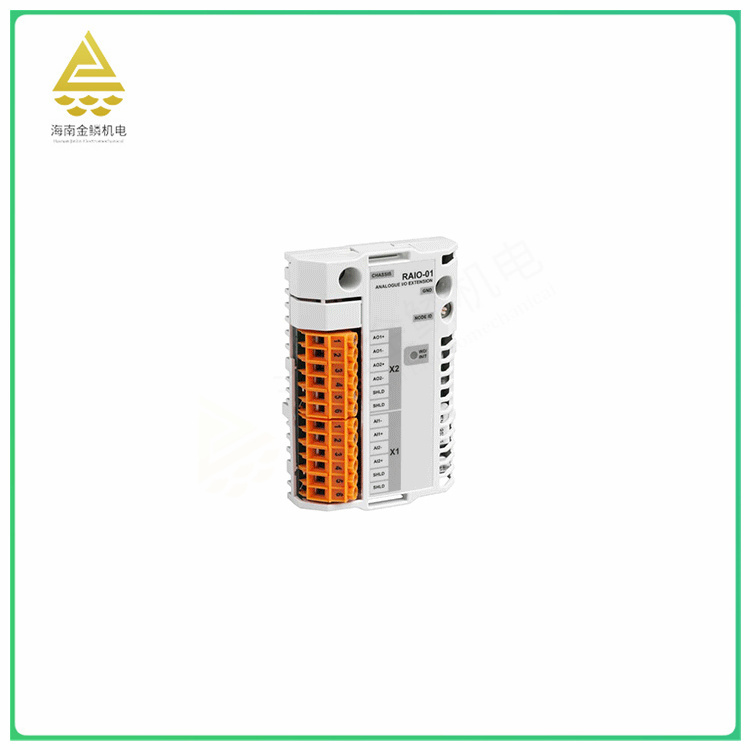

The RAIO-01 is an analog I/O expansion module that provides bipolar current and voltage inputs as well as unipolar current outputs with a resolution of 12 bits. It has hardware Settings and rotation switches for selecting node ids, and a DIP switch for each input to choose between bipolar and unipolar modes. In addition, the RAIO-01 is available in specifications such as up to two 6-pole non-removable screw type terminal boards and 2.5 square mm wire. The module has an analog output with an inaccuracy of 0.5% (full scale) and a temperature coefficient of up to 100 ppm/°C, as well as parameters such as maximum load resistance, resolution, power consumption, and life. In addition, the RAIO-01's analog output signal type is 0 (4). 20 mah, with a maximum power consumption of 0.024% (12-bit) and 100 mah (5 volts).
In summary, the RAIO-01 is a powerful and stable analog I/O expansion module suitable for a variety of application scenarios requiring analog signal input and output.
The RAIO-01 is an analog I/O expansion module with the following features:
Provides bipolar current and voltage input and unipolar current output.
Has hardware setup and rotation switch for selecting node ID.
Each input has a DIP switch to choose between bipolar and unipolar modes.
Features up to two 6-pole non-removable screw type terminal boards and 2.5 square mm wires.
Advantages and disadvantages of RAIO-01:
Provides flexible analog signal input and output capabilities for applications requiring analog signal processing and output.
With hardware setting and rotation switch, convenient for users to configure and operate.
With high precision and stability, it can ensure the accuracy and stability of the signal.
Disadvantages:
For large-scale and complex applications, more modules and configurations may be required, increasing the complexity and cost of the system.
In some specific application scenarios, there may be compatibility problems with other devices.
For applications that require high bandwidth and high-speed data transmission, the RAIO-01 may not meet the demand.
In summary, the functions and advantages and disadvantages of RAIO-01 depend on specific application requirements and usage scenarios.
