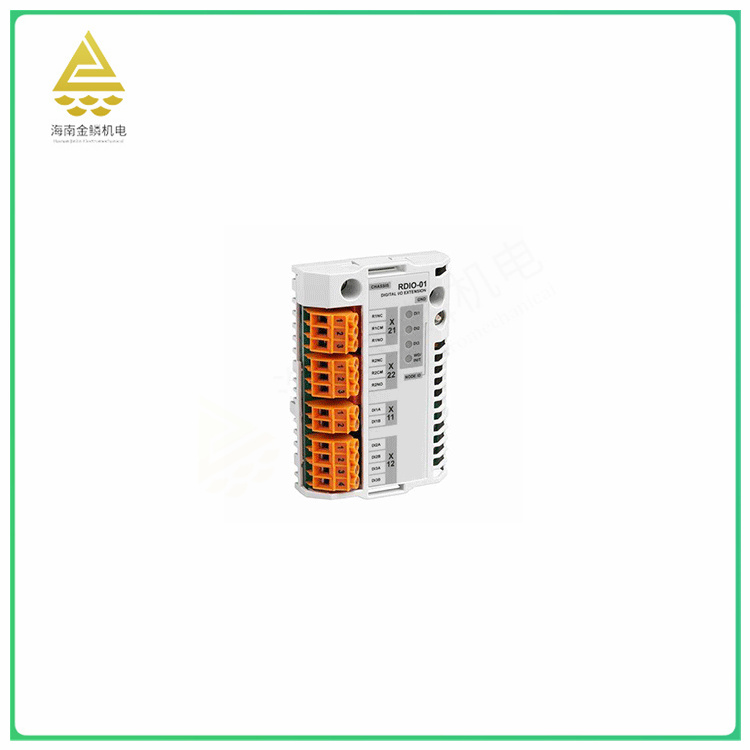

The RDIO-01 is a digital input/output expansion module with the following features:
Digital I/O Extended input: The module has a digital I/O extended input of 24 to 250 volts DC or 110 to 230 volts AC to meet the needs of different voltage ranges.
Relay output: The module has two relay outputs with an output voltage of 1250VA/250 volts AC or 5A/24 volts DC.
High insulation voltage: The insulation voltage between the digital input, digital output and the power supply is 2.5 kV (1.5 kV between DI3 and DI2), ensuring the safe operation of the module.
Module layout: The module has a module layout diagram, which is convenient for users to understand the layout and wiring mode of the module.
Installation and use: The user manual provides detailed steps and precautions for installing and using the module, facilitating operation and maintenance.
In summary, the RDIO-01 is a full-featured, easy-to-use, secure and reliable digital I/O expansion module for a variety of application scenarios requiring digital I/O expansion.
Here are some possible application scenarios:
Industrial automation control: In the field of industrial automation control, the RDIO-01 module can be used to expand digital input and output signals to achieve remote control and monitoring of equipment. For example, the module can play a key role in the application of equipment control on the production line, monitoring and control of automated assembly lines, etc.
Smart home systems: In smart home systems, the RDIO-01 module can be used to expand digital input and output signals to achieve intelligent control and automation of home devices. For example, the remote control and timing control of lighting, air conditioning, curtains and other home equipment can be realized through the module.
Data acquisition and monitoring system: In the data acquisition and monitoring system, the RDIO-01 module can be used to expand the digital input and output signals to achieve the acquisition and control of various analog signals. For example, in the monitoring and control of power system, environmental monitoring and other fields, the module can be used to achieve remote data acquisition and real-time monitoring functions.
Automated test equipment: In automated test equipment, the RDIO-01 module can be used to expand the digital input and output signals to achieve the control and monitoring of the test equipment. For example, in the automated testing of electronic products, the module can be used to achieve functions such as input and output control of test signals.
