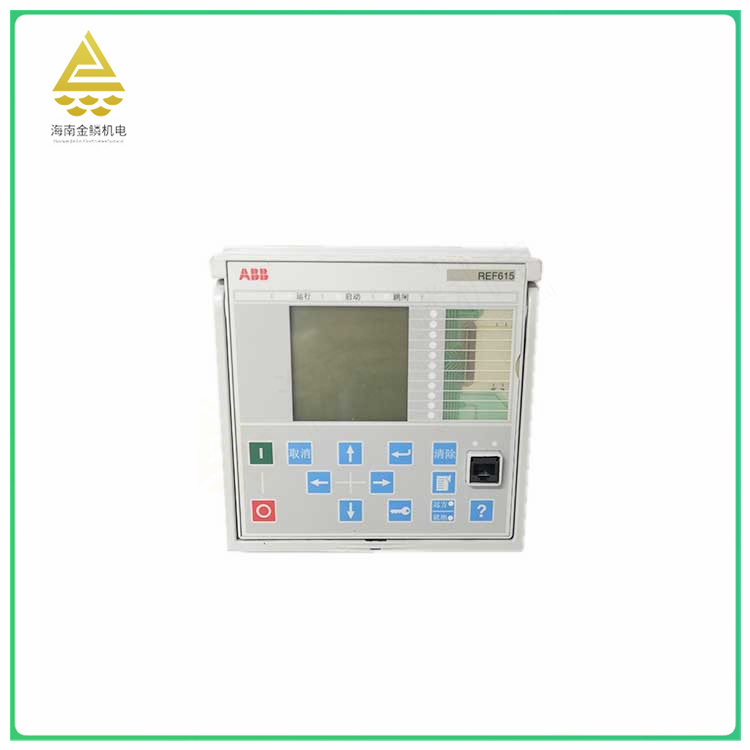

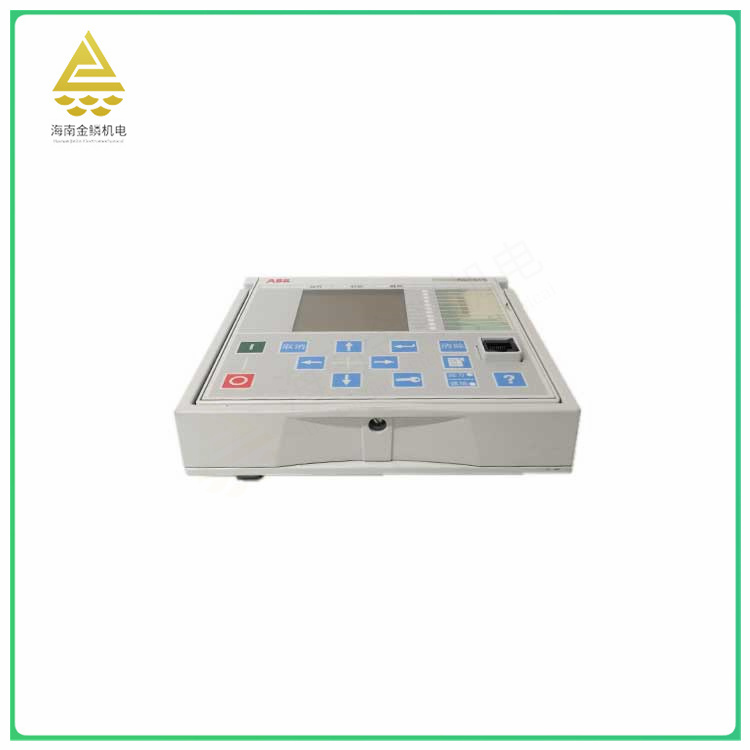

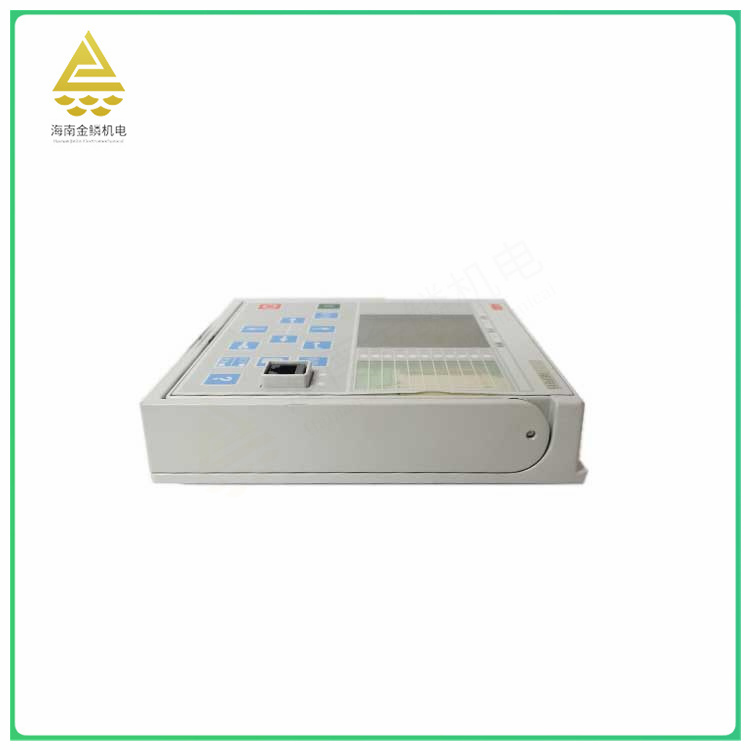

The REF615 is a feeder protection measurement and control device designed for the protection, control, measurement and monitoring of substations and industrial distribution network systems. It can be used in radiant, ring or network distribution networks to support systems with distributed generators. The REF615 is a member of the 615 Protection Measurement and Control Device family in the ABBRelion® product family.
Protection, control, monitoring and management integrated in a single relay protection unit provides a compact and versatile solution for public and industrial distribution systems
● Has a wide range of protection and control functions, can be used with sensors or traditional CT.PT
● With pre-configured standard configuration, so that it can be combined faster and easier to meet the different application needs of users
● Pluggable design for quick installation and testing
● Large LCD screen with single-line chart display, accessible locally or through an HMI that is easy to connect and browse
● Thoughtful product life cycle service
The REF615 is a feeder protection measurement and control device with functions and features including:
Multiple protection functions: REF615 can provide a variety of protection functions, including overcurrent, overload, short circuit, ground fault, overvoltage, undervoltage, overfrequency, underfrequency, etc., to meet different protection needs, and carry out comprehensive and effective fault detection and protection for power equipment.
High-speed circuit breaker control: The REF615 can quickly detect fault signals and control the opening and closing of circuit breakers to achieve rapid fault isolation and protect the safe operation of power equipment and the grid.
Accurate protection measurement: The REF615 uses high-precision digital signal processing technology to accurately measure current, voltage and other signals to ensure the accuracy and reliability of protection.
User-friendly interface: The REF615 has a very user-friendly interface that includes a display, buttons, LED indicators, and communication ports. Users can set parameters, view status, and control operations on the interface.
Cross-phase protection: The REF615's built-in cross-phase protection function can quickly cut off the circuit in the event of an inter-phase short circuit to avoid an extended accident.
Frac fatigue protection: The REF615 features advanced frac fatigue protection to monitor the operating status of equipment in real time and prevent damage caused by overload.
Undervoltage protection: The REF615 monitors the undervoltage situation of the grid and takes timely measures to protect the safe operation of equipment and systems.
These features make the REF615 widely used in substations, industrial distribution systems, and systems containing distributed generators, providing efficient and reliable protection, control, and monitoring.
