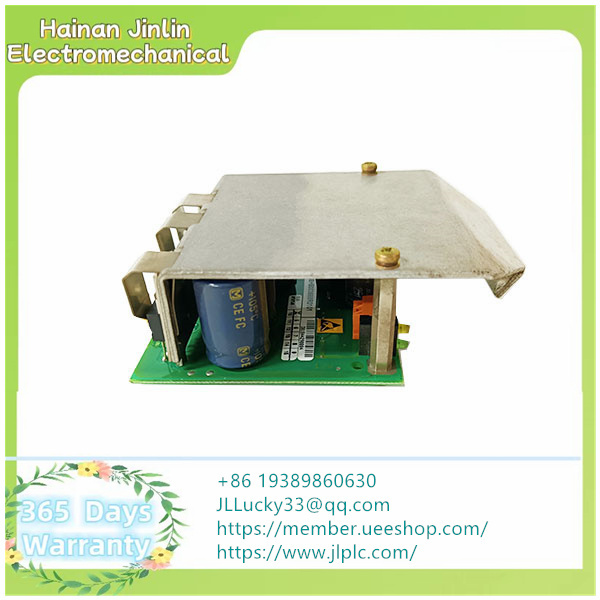

Model: S-073N 3BHB009884R0021
Category: High voltage inverter
Quality: New, not new
Warranty: 365 days
Stock: Yes
Brand: ABB
S-073N 3BHB009884R0021 High Voltage inverter is a power electronic device used to change the frequency and amplitude of AC motor supply. It can control the speed of the motor by changing the power supply frequency of the motor, so as to realize the speed regulation and energy saving of the motor. The application range of high voltage inverter is very wide, including power, metallurgy, petroleum, chemical, cement, elevator and other industries.
A high-voltage inverter is a power electronic device used to change the frequency and amplitude of the AC motor supply. It can control the speed of the motor by changing the power supply frequency of the motor, so as to realize the speed regulation and energy saving of the motor.
S-073N 3BHB009884R0021 The basic structure of the high voltage inverter includes four parts: rectifier, intermediate DC link, inverter and controller. The rectifier converts the input AC into DC, the intermediate DC link is used to smooth the DC, the inverter converts the DC into AC with adjustable frequency and amplitude, and the controller is used to control the operation of the inverter.
S-073N 3BHB009884R0021 During the operation of the HV inverter, the controller generates the corresponding control signal according to the set frequency and amplitude requirements, converts the control signal into the modulated wave through the modulated wave generator, and then loads the modulated wave to the power semiconductor device of the inverter through the drive circuit. The power semiconductor device will produce the corresponding switching action under the action of the modulating wave, and convert the direct current into the alternating current with adjustable frequency and amplitude, so as to realize the speed regulation and energy saving of the motor.
ACS2000 High Voltage inverter how to change the phase module. It can be connected directly to the grid, you can also connect to the grid via a separate double-winding transformer or integrated transformer and is suitable for direct grid connection or with input isolation transformer applications
Bit diodes 01, 02, absorption diodes 03, 04, absorption capacitance (:1, 02.
[0031] Among them, the three-level circuit composed of power components is shown in Figure 1. Four IGCT T1, T2, T3 and T4 are successively connected between the anode of the dry absorption diode D3 and the anode of the absorption diode D4. The anode of the absorption diode D3 is successively connected to the cathode of the absorption diode D4 through the absorption capacitor CI and C2. Clamping diode DI cathode electricity
It is connected to the nodes between IGCT T1 and T2, and the anode of the pin position diode DI is electrically connected to the dry absorbing capacitors C1 and C2
Between the nodes, the anode of the clamping diode D2 is electrically connected to the IGCT between T3 and T4
