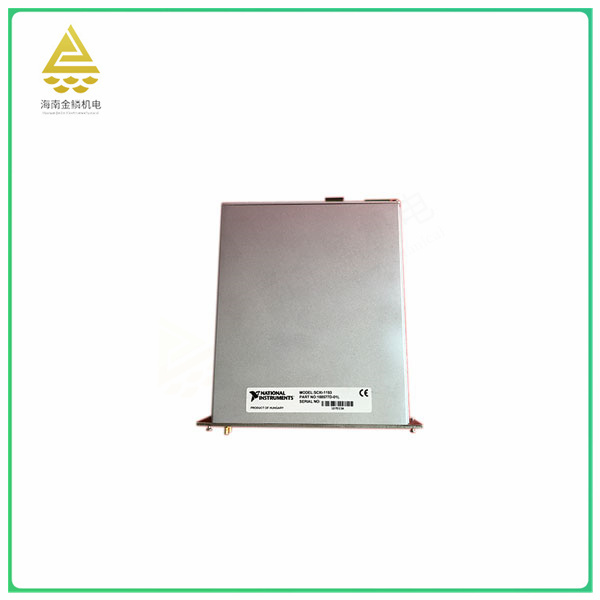

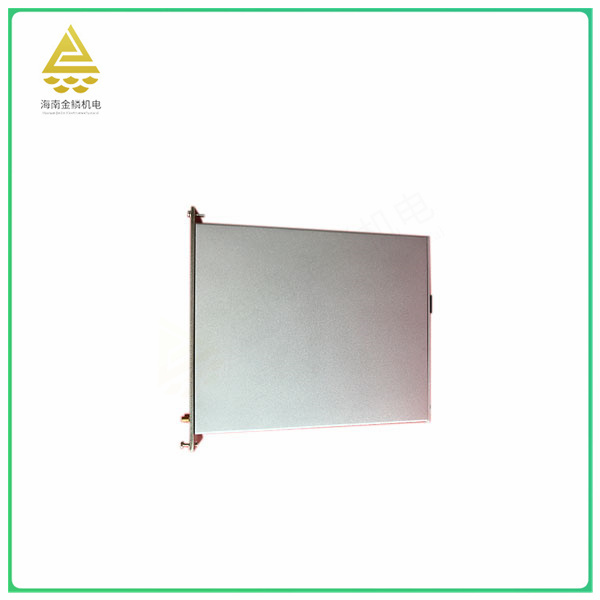

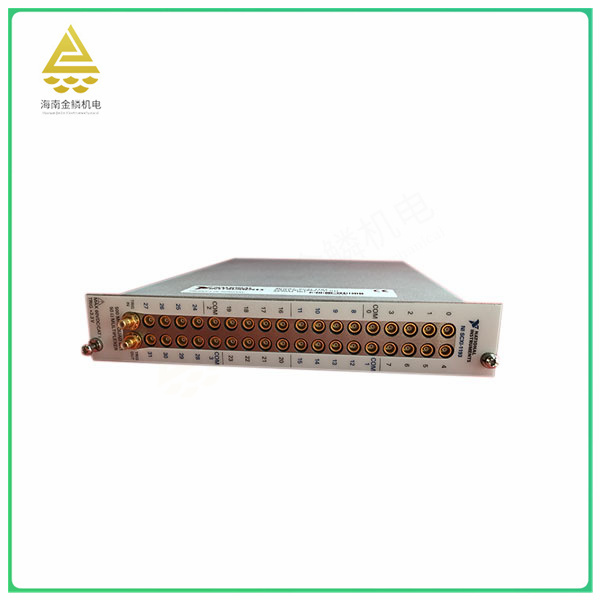

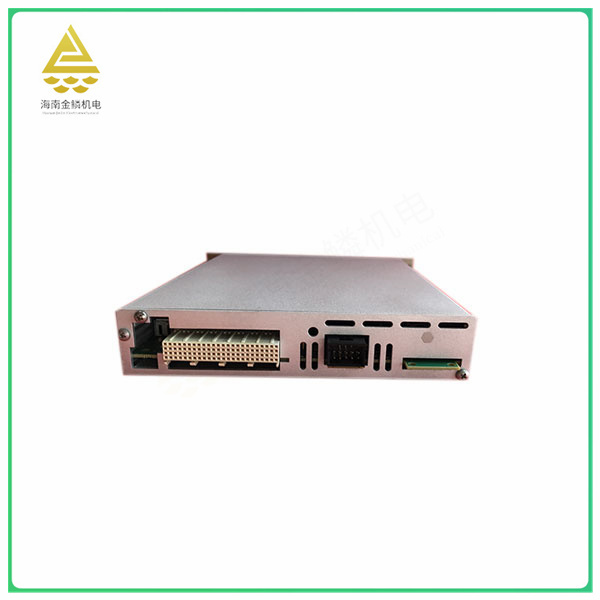

The SCXI-1193 is a high-density RF relay module from NI that can be used in a variety of different cable types, such as MCX-MCX cable, MCX-BNC cable, MCX-SMB cable or MCX-SMA cable. It has a variety of topologies, such as four-way 8 x 1 multiplexer, four-way 4 x 1 end multiplexer, dual-way 16 x 1 multiplexer, dual-way 8 x 1 end multiplexer, 32 x 1 multiplexer, 16 x 1 end multiplexer and independent modules, etc. It can be flexibly configured as an unterminated multiplexer, an externally terminated multiplexer, or a sparse matrix with flexible dimensions.
This nickel SCXI-1193(Part number :776572-93) is high-density, 32-channel RF multiplexing
The multiplexer switch module can be arranged as an unterminated multiplexer or an externally terminated multiplexer
A sparse matrix whose dimensions are generic. Each configuration can withstand from DC to 500 MHz
On the signal frequency. The module has a slot for a lix density propulsion MCX connection
Connectors perform discrete but manageable wiring. The module cannot direct the signal to high voltage simulation
The bus. This SCXI-1193 was created for integration with high frequency devices, including the PXI-5
404 frequency generator and PXI-5112 high speed digitizer.
