Model: SCXI-1346
Category: Cable adapters
Finish: New, not new
Stock: Yes
Warranty: One year
Brand: NI

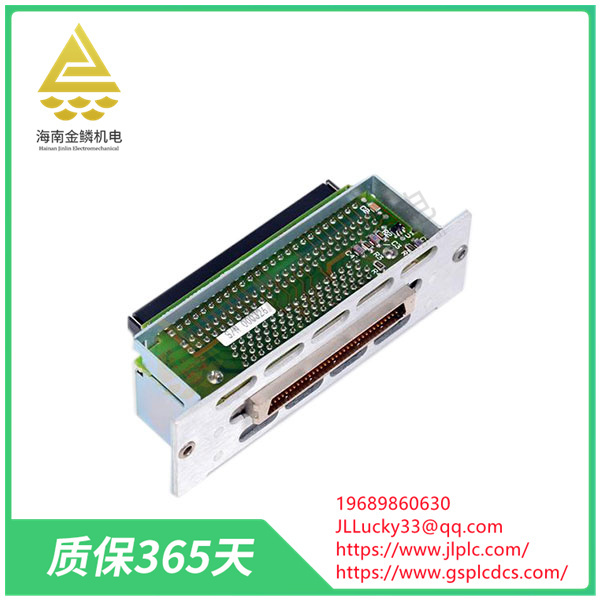

The SCXI-1346 (Part number: 776574-46) is suitable for applications involving multi-chassis SCXIS, as it can connect them to a single DAQ device. This cable adapter has two cable connections. One connection is used for the signal from the digitizer or the front SCXI chassis, while the second connection is used to route the digitizer signal to the subsequent chassis. SH68-68-EP (Part No. : 184749-01,1 m cable; 184749-02,2 m cable; 184749-05,5 m cable; Or 184749-10, 10 m cable) can be purchased separately and used with the NI SCXI 1346. This cable adapter has a mounting bracket for reliable connection to the SCXI chassis.
The SCXI 1346 has four connectors. The first connector is a 68-pin male connector on the front panel, printed To Next Chassis. The next connector is another 68-pin male connector on the front panel, printed From the DAQ Board or Previous Chassis. The third connector is a 50-pin cm wire connector on a printed circuit board. The last connector is also a 50-pin connector, but a bracket female head mounted on the back of the cable adapter.
A multi-case cable adapter is a type of cable adapter used to connect multiple cases or devices. It usually consists of multiple plugs and sockets that can connect different cables together to enable communication and data transfer between devices.
SCXI-1346 multi-chassis cable adapter is commonly used in computer networks, data centers, industrial automation and other fields. They can provide high-speed, reliable connections to guarantee stable communication between devices.
There are many types of SCXI-1346 multi-chassis cable adapters, including Ethernet adapters, optical fiber adapters, RS-232 adapters, etc. Different types of multi-chassis cable adapters have different characteristics and application scenarios. You can select a suitable multi-chassis cable adapter according to your specific requirements.
