Product Overview

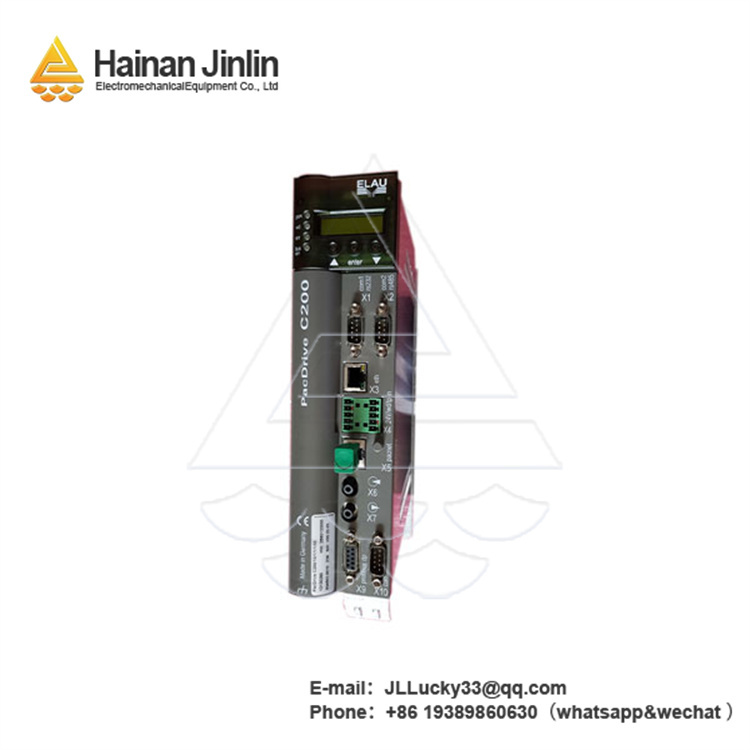

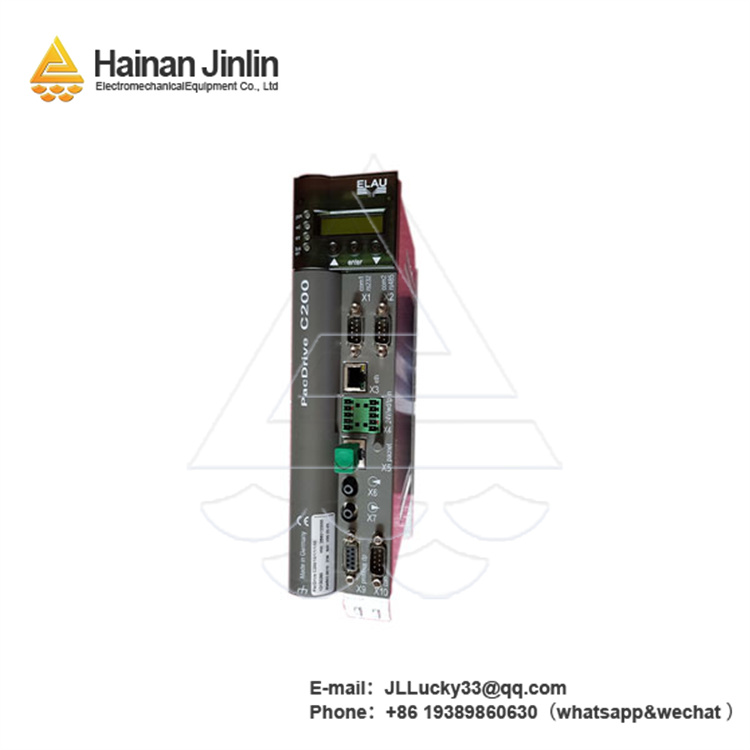

The ELAU C2001011100 is a high-performance servo controller module designed to deliver precise motion control in industrial automation systems, particularly in Schneider Electric’s Lexium and PacDrive product lines. This module serves as a critical component in servo drive systems, regulating motor speed, torque, and position with exceptional accuracy, making it ideal for applications in packaging machinery, robotics, and CNC machining. Core features of the ELAU C2001011100 include advanced servo algorithms, multi-axis synchronization, and seamless integration with PLCs and HMI systems, ensuring smooth operation in high-speed production environments. Its rugged construction withstands industrial conditions such as vibration, temperature fluctuations, and electrical noise, while its compact design allows for space-efficient installation in control cabinets. Whether controlling conveyor systems, robotic arms, or precision manufacturing equipment, the ELAU C2001011100 delivers consistent performance, enhancing production precision and reducing cycle times.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
|
|
Manufacturer
|
ELAU (Schneider Electric)
|
|
Product Type
|
Servo Controller Module
|
|
Power Requirement
|
24V DC ±10%
|
|
Control Axes
|
Up to 4 axes (configurable)
|
|
Maximum Output Current
|
10A (continuous), 20A (peak)
|
|
Communication Protocol
|
CANopen, Ethernet/IP, Modbus TCP
|
|
Operating Temperature
|
0°C to 55°C
|
|
Positioning Accuracy
|
±0.01 mm (with encoder feedback)
|
Key Features and Benefits
The
ELAU C2001011100 stands out for its precision motion control capabilities and seamless integration, making it a top choice for demanding industrial applications. Equipped with advanced servo algorithms, it ensures high dynamic response, allowing motors to accelerate, decelerate, and change direction with minimal overshoot—critical for tasks requiring precise positioning, such as label application in packaging or component insertion in electronics manufacturing.
A key advantage of the
ELAU C2001011100 is its multi-axis synchronization, which enables coordinated movement of up to 4 axes with microsecond-level timing accuracy. This synchronization is essential for complex processes like robotic assembly lines, where multiple motors must operate in perfect harmony to ensure product quality and throughput.
Connectivity is a major strength, with support for industry-standard protocols like CANopen and Ethernet/IP, enabling easy integration with PLCs, HMIs, and machine vision systems. This interoperability allows for centralized control, real-time performance monitoring, and remote diagnostics, reducing downtime and simplifying system management.
Built with industrial-grade components, the ELAU C2001011100 offers robust protection features, including overcurrent, overvoltage, and thermal overload protection, safeguarding both the controller and connected motors from damage. Its compact design saves space in control cabinets, while its modular architecture allows for easy maintenance and upgrades. Backed by a one-year warranty and Schneider Electric’s technical support network, the ELAU C2001011100 provides long-term reliability and peace of mind for motion control systems.
Related Models
- ELAU C2001011101 – Enhanced version of the ELAU C2001011100 with support for 8 axes, ideal for large-scale automation systems.
- ELAU C2001011000 – Entry-level model with reduced output current (5A continuous), suitable for lighter-load applications.
- ELAU C2001011100-EX – Explosion-proof variant, certified for use in Zone 2 hazardous areas such as chemical processing facilities.
- ELAU D2001011100 – Redundant servo controller designed to operate in parallel with the ELAU C2001011100 for fault-tolerant systems.
- ELAU M2001011100 – Motor feedback module optimized for use with the ELAU C2001011100 to enhance positioning accuracy.
- ELAU C1001011100 – Previous generation of the ELAU C2001011100 with limited protocol support and lower processing speed.
We provide professional pre-sales consultation to help integrate the
ELAU C2001011100 into your motion control system, including compatibility checks with motors and control infrastructure. Our after-sales services cover installation, calibration, and troubleshooting. All products include a one-year warranty. For models not listed or further inquiries, contact us via WhatsApp: [
