Product Overview

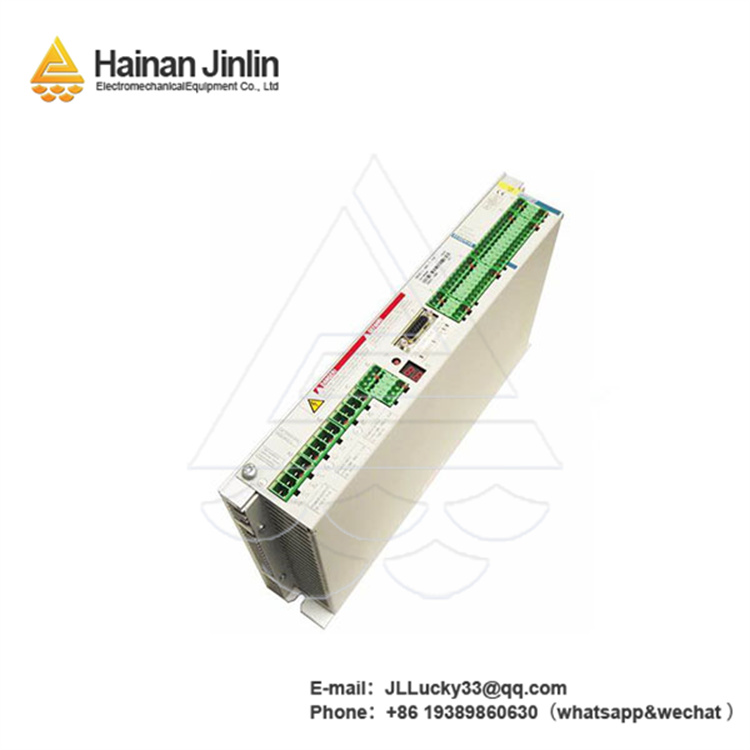

The AL132DKC11.1-040-7-FW is a high-performance servo drive, meticulously engineered to deliver precise motion control in a wide range of industrial automation applications. This drive integrates advanced control algorithms with robust hardware design, making it a critical component for powering and regulating servo motors in complex machinery.
The AL132DKC11.1-040-7-FW is designed to provide accurate speed, torque, and position control, ensuring smooth and efficient operation of servo motors. Whether deployed in robotic systems, CNC machine tools, packaging equipment, or automated assembly lines, the AL132DKC11.1-040-7-FW delivers consistent and reliable performance. Its ability to adapt to varying load conditions and maintain precise control, combined with its durable construction, makes the AL132DKC11.1-040-7-FW a trusted choice for engineers and operators seeking high-quality motion control solutions.
Hainan Jinlin Mechanical & Electrical, as a reputable distributor of industrial control products, is proud to offer the AL132DKC11.1-040-7-FW. Guided by the "Customer First, Forge Ahead" business philosophy, we are dedicated to providing top-notch customer service to meet your specific requirements.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
AL132DKC11.1-040-7-FW
|
|
Manufacturer
|
Bosch Rexroth
|
|
Product Type
|
Servo Drive
|
|
Rated Current
|
40 A
|
|
Input Voltage
|
3-phase AC 380 - 480 V
|
|
Control Mode
|
Position, Speed, Torque
|
|
Communication Interface
|
PROFINET, EtherCAT
|
|
Operating Temperature
|
0°C - 40°C
|
|
Protection Rating
|
IP20
|
Key Features and Benefits
Multi-Mode Control Flexibility
The AL132DKC11.1-040-7-FW supports three primary control modes: position, speed, and torque. This versatility allows it to adapt to diverse application requirements, from high-precision positioning in CNC machining to constant torque control in material handling systems. Users can easily switch between modes via software configuration, ensuring optimal performance for specific tasks.
High Dynamic Response
Equipped with advanced current loop and velocity loop control algorithms, the
AL132DKC11.1-040-7-FW offers exceptional dynamic response. It can quickly adjust to changes in load or command signals, minimizing overshoot and settling time. This feature is crucial in high-speed automation processes, such as pick-and-place operations, where rapid and precise movements are essential.
Seamless Communication Integration
With built-in PROFINET and EtherCAT interfaces, the AL132DKC11.1-040-7-FW enables seamless integration into industrial communication networks. It supports real-time data exchange with higher-level control systems, facilitating remote monitoring, parameterization, and diagnostics. This connectivity enhances system visibility and simplifies integration into Industry 4.0 environments.
Robust Protection Mechanisms
The servo drive incorporates comprehensive protection features, including overcurrent, overvoltage, undervoltage, overtemperature, and short-circuit protection. These mechanisms safeguard both the drive and connected motor from damage under abnormal operating conditions, reducing downtime and maintenance costs. The robust design ensures reliable operation even in harsh industrial environments.
Energy Efficiency
The AL132DKC11.1-040-7-FW is designed with energy-saving features, such as regenerative braking and optimized power conversion. Regenerative energy from decelerating motors is fed back into the power grid, reducing overall energy consumption. This efficiency not only lowers operational costs but also aligns with sustainable manufacturing practices.
Related Models
- AL132DKC11.1-020-7-FW – Similar to the AL132DKC11.1-040-7-FW but with a lower rated current of 20 A, suitable for smaller servo motors and lighter load applications.
- AL132DKC11.1-060-7-FW – A higher-capacity variant with a rated current of 60 A, designed for larger motors and heavier load scenarios compared to the AL132DKC11.1-040-7-FW.
- AL132DKC11.1-040-7-FW/EX – Features enhanced explosion-proof certification, making it suitable for hazardous environments such as chemical plants, unlike the standard AL132DKC11.1-040-7-FW.
- AL132DKC11.2-040-7-FW – An upgraded model with improved control algorithms for even higher precision, ideal for applications requiring ultra-accurate positioning compared to the AL132DKC11.1-040-7-FW.
- AL132DKC11.1-040-7-FW/B – A variant with additional I/O ports, providing greater flexibility for connecting external sensors and actuators than the AL132DKC11.1-040-7-FW.
As a certified partner of industry leaders, we provide key components for various application areas. In discrete manufacturing, the AL132DKC11.1-040-7-FW is widely used in automotive assembly lines to control robotic arms, ensuring precise welding and part handling. In the packaging industry, it regulates the motion of conveyor systems and filling machines, contributing to efficient and consistent packaging processes.
We offer a one-year warranty for the AL132DKC11.1-040-7-FW to ensure your peace of mind. Our professional pre-sales and after-sales service teams are always available to assist you with any inquiries or support needs. If you cannot find the model you require, please contact us immediately.
