Product Overview

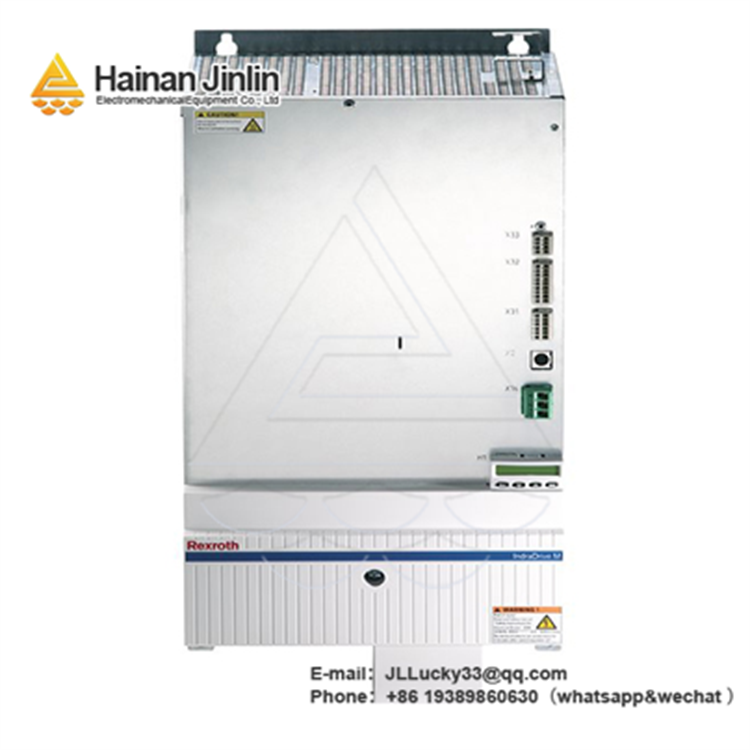

The HMV01.1R-W0120-A-07-NNNN is a high-performance industrial servo drive, engineered to deliver precise motor control in demanding automation applications. As a key component in industrial drive systems, this servo drive combines advanced power electronics with intelligent control algorithms to ensure smooth, accurate, and efficient motor operation. Whether integrated into machine tools, robotics, packaging equipment, or material handling systems, the HMV01.1R-W0120-A-07-NNNN excels at maintaining precise speed and position control, reducing energy consumption, and enhancing overall system productivity, making it an essential asset for industries that require high-precision motion control.
As a distributor of industrial control products, we are proud to offer the HMV01.1R-W0120-A-07-NNNN to our clients. Guided by the "Customer First, Forge Ahead" philosophy, we are committed to providing exceptional service to meet all your motion control needs.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
HMV01.1R-W0120-A-07-NNNN
|
|
Manufacturer
|
Bosch Rexroth
|
|
Product Type
|
Servo Drive
|
|
Input Voltage
|
380 - 480 VAC, 3-phase
|
|
Output Current
|
12 A (continuous), 24 A (peak)
|
|
Power Rating
|
7.5 kW
|
|
Control Modes
|
Position, speed, torque
|
|
Communication Interfaces
|
PROFINET, EtherCAT
|
|
Operating Temperature
|
0 to 40 °C (ambient)
|
|
Protection Rating
|
IP20
|
|
Dimensions
|
145 mm x 260 mm x 180 mm
|
Key Features and Benefits
Multi-Mode Control Flexibility: The
HMV01.1R-W0120-A-07-NNNN supports position, speed, and torque control modes, allowing seamless adaptation to diverse application requirements. This versatility makes it suitable for a wide range of industrial tasks, from high-precision positioning in CNC machining to constant-torque operations in material winding systems, ensuring optimal performance across different scenarios.
High Power Density: With a power rating of 7.5 kW and a compact form factor (145 mm x 260 mm x 180 mm), the HMV01.1R-W0120-A-07-NNNN offers exceptional power density. This space-saving design allows for easy integration into control cabinets with limited space, making it ideal for modular automation systems and compact machinery.
Advanced Communication Capabilities: Equipped with PROFINET and EtherCAT interfaces, the HMV01.1R-W0120-A-07-NNNN enables high-speed, real-time data exchange with PLCs, HMIs, and other networked devices. This connectivity facilitates precise synchronization of multi-axis systems, simplifies system configuration, and supports remote monitoring and diagnostics, enhancing operational efficiency and reducing downtime.
Efficient Energy Management: The servo drive incorporates advanced energy-saving features, such as regenerative braking and optimized switching frequencies, which minimize energy consumption. This efficiency not only reduces operational costs but also lowers heat generation, contributing to a longer service life and improved system reliability.
Robust Protection Mechanisms: The HMV01.1R-W0120-A-07-NNNN is equipped with comprehensive protection functions, including overcurrent, overvoltage, undervoltage, overtemperature, and short-circuit protection. These mechanisms safeguard both the drive and connected motors from damage, ensuring safe operation even in challenging industrial environments.
Related Models
- HMV01.1R-W0240-A-07-NNNN – An upgraded version of the HMV01.1R-W0120-A-07-NNNN with a higher output current (24 A continuous, 48 A peak) and power rating (15 kW), suitable for larger motors and high-power applications.
- HMV01.1R-W0060-A-07-NNNN – A lower-power variant of the HMV01.1R-W0120-A-07-NNNN with an output current of 6 A (continuous) and 3 kW power rating, ideal for small-scale automation systems and precision instruments.
- HMV01.1R-W0120-B-07-NNNN – A variant of the HMV01.1R-W0120-A-07-NNNN with additional communication protocols (Modbus TCP/IP), offering enhanced compatibility with legacy control systems.
- HMV01.2R-W0120-A-07-NNNN – A dual-axis version of the HMV01.1R-W0120-A-07-NNNN, designed to control two motors simultaneously, reducing cabinet space and simplifying wiring in multi-axis applications.
- HMV01.1R-W0120-A-07-NNNK – A ruggedized version of the HMV01.1R-W0120-A-07-NNNN with an extended operating temperature range (-10 to 50 °C), suitable for harsh environments such as food processing or outdoor installations.
- HMV01.1R-W0120-A-08-NNNN – A model with advanced diagnostic features compared to the HMV01.1R-W0120-A-07-NNNN, including predictive maintenance algorithms and detailed fault logging for proactive system management.
As a certified partner of industry leaders, we supply the HMV01.1R-W0120-A-07-NNNN for a wide range of application areas. In discrete manufacturing, it is integral to CNC machine tools, robotic arms, and automated assembly lines, ensuring precise motion control for high-quality production. In packaging industries, it regulates conveyor speeds and positioning systems, optimizing packaging accuracy and throughput. In material handling, it powers automated guided vehicles (AGVs) and lifting equipment, enhancing operational efficiency and safety. We offer a one-year warranty for this product. If you need assistance finding the right model or require technical support, please contact us—our professional pre-sales and after-sales teams are ready to help.
