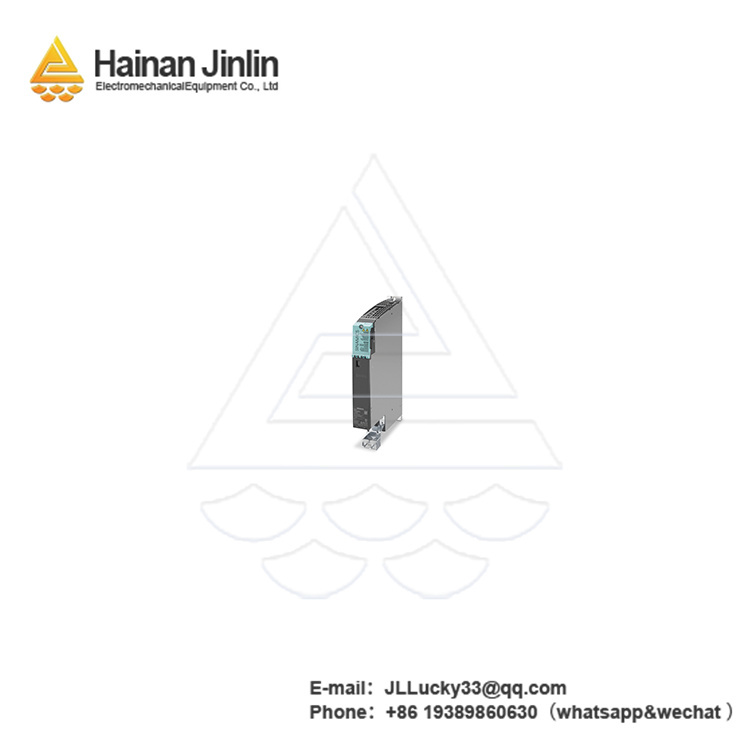

Product Overview
The Siemens 6SL3111-4VE21-6EA1 is a high-performance servo drive module designed for precise motion control in industrial automation systems, belonging to Siemens’ renowned Sinamics S120 family—a trusted solution for demanding motion applications. This module stands out for its exceptional dynamic response, energy efficiency, and seamless integration with Siemens’ PLCs and servo motors, making it ideal for applications requiring tight speed and position control. Whether deployed in automotive assembly lines, CNC machine tools, or packaging machinery, the Siemens 6SL3111-4VE21-6EA1 delivers consistent performance, supporting high torque output and rapid acceleration/deceleration to optimize production throughput. Its compact design and modular architecture simplify installation and system expansion, while built-in safety features ensure compliance with industrial safety standards. By leveraging Siemens’ expertise in motion control technology, the Siemens 6SL3111-4VE21-6EA1 provides the reliability and precision needed to enhance the productivity of discrete manufacturing and process automation workflows.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
Siemens 6SL3111-4VE21-6EA1
|
|
Manufacturer
|
Siemens
|
|
Product Type
|
Servo Drive Module (Sinamics S120 Series)
|
|
Rated Power
|
6 kW
|
|
Input Voltage
|
3-phase AC 380-480 V (50/60 Hz)
|
|
Output Current
|
14.5 A (continuous); 21 A (peak, 2s)
|
|
Control Mode
|
Position control, speed control, torque control
|
|
Operating Temperature Range
|
0°C to +40°C (ambient); -20°C to +70°C (storage)
|
|
Communication Protocol
|
PROFINET, PROFIBUS DP
|
|
Safety Function
|
STO (Safe Torque Off, SIL 2/PL d)
|
Key Features and Benefits
Exceptional Motion Control Precision
The Siemens 6SL3111-4VE21-6EA1 incorporates advanced vector control technology, enabling ultra-precise regulation of speed, position, and torque with minimal steady-state error. It supports high-resolution feedback (e.g., Siemens 1FK7 servo motors with absolute encoders), delivering position accuracy up to ±0.001 mm in CNC machining or robotic assembly applications. This precision is critical for industries like automotive manufacturing, where consistent part tolerances directly impact product quality. Additionally, the drive’s fast dynamic response (rise time < 10 ms) ensures rapid adjustment to load changes, preventing production delays caused by motion inconsistencies.
Energy Efficiency and Cost Savings
Engineered with Siemens’ Energy Optimization technology, the Siemens 6SL3111-4VE21-6EA1 minimizes energy consumption during operation. It features a regenerative braking function that feeds excess energy back to the power grid (when paired with a suitable regenerative module), reducing energy waste in applications with frequent deceleration (e.g., packaging conveyors or robotic pick-and-place systems). The drive also includes automatic torque optimization, which adjusts output torque based on load demand—lowering power usage during light-load conditions. Over time, these features translate to significant cost savings on energy bills, making the module a sustainable choice for long-term operations.
Robust Safety and Reliability
Safety is a core design element of the Siemens 6SL3111-4VE21-6EA1, which includes a built-in STO (Safe Torque Off) function certified to SIL 2 (per IEC 61508) and PL d (per EN ISO 13849-1). STO immediately cuts torque to the motor in emergency situations, preventing unintended motion and protecting operators and equipment. The drive also features comprehensive fault protection, including overcurrent, overvoltage, overtemperature, and short-circuit protection—alerting operators to issues via diagnostic LEDs or communication protocols to avoid damage. Its rugged construction (compliant with IEC 60529 IP20 for dust protection) ensures reliable operation in industrial environments, even with exposure to mechanical vibration (up to 5 g per IEC 60068-2-6).
Seamless System Integration
The Siemens 6SL3111-4VE21-6EA1 is fully compatible with Siemens’ industrial ecosystem, including SIMATIC PLCs (e.g., S7-1200/S7-1500), HMI panels, and TIA Portal engineering software. It supports PROFINET and PROFIBUS DP protocols, enabling real-time data exchange between the drive and control system—facilitating centralized monitoring and parameterization. TIA Portal integration simplifies drive configuration, allowing engineers to program, test, and commission the module within a single software environment, reducing setup time by up to 30% compared to non-integrated solutions. The drive also supports modular expansion, allowing users to add optional modules (e.g., additional safety functions or communication interfaces) to meet evolving application needs.
User-Friendly Maintenance and Diagnostics
To minimize downtime, the Siemens 6SL3111-4VE21-6EA1 includes intuitive diagnostic features accessible via TIA Portal, local LEDs, or a optional keypad. It provides real-time data on operating parameters (e.g., current, voltage, temperature) and logs fault codes with detailed descriptions, enabling quick troubleshooting. The drive’s hot-swap capability (when installed in a Sinamics S120 cabinet) allows replacement without shutting down the entire system—critical for 24/7 production lines. Additionally, Siemens offers global technical support and firmware updates, ensuring the drive remains compatible with new technologies and maintains optimal performance over its lifecycle.
Related Models
- Siemens 6SL3111-4VE21-3EA1 – Lower-power variant of the Siemens 6SL3111-4VE21-6EA1 (3 kW rated power) for light-duty motion applications.
- Siemens 6SL3111-4VE22-0EA1 – Higher-power upgrade of the Siemens 6SL3111-4VE21-6EA1 (10 kW rated power) for heavy-duty machinery.
- Siemens 6SL3111-4VE21-6EB1 – Climate-resistant version of the Siemens 6SL3111-4VE21-6EA1, operating at -10°C to +50°C for extreme temperature environments.
- Siemens 1FK7063-5AF71-1AG0 – Servo motor specifically designed for use with the Siemens 6SL3111-4VE21-6EA1, featuring a 6 kW rating and absolute encoder.
- Siemens 6SL3055-0AA00-5BA3 – Control unit required to configure and operate the Siemens 6SL3111-4VE21-6EA1 in Sinamics S120 systems.
- Siemens 6SL3100-1BE23-6AA0 – Regenerative module compatible with the Siemens 6SL3111-4VE21-6EA1 to enable energy feedback to the grid.
- Siemens 6SL3111-4VE21-6EA2 – Updated version of the Siemens 6SL3111-4VE21-6EA1 with enhanced PROFINET performance and additional diagnostic features.
- Siemens 6SL3120-1TE21-6AA3 – Single-axis inverter alternative to the Siemens 6SL3111-4VE21-6EA1 for simpler speed control applications.
Typical Application Areas
- Automotive Manufacturing: Used in robotic assembly lines (e.g., welding robots, paint robots) and CNC machining centers for precise part fabrication. The Siemens 6SL3111-4VE21-6EA1 ensures consistent motion control, enabling high-volume production of automotive components with tight tolerances.
- CNC Machine Tools: Integrated into milling machines, lathes, and grinders to control spindle speed and tool positioning. Its high dynamic response supports rapid tool changes and smooth cutting operations, improving machining efficiency and surface finish quality.
- Packaging Machinery: Deployed in horizontal form-fill-seal (HFFS) machines and labeling systems to control conveyor speed and packaging material alignment. The drive’s energy efficiency reduces operational costs, while its precision ensures accurate packaging of consumer goods.
- Material Handling: Used in automated guided vehicles (AGVs) and robotic palletizers to control motion speed and load positioning. The built-in STO function enhances safety in warehouse environments, preventing accidents during operator interaction.
- Aerospace and Defense: Applied in aircraft component manufacturing (e.g., turbine blade machining) where ultra-precise motion control is required. The drive’s reliability and compliance with strict industrial standards make it suitable for mission-critical applications.
As a certified partner of industry leaders such as Siemens, Bentley Nevada, and Honeywell, we provide professional pre-sales and after-sales service. We offer a one-year warranty for the Siemens 6SL3111-4VE21-6EA1 and all our industrial control products, covering manufacturing defects and providing prompt technical support for configuration, integration, or troubleshooting. If you cannot find the model you need, or require assistance with system design, please contact us immediately.
