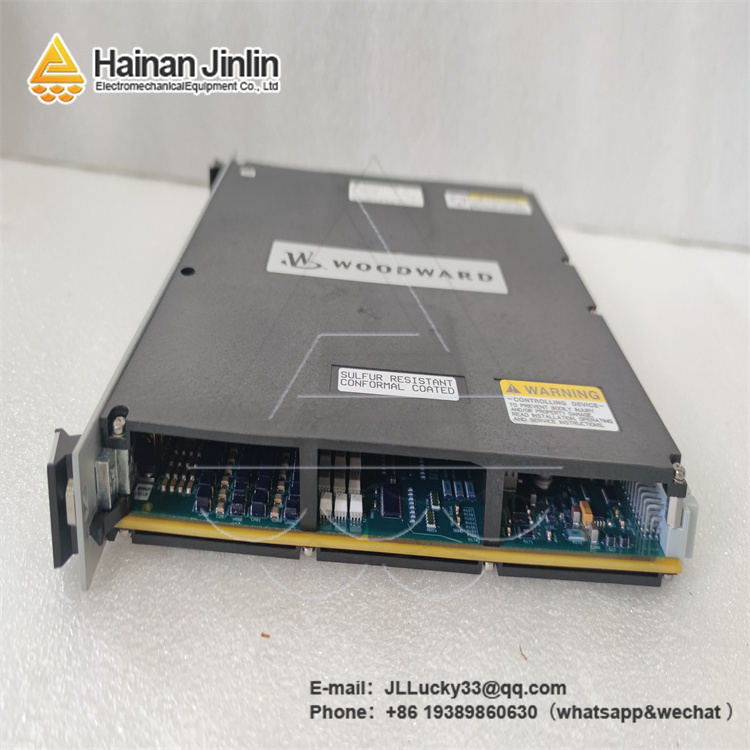

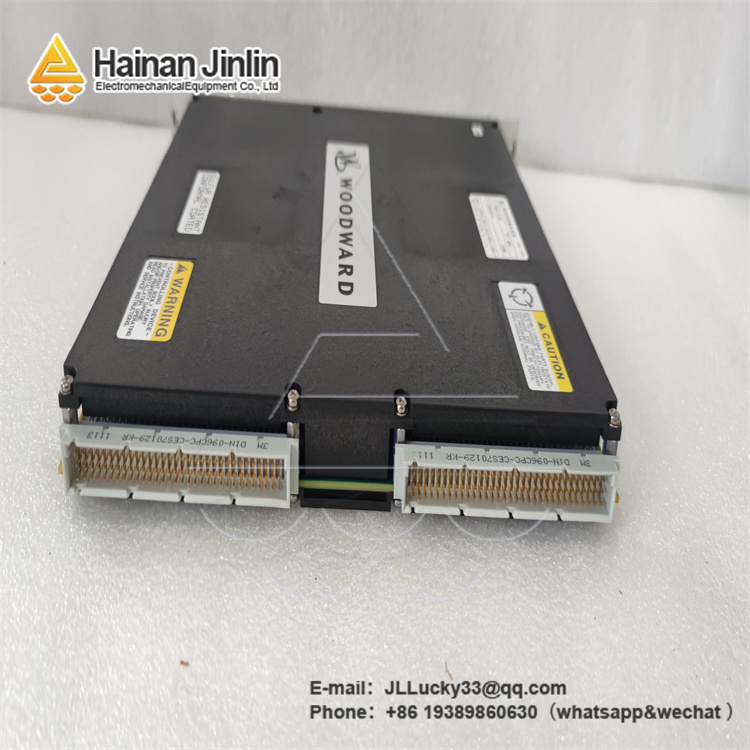

The 5466-1158 is a high - density discrete input/output (HDDIO) smart - plus module produced by Woodward. It is an important component of the Micronet digital control series, mainly used to provide discrete input and output functions for various industrial applications.
The 5466-1158 is a simplex HDDIO module with 48 discrete contact inputs. It has a compact structure, can be easily installed in the control chassis, and is suitable for a variety of industrial control scenarios. The module does not require calibration because it has no potentiometers. It can be directly replaced with other modules of the same part number, which is convenient for maintenance and replacement. It is a Micronet plus model, and device operation information can be accessed through the App Manager during operation.
- High - density I/O Design: With 48 discrete contact inputs, the 5466-1158 can connect multiple field devices, meeting the needs of large - scale discrete signal acquisition in industrial control systems. The 16 - channel or 32 - channel relay configuration provides flexible output control options, which can drive different loads.
- Galvanic Isolation: The galvanically isolated input design can effectively isolate the interference from the field, improve the anti - interference ability of the module, and ensure the stability and accuracy of signal transmission. It can prevent the influence of voltage fluctuations, current surges and other factors in the field on the control system, and protect the safe operation of the control system.
- Easy Maintenance and Replacement: Since there are no potentiometers, there is no need for calibration. When replacement is required, it can be directly replaced with a module of the same part number without additional adjustment, which greatly shortens the maintenance time and reduces the difficulty of maintenance. This is very important for industrial applications that require continuous operation, which can minimize production downtime.
- Power Supply Flexibility: There are two optional external power sources, 18 - 32 VDC or 100 - 150 VDC, to provide circuit wetting voltage. If a 24 VDC internal power source is used with the contact wetting function, a jumper is required. This flexible power supply method can adapt to different power supply environments in the field and improve the application flexibility of the module.
- 5466-1115: It is a high - density speed/analog I/O combo module of the Micronet series, mainly used in the steam turbine market, and can replace 5466 - 253 and 5466 - 316 modules.
- 5466-411: It is a Micronet Ethernet module, which provides Ethernet connection functions, with an input voltage of 110 VAC/125 VDC, and has the functions of real - time clock and speed sensing.
-
