Product Overview

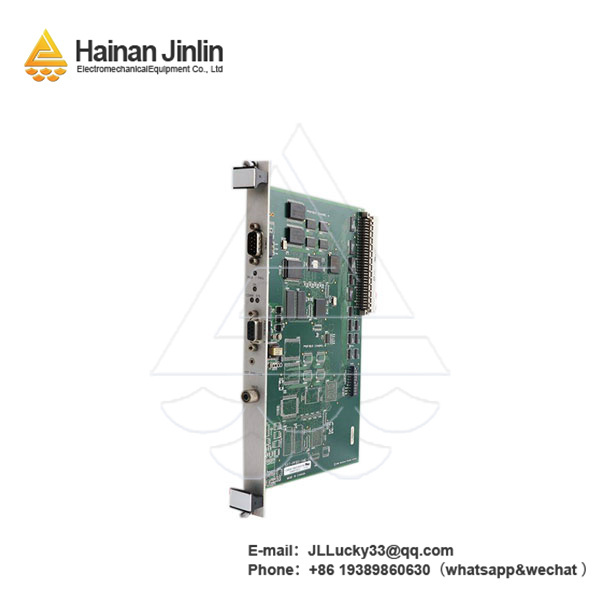

The ABB SM1012S/B20/0000/22/STD is a high-performance I/O (Input/Output) module engineered to enable seamless data exchange between field devices and control systems in industrial automation environments. As a core component of ABB’s automation solutions, this module is distinguished by its high channel density, reliable signal conversion, and broad compatibility with ABB’s DCS (Distributed Control System) platforms—making it an ideal choice for process-critical applications. Whether deployed in petrochemical refineries, power plants, or manufacturing facilities, the ABB SM1012S/B20/0000/22/STD excels in translating analog and digital signals with precision, supporting real-time control decisions, and operating consistently in harsh industrial conditions. Its standardized design simplifies integration into existing systems, while its durable construction ensures long-term performance, reducing operational downtime and maintenance efforts. By leveraging ABB’s expertise in industrial control, the ABB SM1012S/B20/0000/22/STD delivers the stability and efficiency required to keep complex automation processes running smoothly.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
ABB SM1012S/B20/0000/22/STD
|
|
Manufacturer
|
ABB
|
|
Product Type
|
Analog Input/Output (I/O) Module
|
|
Number of Channels
|
12 analog input channels; 8 analog output channels
|
|
Input Signal Range
|
4-20 mA DC, 0-10 V DC
|
|
Output Signal Range
|
4-20 mA DC (sink/source configurable)
|
|
Operating Temperature Range
|
-10°C to +55°C
|
|
Power Consumption
|
Max 15 W (at 24 V DC input)
|
|
Communication Interface
|
ABB AC 800M DCS backplane (compatible with CI854/CI855 communication modules)
|
Key Features and Benefits
High-Precision Signal Conversion
The ABB SM1012S/B20/0000/22/STD integrates advanced 16-bit ADC (Analog-to-Digital Converter) and DAC (Digital-to-Analog Converter) technology, ensuring accurate conversion of field signals with minimal error (±0.1% of full scale). This precision is critical for applications like flow measurement in petrochemical plants or pressure control in power generation, where even small signal deviations can lead to process inefficiencies or safety risks. By maintaining signal integrity, the module enables control systems to make reliable, data-driven decisions.
Flexible Channel Configuration
With 12 analog input and 8 analog output channels, the ABB SM1012S/B20/0000/22/STD offers flexible channel allocation to match diverse application needs. Input channels support both 4-20 mA DC (for current-based sensors like transmitters) and 0-10 V DC (for voltage-based devices), while output channels can be configured as sink or source to accommodate different field device requirements. This versatility eliminates the need for multiple specialized modules, reducing system complexity and cost.
Robust Industrial Design
Built to withstand the rigors of industrial environments, the ABB SM1012S/B20/0000/22/STD features a rugged metal housing and complies with IEC 61010-1 safety standards for electrical equipment. It resists electromagnetic interference (EMI) and radio-frequency interference (RFI) per EN 61326-1, ensuring stable operation even in environments with high electrical noise (e.g., near large motors or variable frequency drives). Its operating temperature range (-10°C to +55°C) also allows deployment in both indoor control cabinets and semi-outdoor facilities without additional cooling.
Seamless DCS Integration
The ABB SM1012S/B20/0000/22/STD is fully compatible with ABB’s AC 800M DCS platform, connecting directly to CI854 or CI855 communication modules via the system backplane. This integration eliminates the need for external wiring between the I/O module and DCS controller, simplifying installation and reducing the risk of wiring errors. The module also supports ABB’s Control Builder M software, enabling easy configuration, calibration, and monitoring of channels—streamlining setup and maintenance workflows.
Built-In Diagnostics and Fault Tolerance
To minimize unplanned downtime, the ABB SM1012S/B20/0000/22/STD includes comprehensive diagnostic features. It continuously monitors channel status, power supply voltage, and backplane communication, alerting operators to issues such as open circuits, short circuits, or communication failures via the DCS. The module also supports hot-swap functionality (when used with compatible AC 800M racks), allowing replacement without shutting down the entire system—critical for 24/7 operations like oil refineries or water treatment plants.
Related Models
- ABB SM1012S/B10/0000/22/STD – Reduced-channel variant of the ABB SM1012S/B20/0000/22/STD (8 input/4 output channels) for smaller-scale applications.
- ABB SM1012S/B30/0000/22/STD – High-channel upgrade of the ABB SM1012S/B20/0000/22/STD (16 input/12 output channels) for large process systems.
- ABB SM1012S/B20/0000/22/EX – Explosion-proof version of the ABB SM1012S/B20/0000/22/STD, certified for Zone 2 hazardous areas (ATEX/IECEx compliant).
- ABB CI854AK01 – Communication module required to connect the ABB SM1012S/B20/0000/22/STD to ABB AC 800M DCS racks.
- ABB SM1008D/B20/0000/22/STD – Digital I/O counterpart of the ABB SM1012S/B20/0000/22/STD (16 digital input/16 digital output channels) for discrete control tasks.
- ABB SM1012S/B20/0000/22/HI – High-temperature variant of the ABB SM1012S/B20/0000/22/STD, operating up to +70°C for extreme heat environments.
- ABB TB820 – Terminal block accessory for the ABB SM1012S/B20/0000/22/STD, simplifying wiring to field devices and ensuring secure connections.
- ABB SM1012S/B20/0000/22/RED – Redundant I/O module pair with the ABB SM1012S/B20/0000/22/STD for fault-tolerant systems (e.g., nuclear power plants).
Typical Application Areas
- Process Industries: Integration into ABB AC 800M DCS systems for petrochemical, oil & gas, and power generation facilities. The ABB SM1012S/B20/0000/22/STD is used to interface with sensors (e.g., pressure, temperature, flow transmitters) and actuators (e.g., control valves, variable speed drives), enabling precise process control and monitoring.
- Water and Wastewater Treatment: Monitoring and controlling chemical dosing systems, pump speed, and tank level. The module’s accurate signal conversion ensures optimal treatment efficiency and compliance with environmental regulations.
- Pharmaceutical Manufacturing: Supporting GMP (Good Manufacturing Practice)-compliant processes by providing precise control of temperature, humidity, and pressure in cleanrooms. Its diagnostic features help maintain process traceability and reduce product waste.
- Mining and Metals: Connecting to weight sensors, conveyor speed monitors, and furnace temperature probes in mining operations. The module’s rugged design withstands dust and vibration, ensuring reliable performance in harsh mining environments.
As a certified partner of industry leaders such as Bentley Nevada, Honeywell, and ABB, we provide professional pre-sales and after-sales service. We offer a one-year warranty for the ABB SM1012S/B20/0000/22/STD and all our industrial control products, covering manufacturing defects and ensuring prompt technical support if issues arise. If you cannot find the model you need, or require assistance with configuration and integration, please contact us immediately.
