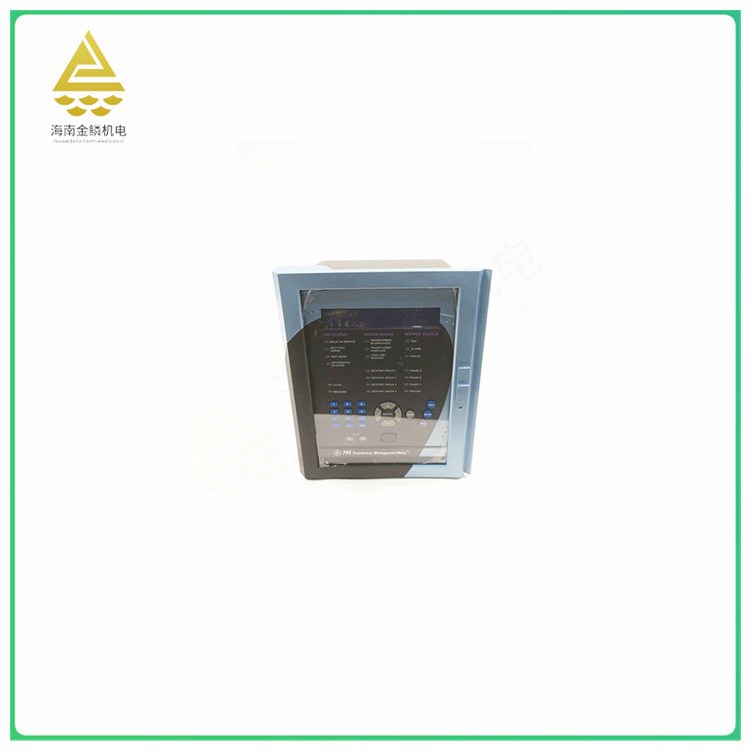

The SR745-W3-P5-G5-HI is a transformer management relay manufactured by GE Multilin with the following features and functions:
Protection: The relay provides comprehensive transformer protection, including frequency, percent differential, overcurrent and overexcitation protection elements. It can alarm or take appropriate protective measures in time when the transformer is abnormal to avoid transformer damage or failure.
Monitoring function: The SR745-W3-P5-G5-HI has a monitoring function to monitor individual harmonics, total harmonic distortion, and other relevant parameters of the transformer system. These data can help users understand the operation status of the transformer and find potential problems in time.
Adaptive function: The relay has adaptive function, which can be automatically adjusted and optimized according to the actual situation of the transformer. For example, it can dynamically adjust parameters such as CT ratio mismatch correction, adaptive time overcurrent element and adaptive harmonic suppression to improve system reliability and stability.
Easy to configure and use: The SR745-W3-P5-G5-HI provides a simulation test function, allowing users to simulate various fault situations on the computer to test the operation of the relay. In addition, the relay also has a backlit LCD display and input keyboard, so that users can manually adjust the set value. It also supports the EnerVista 745 setup software for easier set point management.
Multiple connection modes: The relay provides multiple connection modes, including inbound and outbound connection ports, for easy connection and communication with other devices. In addition, it supports an RS232 program port for easy user programming and configuration.
Strong adaptability: SR745-W3-P5-G5-HI is highly adaptable and can operate stably in different climatic conditions. The enclosure is sealed with a sealing strip, which can limit the entry of dust in the air and ensure the cleanliness and reliability of the relay inside.
In summary, the SR745-W3-P5-G5-HI is a powerful and stable transformer management relay suitable for all types of transformer systems. Through its protection, monitoring and adaptive functions, the relay helps users improve the reliability and stability of transformer systems, reduce failure rates and maintenance costs.
