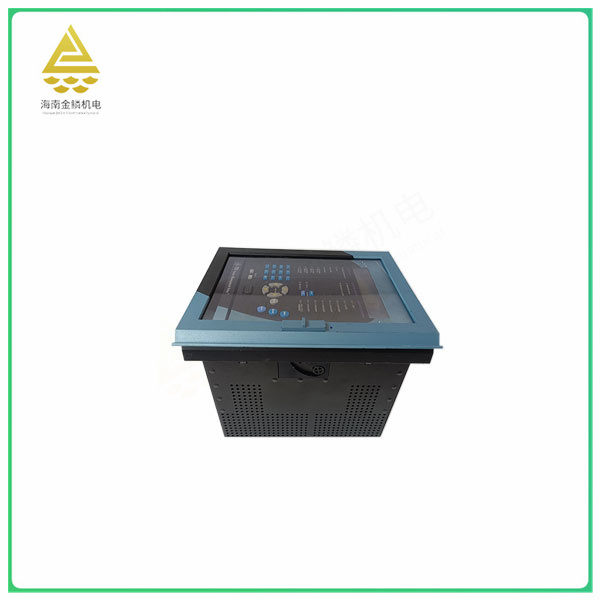

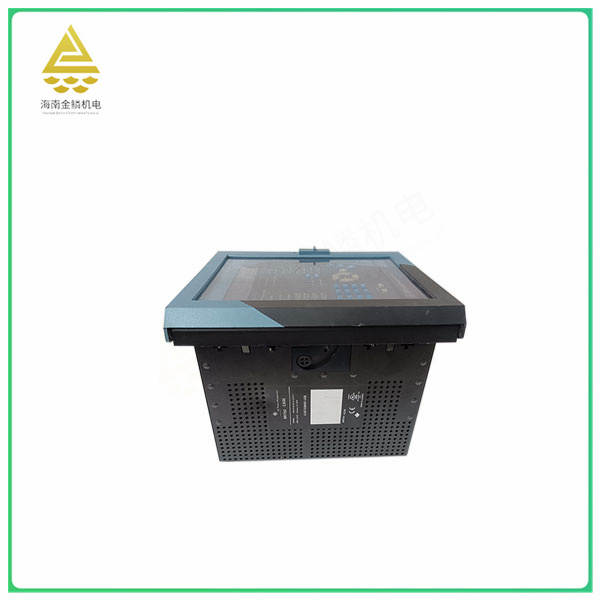

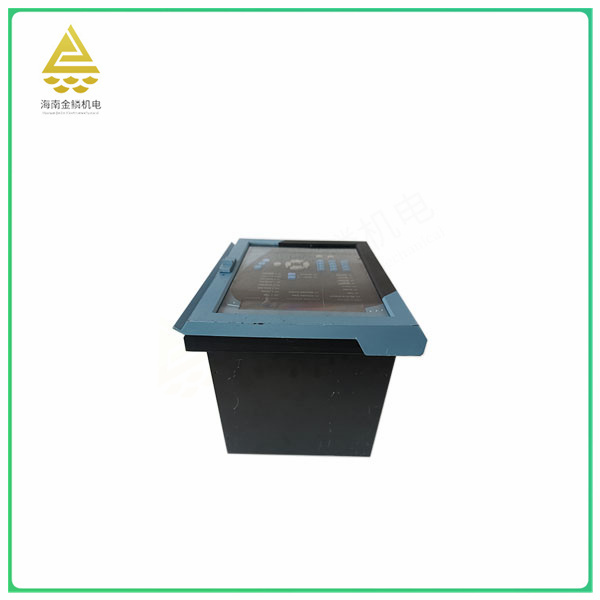

The GE SR750-P5-G5-S5-HI-A20-R-E features:

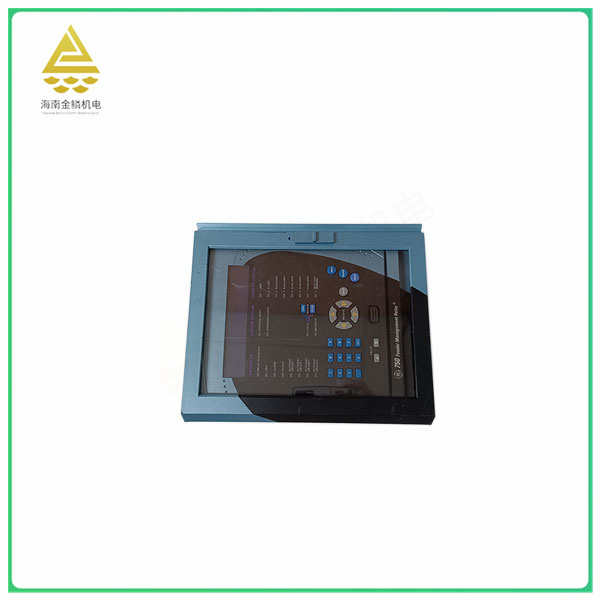

Front panel design, including a RS-232 program end C] interface, liquid crystal display, digital keyboard, control and programming keys.
High-speed data acquisition, able to collect analog and digital data at high rates from external signal sources.
Multi-channel input, typically providing 8 or more input channels, each of which can independently collect signals.
High precision measurement, low noise and distortion characteristics, can accurately measure the input signal amplitude, frequency and phase parameters.
It supports a variety of trigger modes and synchronization functions, and can be triggered externally by software or internally as required.
GE SR750-P5-G5-S5-HI-A20-R-E Application field
GE SR750-P5-G5-S5-HI-A20-R-E digital protective relays are widely used in electric power, petrochemical, metallurgy and other fields.
The GESR750-P5-G5-S5-HI-A20-R-E is one of several digital relays in the electric 750/760 feeder protection system family supplied by AX Contro. These mounts are designed for use with external devices

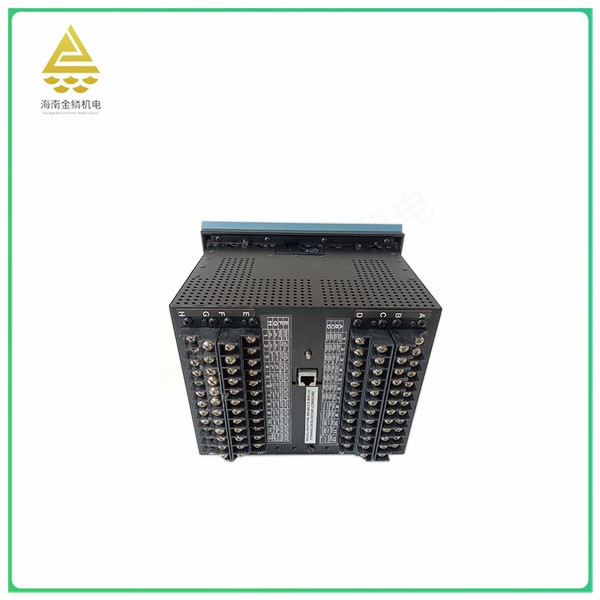

Make electrical connections while providing protection and control for distribution feeders. Units like these are designed to be mounted as separate units, or they can be mounted using standard 19-inch panel racks with other SR column relays
Play - Install 1.
The GE SR750-P5-G5-S5-HI-A20-R-E has the following advantages:
Front panel design. Includes an RS-232 program end C] interface, liquid crystal display, digital keyboard, control and programming keys.
High-speed data acquisition.
Multi-channel input.
High precision measurement.
It has barge reliability, grade protection function, a wide range of operating conditions, and can be installed and fitted.
In addition, the GE SR750-P5-G5-S5-HI-A20-R-E also has the advantage of eliminating the need for additional monitoring and metering equipment, as the relay itself has multiple built-in monitoring functions, such as trip counting
The device relay records the number of trips the circuit breaker has made and can display this value in the device's 40-character alphanumeric LCD or EnerVista750 software program; Measurement: can accurately measure voltage, amperage, watt
Time cost, frequency, etc. 1.
