Brand: Schneider
Model: TM3AI8
Product type: Analog input module
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
The product is part of the Modicon TM3 family, which offers extended I/O modules in the Modicon M221, M241, M251 and M262. The analog input module provides 8 inputs with 11 bit + symbol and 12 bit resolution. It is an input module with a rated power supply voltage of 24V DC and a current consumption of 35mA at 5V DC when unloaded through the bus connector, 45mA at 5V DC when fully loaded through the bus connector, and 30mA at 24V DC through an external power supply. This product is capable of controlling variable speed drives or any device with current or voltage input. At 1500V AC there is insulation between the input and the power supply, and at 500V AC there is insulation between the input and the internal logic.
It has the following main features and functions:
Input characteristics: The module has eight analog input channels with 12-bit resolution that can be used to connect a large number of devices to an automation network. Because it is an analog input, information can be received through current and voltage signals from variable speed drives, sensors, and other electrical equipment. With a current range of 0 to 20mA, a voltage range of -10 to +10V, and a sampling time of 1ms, it can accurately measure parameters such as temperature, speed and flow.
Mounting options: The TM3AI8 offers rail, plate and panel mounting options, allowing users to choose the most suitable mounting method for their system.

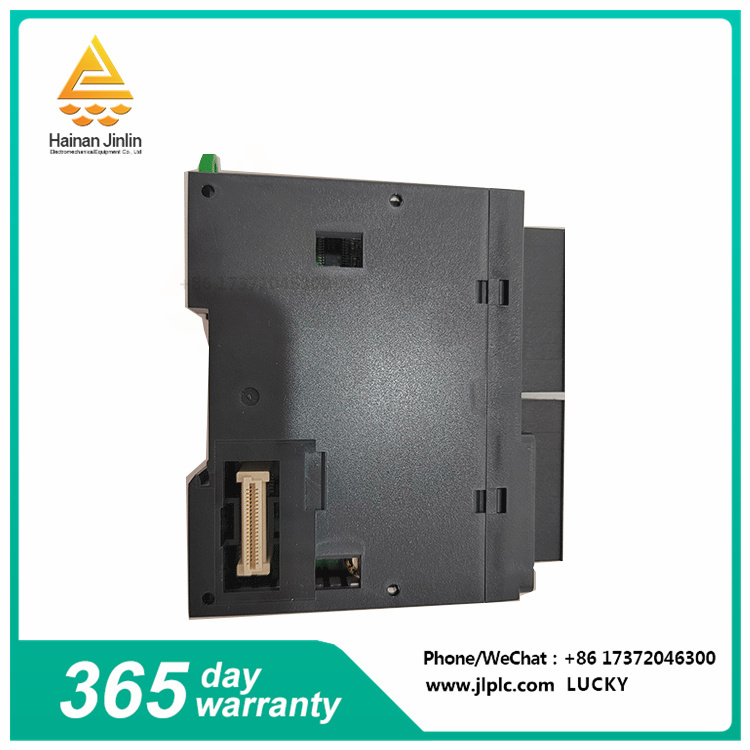

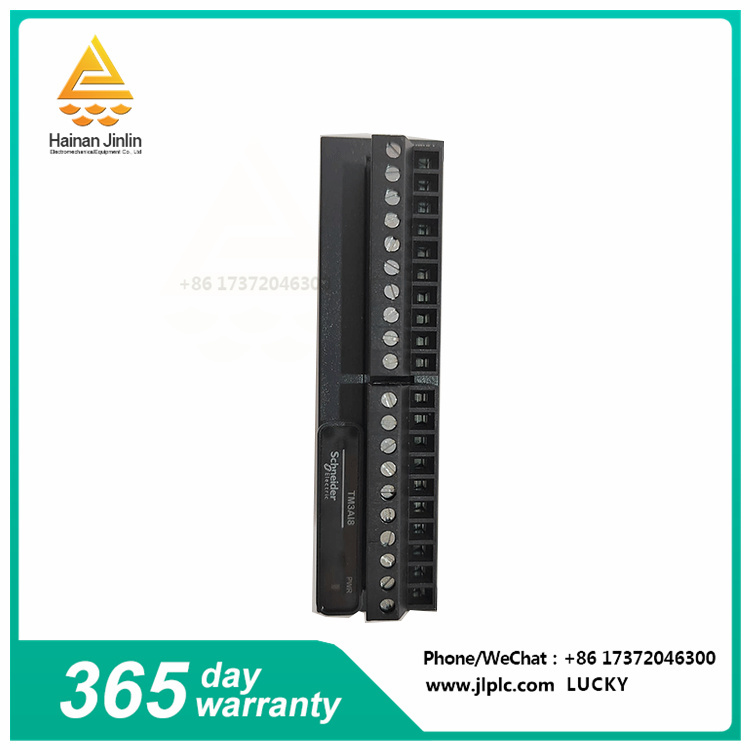

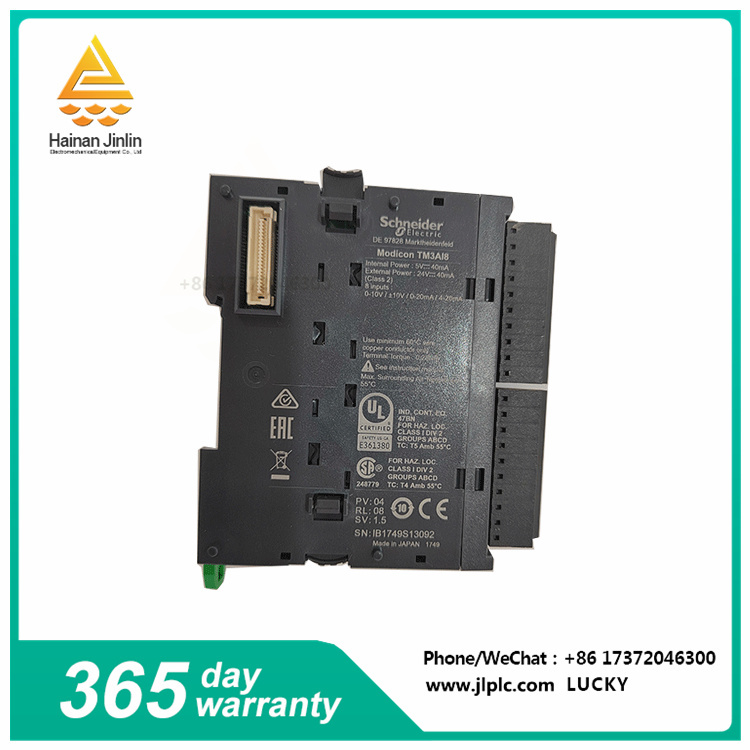

Simple interlocking: The module has a simple interlocking design that instantly fixes the module to the main system.
