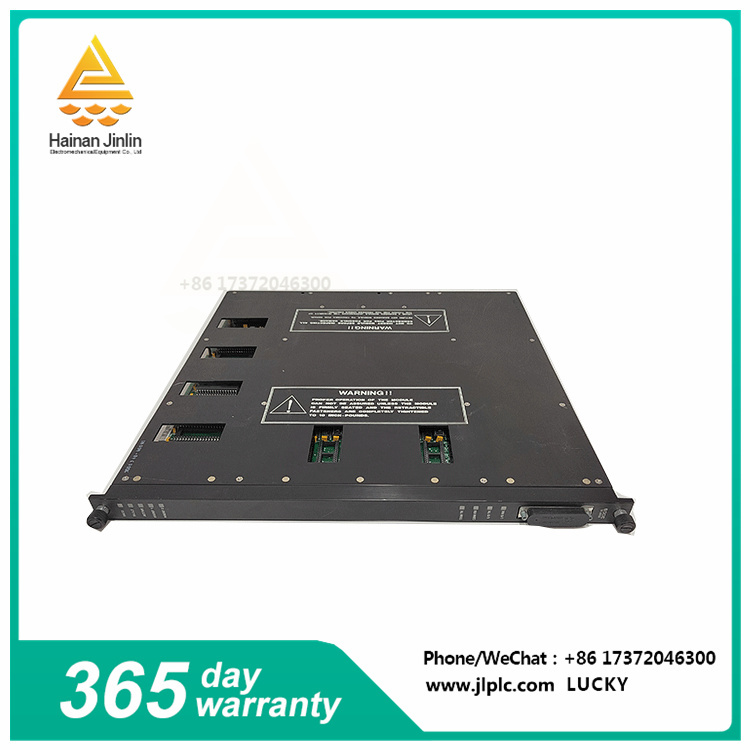

TRICONEX 3700A | Analog input module | Achieve accurate signals

Brand: Triconex
Product Number: 3700 amps
Product type: Analog input module
Shipping weight: 3 Kg
Payment: Wire transfer, Western Union, credit card
Dimensions: 90 x 90 x 60 mm
Weight: 0.5 kg
Certificate: UL, CE certification
Guarantee: 2 years

trait

32 point analog input: Reads voltage signals from sensors and transmitters.
0-5 VDC differential input: provides high noise resistance for accurate signal processing.
Dc coupling: Simplifies wiring and reduces installation complexity.
Triple Modular redundancy (TMR) : ensures continuous operation even in the event of module failure.

routine
■ Accuracy: <.15% of FSR, from 0° to 60°C
Color: Yellow
■ Common model range: -12V to +12V peak
■ Common mode suppression: -80dB (DC-100Hz), typical value
Current range: 0-20 mA, 250 shunt
■ Input overrange protection: 150 VDC/115 VAC continuous
■ Input resistance: (load) 30M? (DC), the minimum value
■ Input update rate: 55 ms
■ Isolated point: No
Leg to leg isolation: 200K? Typical value
■ Module status: Pass, Fault, Active
■ Number of input points: 32, differential, DC coupling
■ Power off resistance: 30K (DC), typical value
■ Resolution: 12 bits
■ Type: TMR, Al
Voltage: 0-5V, + 6% (3700A only)


Technical specification

Input range: 0-5 VDC differential
Accuracy: ±0.1% of reading
Resolution: 12 bits
Module health diagnostics

Product type and use:

The TRICONEX 3700A is a programmer designed to program and control Triconex systems.
It can download the program written by the user to the PLC (programmable logic controller) user program memory, and check, modify and debug the program.

Main functions:

Program download: The programmer can download the program written by the user to the PLC user program memory.
Program inspection, modification and debugging: With the programmer, the user can check, modify and debug the user program to ensure the correctness and efficiency of the program.
Monitor the execution process: The programmer can monitor the execution process of the user program to ensure that the PLC runs in accordance with the predetermined logic and sequence.
