Product range: Modicon TSX Micro automation platform
Product or component type: Discrete relay I/O base
Discrete input: 16 screw terminals
Discrete input voltage: 24 V DC negative
Discrete input current: 9 MA
Height: 2.17 inches (5.5 cm)
Width: 7.09 inches (18.0 cm)
Length: 10.24 inches (26.0 cm)
Weight: 20.53 oz (582.0 g)

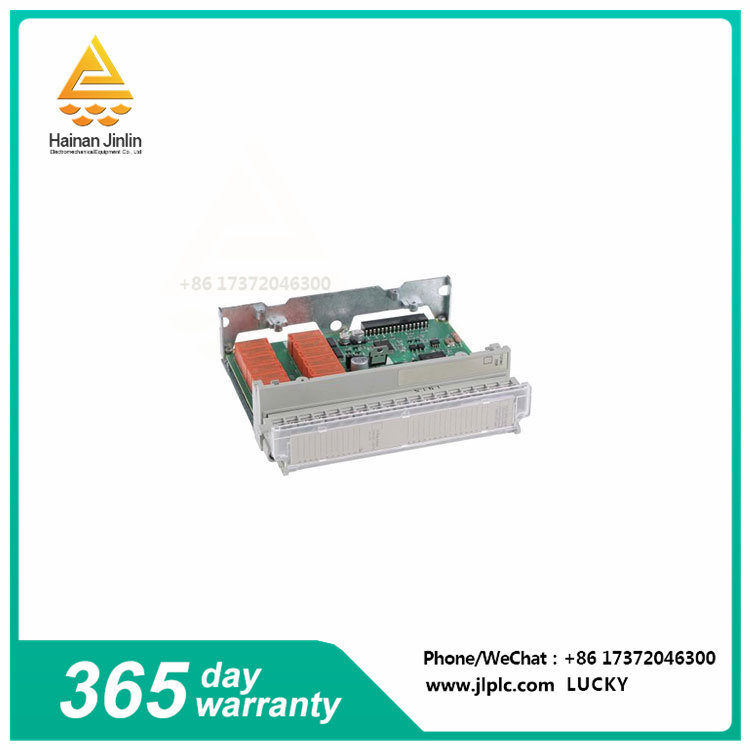

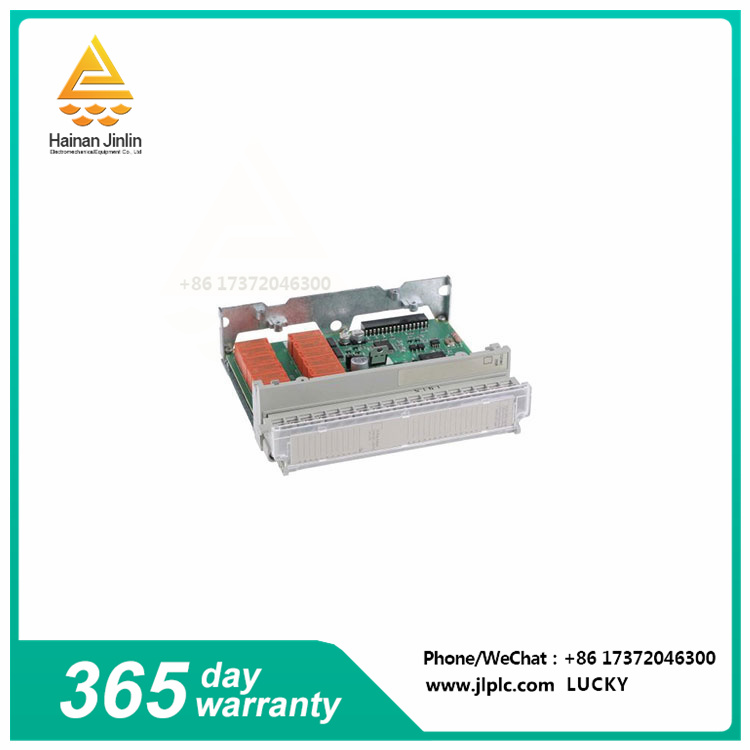

Manufactured by Schneider Electric, the TSXDMZ28DR is a powerhouse in the I/O module space and is designed to be seamlessly integrated into the Modicon TSX Micro automation platform. This discrete relay I/O base embodies reliability and efficiency to provide optimal performance in a variety of industrial applications. This TSXDMZ28DR is crafted with attention to detail and has a solid construction, yet weighs just 0.5kg and is lightweight. Its construction marks Schneider Electric's commitment to durability without compromising portability, ensuring easy installation and maneuverability in a variety of operating environments. The module is equipped with 16 screw terminals for discrete inputs to help simplify connections and adapt to various wiring configurations precisely and easily. The discrete input voltage of 24 V DC (negative) further emphasizes its compatibility with standard industrial power systems, ensuring seamless integration with existing setups. With response times ranging from 0.1 to 7.5 milliseconds, the TSXDMZ28DR guarantees fast and precise signal processing, facilitating fast transitions between input states. Its compatibility extends to 2-wire / 3-wire proximity sensors, expanding its use in a range of industrial applications.
Power and grounding: The module has power terminals, is protected by a detachable cover, and can be connected to an auxiliary 24V power supply when the PLC is powered by 100/240V voltage. In addition, the module also has ground terminals to ensure the safe and stable operation of the system.
Display and indication: TSXDMZ28DR has an LED indicator that can display the status of 24V voltage, which is convenient for users to understand the working status of the module.
Development System: Like other Schneider Electric PLC products, the TSXDMZ28DR supports a convenient development system that allows users to program and debug using Schneider Electric programming software.
