Product Overview

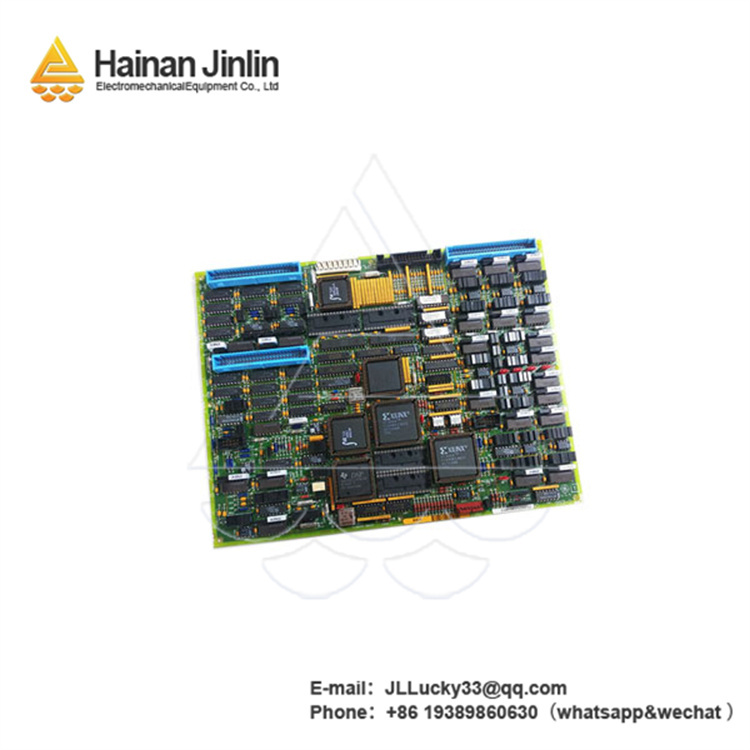

The DS200TCCBG3BED is a high-reliability industrial control board, specifically engineered for use in critical automation systems. As a key component in the GE Speedtronic series, this board is designed to deliver precise control and monitoring capabilities in power generation, industrial processing, and heavy manufacturing environments. Whether integrated into turbine control systems, large-scale machinery, or complex process networks, the DS200TCCBG3BED excels at ensuring system stability, enabling real-time data processing, and supporting seamless operation, making it an indispensable asset for industries that demand uncompromising performance and safety.
As a distributor of industrial control products, we are proud to offer the DS200TCCBG3BED to our clients. Adhering to the "Customer First, Forge Ahead" philosophy, we are committed to providing exceptional service to meet all your industrial control needs.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
DS200TCCBG3BED
|
|
Manufacturer
|
GE
|
|
Product Type
|
Turbine Control Board
|
|
Input Voltage
|
5 VDC ±5%, 24 VDC ±10%
|
|
Operating Temperature
|
0 to 60 °C
|
|
Storage Temperature
|
-40 to 85 °C
|
|
Communication Interface
|
RS-485, Ethernet
|
|
Dimensions
|
150 mm x 200 mm x 30 mm
|
|
Weight
|
Approx. 350 grams
|
|
Protection Rating
|
IP20 (when installed in enclosure)
|
Key Features and Benefits
Specialized Turbine Control: The
DS200TCCBG3BED is purpose-built for turbine control applications, offering dedicated circuitry and software algorithms to regulate speed, pressure, and load with exceptional precision. This specialization ensures optimal turbine performance, reduces wear and tear, and extends equipment lifespan—critical factors in power generation and industrial turbine operations.
Dual Voltage Compatibility: Supporting both 5 VDC and 24 VDC power inputs, the DS200TCCBG3BED provides flexible integration into diverse control system architectures. This dual-voltage design simplifies installation in legacy and modern systems alike, eliminating the need for additional power conversion components and reducing setup complexity.
Robust Environmental Tolerance: With an operating temperature range of 0 to 60 °C and storage capabilities from -40 to 85 °C, the DS200TCCBG3BED withstands the thermal fluctuations common in industrial environments. This resilience ensures reliable operation in turbine enclosures, control rooms, and outdoor installations, even during extreme temperature shifts.
Seamless Data Communication: Equipped with RS-485 and Ethernet interfaces, the DS200TCCBG3BED enables efficient data exchange with supervisory systems, HMIs, and other control components. This connectivity facilitates real-time monitoring of turbine parameters, remote diagnostics, and centralized control, empowering operators to make informed decisions and respond quickly to system changes.
Compact and Durable Design: Measuring 150 mm x 200 mm x 30 mm and weighing just 350 grams, the
DS200TCCBG3BED fits easily into space-constrained control cabinets. Its rugged construction, including conformal coating on critical components, protects against dust, moisture, and vibration—ensuring long-term reliability in harsh industrial settings.
Related Models
- DS200TCCBG3BEC – A predecessor to the DS200TCCBG3BED with similar core functionality but limited Ethernet capabilities, suitable for legacy systems with basic communication needs.
- DS200TCCBG3BEF – An upgraded version of the DS200TCCBG3BED with enhanced processing power and expanded I/O options, ideal for large-scale turbine systems requiring advanced control features.
- DS200TCQAG1A – A complementary I/O module for the DS200TCCBG3BED, providing additional analog and digital channels to expand system monitoring capabilities.
- DS200TCCBG3BEG – A hazardous-area variant of the DS200TCCBG3BED with ATEX certification, designed for safe operation in explosive environments such as oil refineries and chemical processing plants.
- DS200TCCBG3BEH – A high-temperature version of the DS200TCCBG3BED with an operating range of -10 to 70 °C, suitable for installations in extreme heat conditions, such as near furnace systems.
- DS200TCCBG3BEJ – A redundant control board paired with the DS200TCCBG3BED to provide fail-safe operation in mission-critical applications where downtime is not acceptable.
As a certified partner of industry leaders, we supply the DS200TCCBG3BED for a wide range of application areas. In power generation, it is integral to gas and steam turbine control systems, ensuring efficient and safe operation in power plants. In industrial processing, it regulates turbine-driven machinery in refineries, chemical plants, and pulp and paper facilities. In infrastructure, it supports distributed energy systems and cogeneration plants, optimizing energy output and reducing operational costs. We offer a one-year warranty for this product. If you need assistance finding the right model or require technical support, please contact us—our professional pre-sales and after-sales teams are ready to help.
