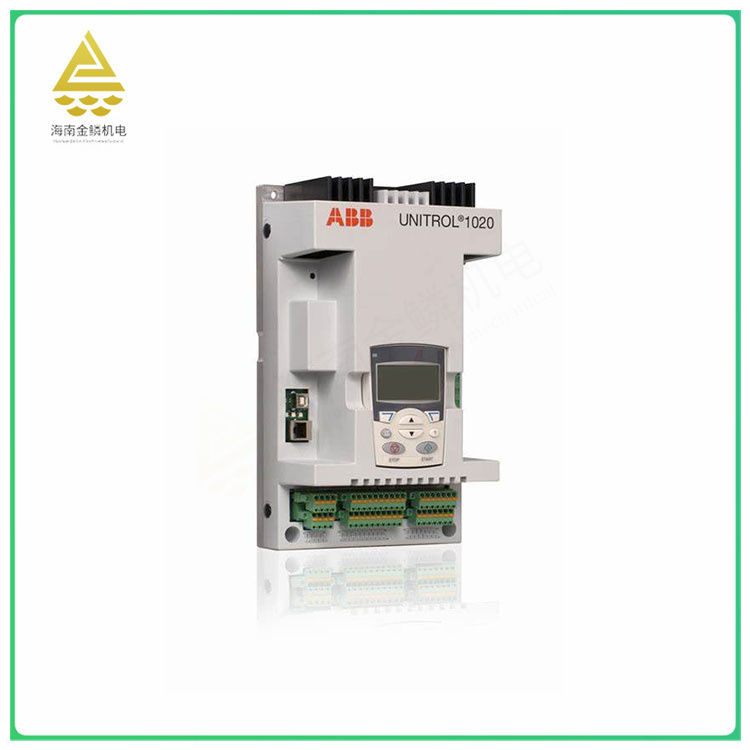

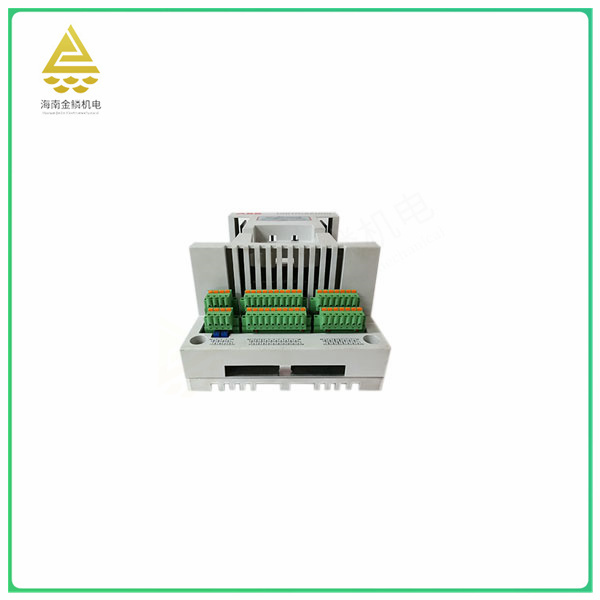

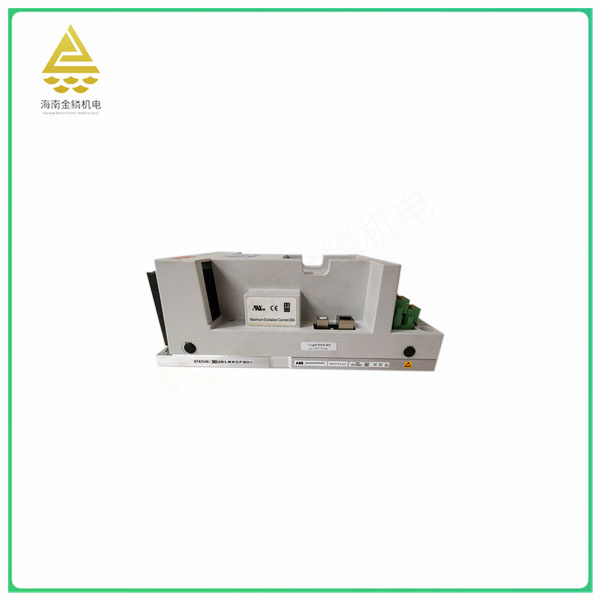

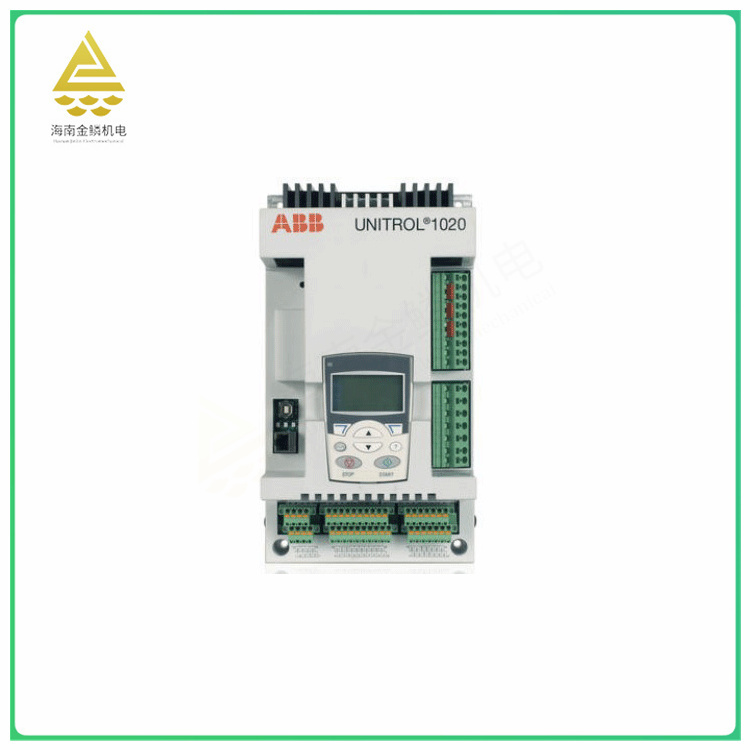

The UNITROL-1020 is an indirect excitation system from ABB, designed for small and medium-sized synchronous generators and industrial equipment. This voltage regulator combines high-performance control and power circuitry while maintaining a simple mechanical design. The Unitrol-1020 is part of the UNITROL 1000 series, which also includes the UNITROL 1010 and other models.
Key features of UNITROL-1020 include:
Advanced control: The UNITROL-1020 uses advanced microprocessor technology to achieve high-performance control functions. It is capable of handling IGBT semiconductor devices with current outputs up to 10ADC, thus ensuring stable operation under a variety of conditions.
Strong adaptability: The UNITROL-1020 is capable of performing high performance under harsh environmental conditions and is fully compliant with DNV and UL standards. In addition, it supports advanced load distribution in dual-channel parallel operating units, as well as rotating diode monitoring, automatic synchronization, and multiple all-in-one communication options.
Ethernet and USB connection: Compared with the previous version, UNITROL-1020 also adds Ethernet and USB connection functions to facilitate data transfer and device maintenance.
Excellent stability and repeatability: The UNITROL-1020 has a short dynamic response time with a warm-up time of only 2 to 4 hours and a 90% response time of 10 to 22 seconds for the T90. At the same time, its measurement function is also very stable, with a high degree of repeatability.
Wide range of applications: The UNITROL-1020 can be used in projects of all sizes, from small self-controlled premises to large DCS systems. Through RS485 or RS232 asynchronous serial communication protocol, it can easily communicate and connect with other devices.
Overall, the UNITROL-1020 is a powerful, stable and adaptable voltage regulator suitable for a variety of small and medium-sized synchronous generators and industrial equipment applications.
In addition, the UNITROL-1020 is suitable for use in power stations, grids and industrial power systems to ensure that power loads are properly supplied with voltage. This type of voltage regulator is usually equipped with an advanced voltage regulation function that automatically adjusts the excitation of the generator to keep the system voltage within a set range. It also usually has safety features to ensure the stability and security of the system.
In terms of configuration and application, the UNITROL-1020 controller is generally based on RS485 or RS232 asynchronous serial port communication protocol for bus communication. For the size of the application object, UNITROL-1020 PLC is generally used in small automatic control places, such as the control of equipment or a small amount of analog control and interlocking. DCS is generally used for large applications. However, with the development of technology, the line between PLC and DCS has become blurred, and they have moved closer to each other in many ways.
