Product ID: V18345-001 version

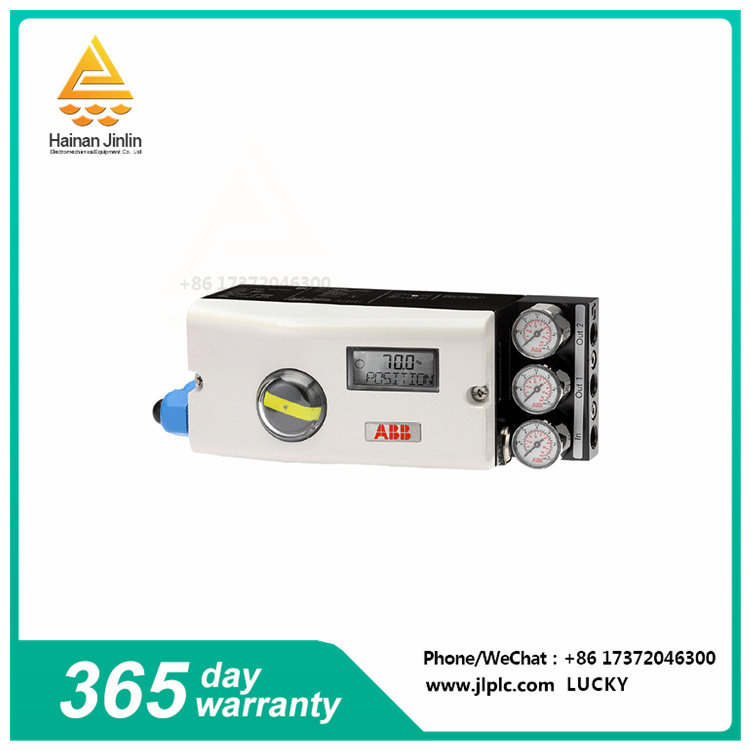

Catalog description: Electropneumatic positioner
V18345: TZIDC = Intelligent, configurable via indicator and operation panel
Housing/mounting: 1 = Housing is made of aluminum, painted, protection class IP 65 (NEMA 4X), for mounting on linear actuators according to DIN/IEC 534 / NAMUR or rotary actuators according to VDI/VDE 3845, or for integral mounting
Input/communication port: 1 = Input 4... 20 mA, two-wire with connector plug for LKS adapter
Explosion proof: 0 = none
Output/safe position (in case of power failure) : 1 = single acting, fail-safe
Connection: 2 = Cable: thread 1/2-14 NPT, air pipe: thread 1/4-18 NPT
Optional modules for analog or digital position feedback: 1 = Plug-in modules analog position feedback (symbol range 4... 20 mA)
Optional mechanical kit for digital position feedback: 0 = no
Design (varnish/coding) : 1 = standard
Output signal (two-wire technology) Nominal range: 4... 20 ma
Digital input: Control voltage 0... 5 V DC Logical switch Status 0 11... 30 V DC Logical Switch Status "1"
Digital output (control circuit according to DIN 19234/NAMUR) Supply voltage: 5... 11 V DC
Air supply pressure: 1.4... 6 bar (20... 90 pounds per square inch)
Air consumption: < 0.03kg /h / 0.015scfm (independent of gas supply pressure)
Housing material/Protection: Aluminum, protection class IP 65 / NEMA 4X
Surface/color: electrostatic impregnated paint, epoxy resin, furnace hardening. Case paint black, RAL 9005, matte, case cover Pantone 420.
Gas connection: Thread G 1/4 or 1/4-18 NPT
Weight: 1.7Kg
Weight: 3 Kg
