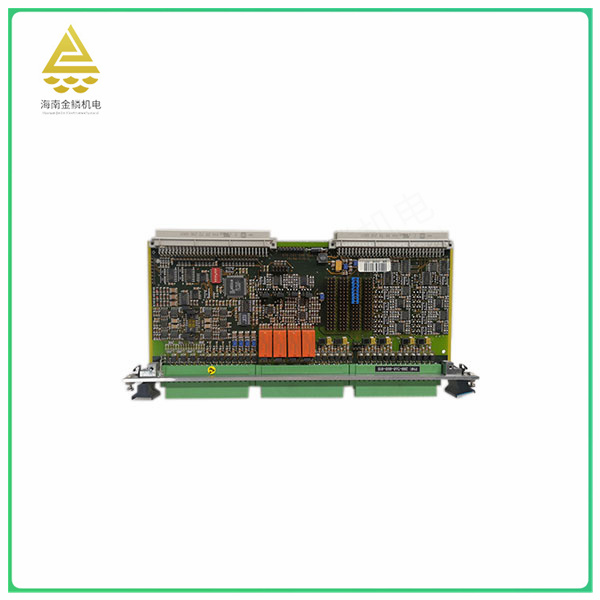

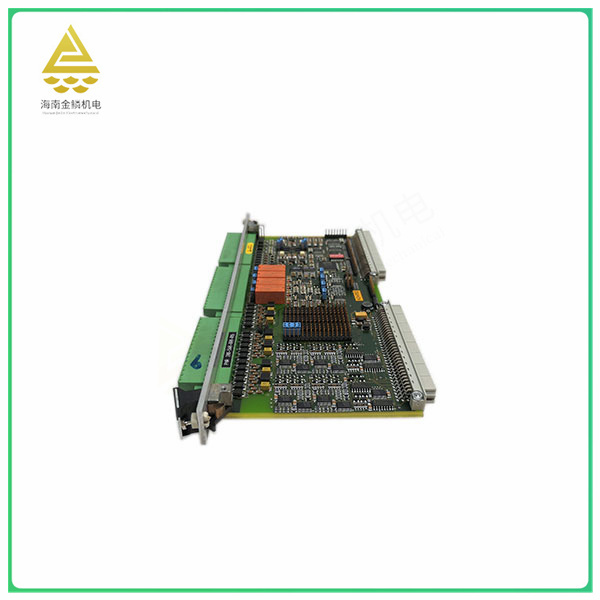

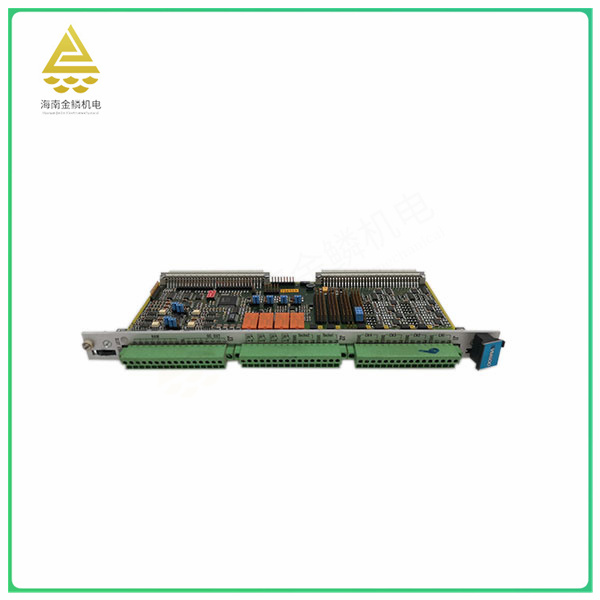

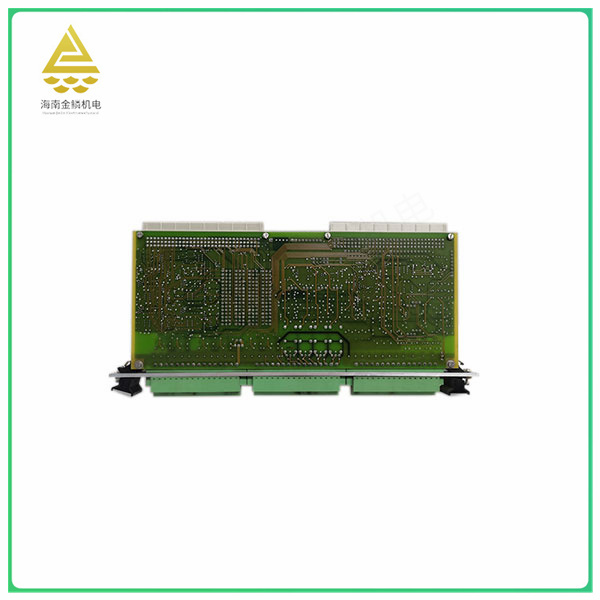

The VM600-IOC4T is an interface card used in the Vibro-Meter VM600 mechanical monitoring system. It is a high-quality, highly reliable input/output (I/O) card for use with MPC4 or MPC4SIL mechanical protection cards. The VM600-IOC4T supports 4 dynamic channels and 2 tachometer (speed) channels, all of which can be configured independently.
Here are some of the main features and functions of the VM600-IOC4T:
Interface and channel support: The VM600-IOC4T provides four dynamic channels and two tachometer channels, each of which can be configured independently. This gives it the flexibility to adapt to different mechanical monitoring needs.
Sensor power output: Each dynamic channel and each tachometer channel has a differential signal input for the sensor power output. This means that it can be connected directly to various sensors without the need for additional power or signal conditioning equipment.
Signal processing and output: The VM600-IOC4T has differential buffering (raw) sensor output, which means it can pre-process sensor signals to improve signal quality and reliability. In addition, the DC output of each dynamic channel can be configured as a current based signal (4 to 20 mA) or a voltage based signal (0 to 10 V) to meet different system requirements.
Control and monitoring functions: The VM600-IOC4T also features four configurable relays, each with two contacts, as well as alarm reset (AR), hazard bypass (DB), and trip multiplier (TM) control inputs. These functions allow it not only to monitor the mechanical state, but also to perform corresponding control actions when abnormal conditions are detected, such as alarm, shutdown, etc.
Installation and configuration: The VM600-IOC4T is installed in the rear of the VM600 ABE04x rack, directly behind the MPC4 card or MPC4SIL card, forming the card pair. This makes installation and configuration very simple and convenient.
Overall, the VM600-IOC4T is a high-performance, highly reliable input/output card for the Vibro-Meter VM600 mechanical monitoring system. It provides flexible configuration options and powerful monitoring and control functions, so that users can easily monitor and protect various mechanical equipment.
As an input/output card in the Vibro-Meter VM600 mechanical monitoring system, the VM600-IOC4T has a wide range of application scenarios. Here are some possible application scenarios for VM600-IOC4T:
Power generation and energy: In power stations, machinery needs constant monitoring and protection to ensure safe and efficient operation. VM600-IOC4T can be used as part of the mechanical protection system to monitor the vibration, speed and other parameters of key equipment, detect anomalies in time and take appropriate control measures.
Manufacturing: In the manufacturing industry, various machinery and equipment and production lines need to run stably to ensure production efficiency and product quality. The VM600-IOC4T can be used to monitor the operating status of these devices, prevent potential failures, and trigger alarms or shutdowns if necessary to avoid equipment damage and production disruptions.
Petrochemical: In the petrochemical industry, the integrity of equipment and pipelines is critical to safety and environmental protection. VM600-IOC4T can be used to monitor the vibration, displacement and other parameters of these devices and pipelines, find potential safety hazards in time, and take appropriate measures to prevent and deal with them.
Transportation: In the field of transportation, such as railways, aviation and navigation, the reliability of machinery and equipment is essential to ensure traffic safety. VM600-IOC4T can be used to monitor the operating status of key equipment, such as engines, bearings, etc., to find faults in time and take appropriate measures to ensure the safe operation of vehicles.
Overall, the VM600-IOC4T is suitable for a variety of application scenarios where critical mechanical equipment needs to be monitored and protected. It can provide real-time and accurate monitoring data, and perform corresponding control actions as needed to ensure the stable operation of the equipment and production safety.
