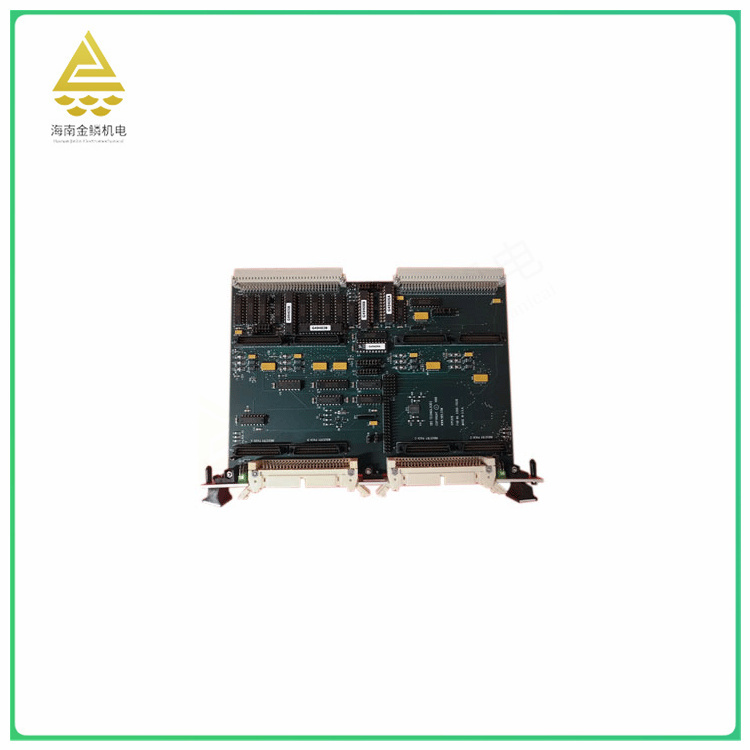

The VME-IP-carrier VIPC616 91611524 is a 6U VME industrial packet Carrier that supports I/O, ID, memory and interrupt functions. Specifically, it has the following functions and features:
Multi-slot design: The carrier board offers four industry package slots to support the installation and configuration of multiple industrial packages.
Flexible I/O interface: The VIPC616 provides a convenient I/O interface through the front panel of unshielded right Angle strip connectors to meet different input and output requirements.
Active LED and Power Monitor: The front panel of each industry pack slot is equipped with active LED and power monitor indicators, allowing users to monitor the operating status of the equipment.
Power management: VIPC616 has filter and fuse power rails to ensure power stability and safety.
Programmable interrupt mapping: Through PLD programming, VIPC616 can realize custom IRQ mapping, improving the flexibility and scalability of the system.
Mechanical and electrical interfaces: 6U brackets provide mechanical mounting and electrical interfaces for the VME backplane to four single width or two double width industrial packages.
Stable performance: The VIPC616 uses high-quality materials and strict production processes to ensure stable operation in a variety of harsh environments.
Features:
● Four industry bag slots on the 6U VME board
● Support for I/O, ID, memory, and interrupt cycles
● Front panel I/O through unshielded right Angle strip connectors
● Front panel active led for each IndustryPack slot
Front panel power monitor indicator
● Filter and fuse supply rail
● Provides custom IRQ mapping through PLD programming
The GE Fanuc/ SBS VIPC616 is a 4-slot 6U VME IndustryPack holder
Supports I/O, ID, memory, and interrupt functions. The 6U carrier is provided from the VME backplane to 4
Mechanical installation and electrical interfaces for one single or two double wide I components. 50 pin ribbon cable
Connect IndustryPack l/O on the front panel.
