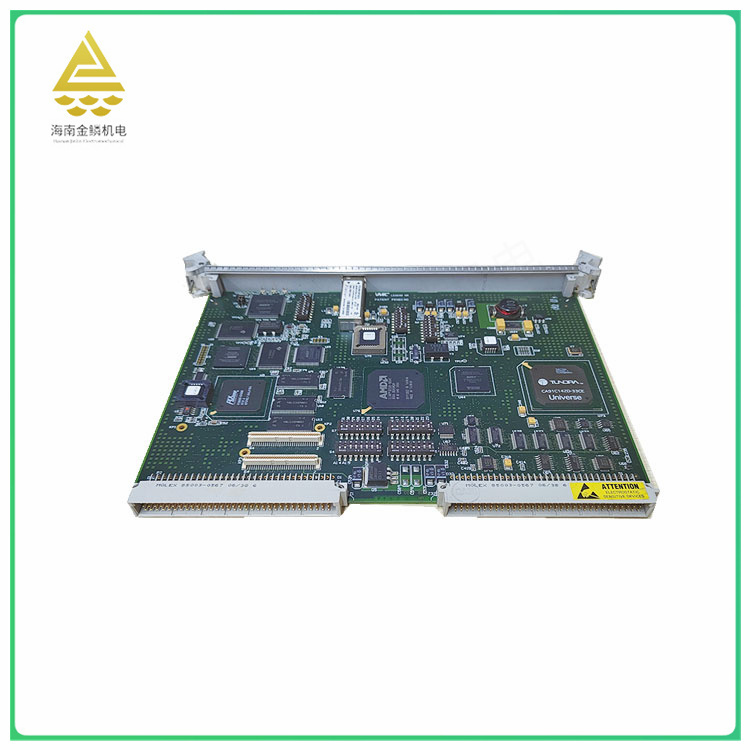

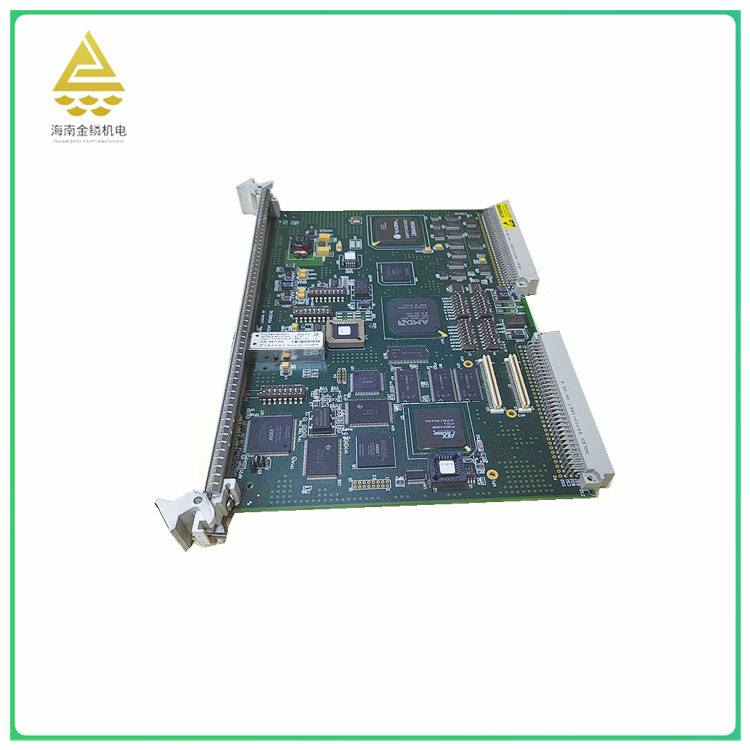

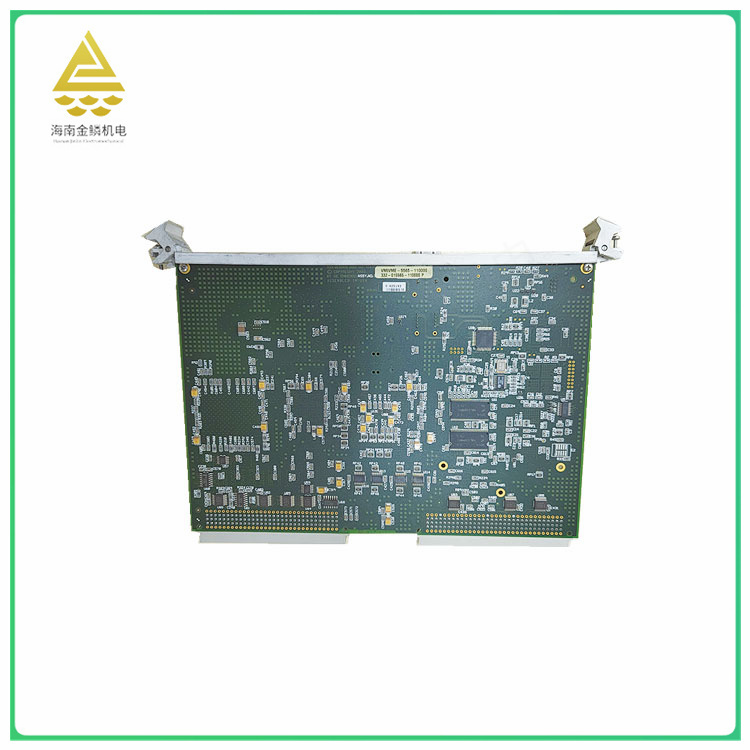

VME5565 reflective memory node card is an expansion card based on VME bus, which has the characteristics of high speed, low latency and deterministic interface. It provides the number between up to 256 independent systems (nodes)
According to shared capabilities, data transfer rates up to 170 Mbyte/s. Each reflective memory board can be configured with 64 MB or 128 MB of on-board SDRAM.
The node card is suitable for a variety of application scenarios, such as real-time data acquisition, high-speed computing, and distributed control systems. It adopts high-speed serial bus technology, which can greatly improve the data transmission and processing capability of the system
Force, while reducing system complexity and cost.
It should be noted that the VME5565 reflective memory node card is a more professional industrial control and automation equipment accessories, need to be selected and configured according to the actual application needs. At the same time, due to the
The technology and specifications of the product are relatively special, so it is necessary to carefully read the manual and technical documents of the two products before use, and follow the relevant specifications and operating procedures.
The technical specifications of VME5565 reflective memory node card mainly include the following aspects:
1. Interface type: VME bus interface, is a widely used in the field of industrial control and automation bus standards.
2. Data transmission rate: up to 170 Mbyte/s, which can meet the needs of high-speed data transmission and real-time processing.
3. Number of nodes: up to 256 independent systems (nodes), which can achieve large-scale distributed control and data processing.
4. Memory capacity: Each reflective memory board can be configured with 64 MB or 128 MB of on-board SDRAM, which can be selected and configured according to actual needs.
5. Compatibility: The node card is compatible with the VME bus standard and can be seamlessly connected and communicated with various VME bus devices.
6. Scalability: The node card has good scalability and can be customized and expanded according to actual needs.
7. Reliability: The node card uses high-quality electronic components and materials, with high stability and reliability, to ensure long-term normal operation.
8. Maintainability: The node has self-diagnosis and fault alarm functions, which is convenient for maintenance and troubleshooting.
9. Security: The node card complies with relevant security standards and specifications to ensure data security and integrity.
