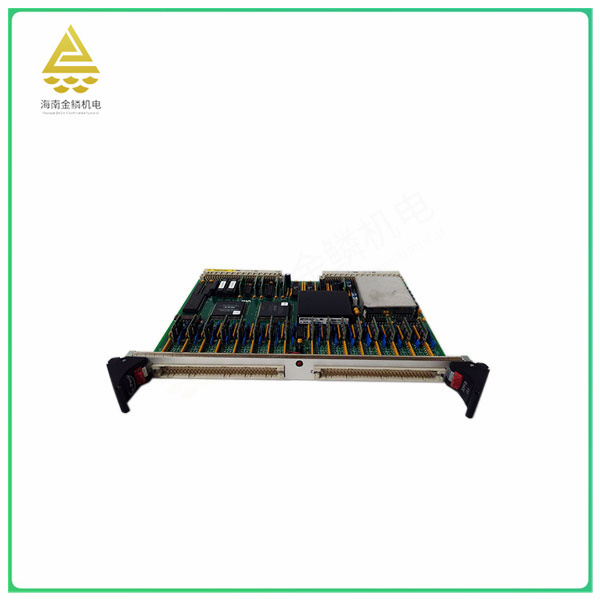

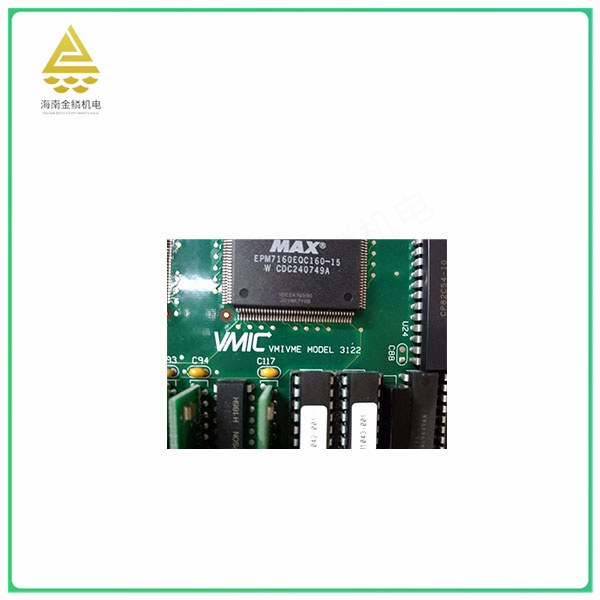

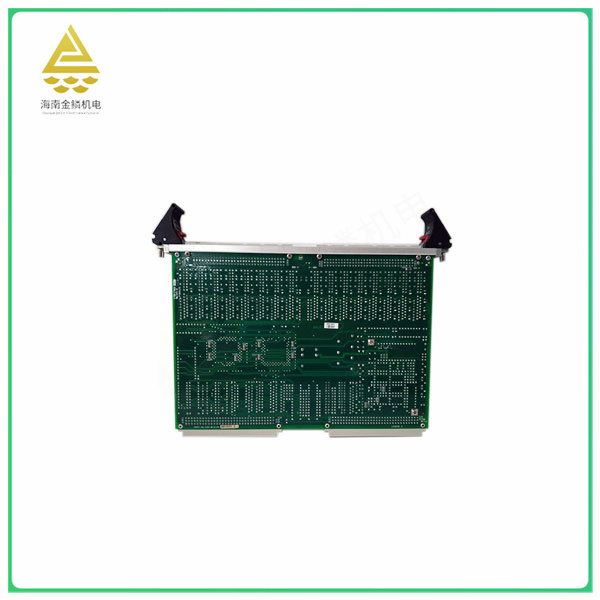

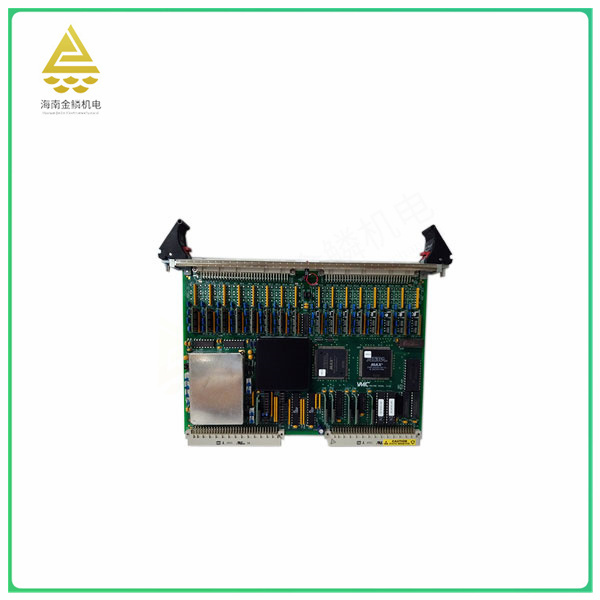

The VMIVME-3122 is a high-resolution, 16-bit, 64-channel analog scanning and digital input board for VMEbus system applications. It has dual port data memory, onboard timer, automatic control gain and programmable bus circuit breaker.
In addition, the VMIVME-3122 is able to support a wide range of analog input traffic while minimizing the involvement of the host processor. It is commonly used in industrial automation and motion control applications.
The VMIVME-3122 features high resolution, 16-bit analog scanning and digital input for VMEbus system applications. It has dual port data memory, onboard timer, automatic control gain and programmable bus circuit breaker.
On the plus side, the VMIVME-3122 features high resolution and extensive analog input traffic support, which reduces host processor involvement and optimizes system performance. In addition, it also has functions such as dual-port data memory and programmable bus circuit breaker, which increases the flexibility and stability of the system.
However, the VMIVME-3122 also has some drawbacks. First, it is a module designed for VMEbus systems and may not be compatible with other types of buses or systems. This limits the scope of its application. Second, while it has high resolution and extensive analog input traffic support, higher-level modules or devices may also be required for certain high-precision or complex data processing needs.
Abaco Systems/VMIC VMI VME-3122/NMI VME-3122 a is a high-resolution, 16-bit, 64-channel analog scanning and digital input board for VMEbus system applications. double
Port data memory, onboard timers, automatic control gain, and programmable bus interrupters enable the VMIVME-3122 to support large amounts of analog input traffic with minimal involvement from the host processor.
The VMIVME-3122 is part of VMIC's broad family of VMEbus analog input/output products. The VMIVME-3122 features 16-bit digital resolution, programmed gain, optional conversion rate, and 64
Channel differential or single-ended analog input automatic scanning provides excellent dynamic range and analog input channel density. Supported modes of operation, including automatic scanning, data burst and external synchronization. This board
In direct interface with VMIC's series of signal conditioning boards, it is used to digitize the output of thermocouples, RTDS and strain gauges.
Gain for individual channels can be downloaded for use in 3-trace operation, or the board can be configured to have a fixed gain common to all channels. Multiple boards can be synchronized at - up, making up to 16 boards
Start each scan simultaneously. Interval timer bus interrupters, channel counters, and Midscan/Endscan flags simplify data monitoring within a two-port data buffer. Benefit from VMIVME-
System applications for 3122 features include factory automation, process control, data acquisition systems, training simulators, and laboratory instruments.
