Features:
Single height VME module
Eight 28/32 pin JEDEC sockets located in two sets of 4 sockets
Spare battery

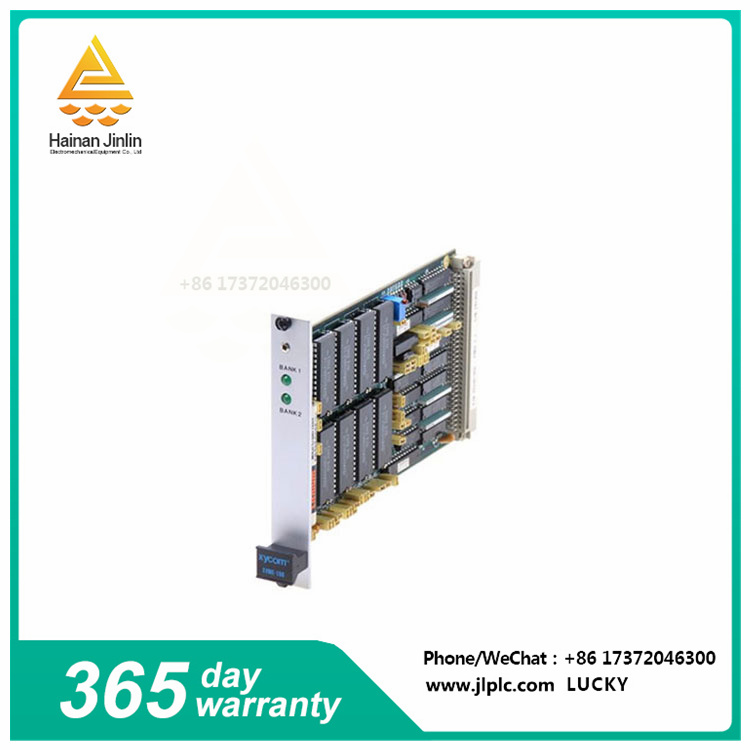

The XVME-100 RAM/ROM memory module is a single high level VMEbus compatible board that can hold up to 1 M bytes of RAM, EPROM or mask programmable ROM or 256K bytes of EEPROM. The module is designed with an onboard battery backup circuit to power CMOS RAM devices in the event of a power failure.
XVME-100 is a VME bus compatible memory module with a single height feature. It is equipped with eight 28/32-pin JEDEC slots, which are divided into two groups of four each. The memory module can support up to 1MB of RAM, EPROM or mask programmable ROM, or 256KB of EEPROM. In addition, the module is designed with an on-board battery backup circuit for powering CMOS RAM devices in the event of a power failure.
Advantages:
High compatibility: XVME-100 is VMebus-compatible, so it can be easily integrated into systems using VMEbus, providing efficient and stable memory support for these systems.
Large memory support: The ability to support up to 1MB of RAM, EPROM or mask programmable ROM, or 256KB of EEPROM makes it able to meet a variety of complex storage needs.
Battery backup function: XVME-100 has on-board battery backup circuit, which can power CMOS RAM devices in case of power failure, ensuring data integrity and security.
Modular design: As a single-height VME module, the XVME-100 is easy to install and replace, reducing maintenance and upgrade costs.
High reliability: Thanks to the use of high-quality components and carefully designed circuits, XVME-100 has high stability and reliability.
VME Bus (VMEbus) is a computer bus standard originally designed to meet the needs of data processing systems in high energy physics experiments. Because of its high speed, high reliability and modular design, VME bus has been widely used in industrial automation, aerospace, military and other fields.
As a component of VME bus system, XVME-100 module is of great importance. By providing a large amount of memory space, it can meet the needs of various complex applications for data processing and storage. At the same time, the battery backup function ensures data integrity and system reliability, even in the event of a power failure.
