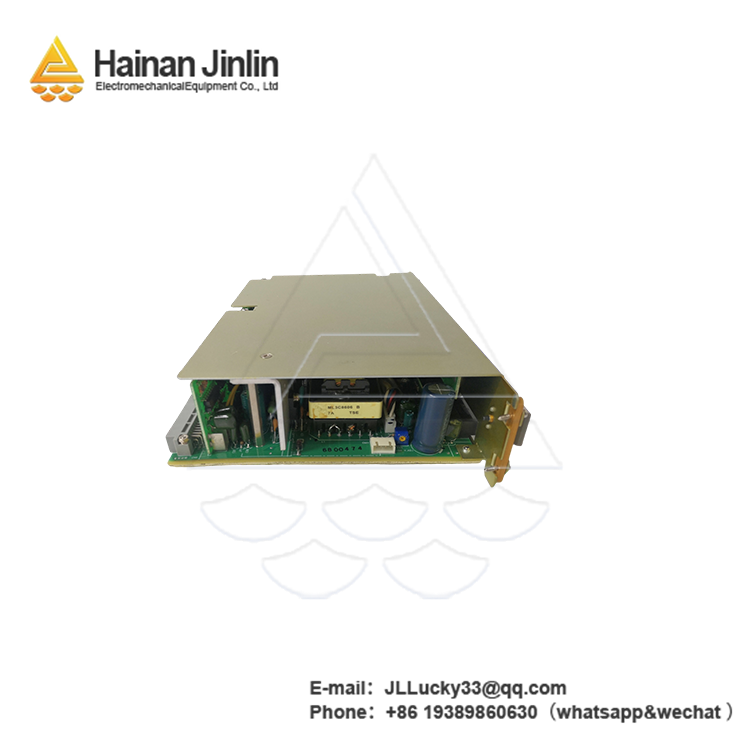

The YASKAWA CP-317/218IF is a high-performance interface module engineered specifically for Yaskawa’s industrial servo drive and motion control systems, serving as a critical bridge between motion controllers and external devices. This module excels at enabling seamless data exchange and signal routing, supporting both digital and analog communication to integrate servo drives with PLCs, HMI panels, and sensor networks. Core features of the YASKAWA CP-317/218IF include multi-protocol compatibility, high-speed data transmission, and robust industrial-grade construction—all designed to ensure reliable operation in demanding environments like automotive assembly lines, CNC machine shops, and robotic workcells. As a key component for motion control system expansion and retrofits, the YASKAWA CP-317/218IF adheres to strict industrial standards for stability and interoperability, making it an ideal choice for applications where precise, real-time coordination between devices is critical. Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
The
YASKAWA CP-317/218IF integrates seamlessly with Yaskawa’s Sigma-7 and Sigma-5 servo drives via EtherCAT, enabling high-speed, deterministic communication (cycle times as low as 1 ms) for precision motion control. It also supports Modbus RTU and RS-485, allowing easy connection to third-party PLCs (e.g., Siemens S7 series) and HMIs—eliminating the need for custom adapters and reducing system complexity.
Built with industrial-grade components and EMI (Electromagnetic Interference) shielding, the YASKAWA CP-317/218IF resists electrical noise common in manufacturing environments (e.g., from welding equipment or high-power motors). This ensures consistent data transmission between devices, preventing signal dropouts that could lead to production delays or equipment misalignment—critical for applications like CNC machining or robotic pick-and-place operations.
With 8 digital inputs and 4 digital outputs, the YASKAWA CP-317/218IF extends the I/O capabilities of Yaskawa motion control systems, allowing direct connection to limit switches, proximity sensors, and control relays. The module’s configurable input/output logic (via Yaskawa’s MotionWorks IEC software) enables customization for specific application needs, such as emergency stop triggering or production status monitoring—saving time on additional hardware installation.
The YASKAWA CP-317/218IF features a rugged, compact housing that withstands vibration (up to 50 Hz, 0.5 mm amplitude) and humidity (90% RH, non-condensing), ensuring long-term reliability in harsh industrial settings. It requires no periodic calibration under normal operation, reducing maintenance costs. Combined with a one-year warranty (provided by Hainan Jinlin), this durability offers peace of mind for operators relying on continuous production uptime.
- YASKAWA CP-317/219IF – Enhanced variant of the YASKAWA CP-317/218IF with additional Ethernet (TCP/IP) support, ideal for integrating motion control systems with factory IoT networks.
- YASKAWA CP-316/218IF – Previous-generation interface module compatible with Yaskawa’s Sigma-5 servo drives; offers basic EtherCAT and RS-485 support with reduced I/O (6 inputs, 2 outputs).
- YASKAWA CP-317/220IF – High-temperature-rated model of the YASKAWA CP-317/218IF (operating range: -10°C to +60°C), designed for extreme environments like foundries or glass manufacturing plants.
- YASKAWA CP-317/218IF-D – Dual-port EtherCAT version of the YASKAWA CP-317/218IF, enabling daisy-chaining of multiple servo drives for large-scale motion systems (e.g., automated conveyor lines).
- YASKAWA CP-320/218IF – Analog I/O-equipped variant, adding 2 analog inputs (0-10 V DC) and 1 analog output to the YASKAWA CP-317/218IF for applications requiring variable speed control (e.g., extruders).
- YASKAWA CP-317/218IF-S – Safety-certified (SIL 2) model of the YASKAWA CP-317/218IF, featuring integrated safety functions (e.g., safe torque off) for applications with strict safety requirements (e.g., automotive assembly).
- YASKAWA CP-315/218IF – Economical alternative to the YASKAWA CP-317/218IF with limited protocol support (only RS-485/Modbus RTU) for non-critical applications (e.g., basic conveyor control).
As a certified partner of industry leaders such as Bentley Nevada, Honeywell, and Yaskawa, we provide key components for the following areas:
- Discrete Manufacturing: Motion control system integration in automotive assembly lines (e.g., robotic welding arms), CNC machine tools, and electronic component placement machines—where the YASKAWA CP-317/218IF enables precise coordination between servo drives and PLCs.
- Process Industries: Conveyor system control and material handling in packaging plants and food processing facilities, leveraging the module’s noise immunity to ensure consistent operation near high-power equipment.
- Automation Infrastructure: Retrofits of legacy motion control systems (e.g., old CNC mills) to Yaskawa’s modern Sigma series, using the YASKAWA CP-317/218IF to bridge compatibility gaps between new drives and existing control hardware.
We adhere to the business philosophy of "Customer First, Striving for Progress" and prioritize professional pre-sales and after-sales service. All products, including the YASKAWA CP-317/218IF, come with a one-year warranty. If you cannot find the model you need, please contact us immediately.
