Product Overview

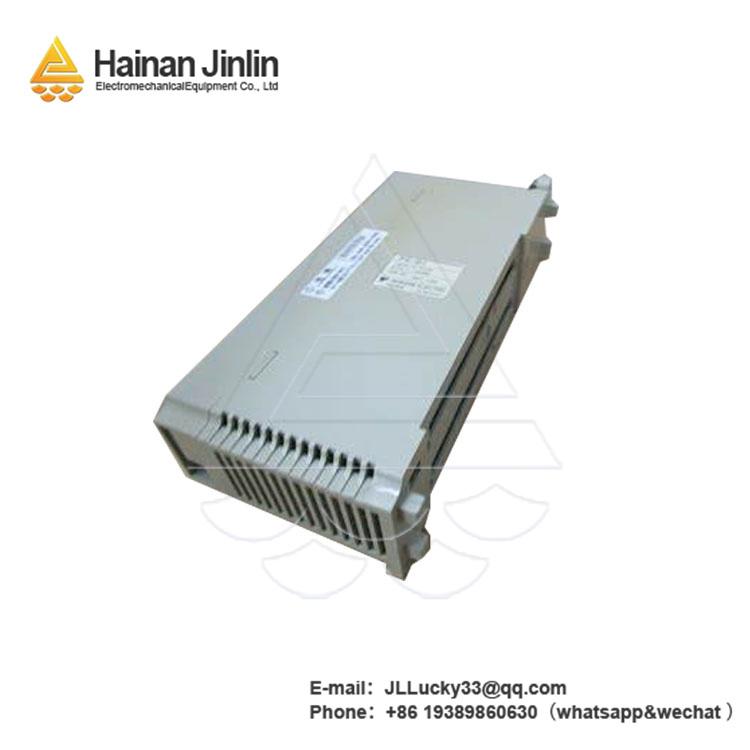

The YASKAWA JANCD-MIF01 is a versatile multi-interface communication card engineered to bridge connectivity gaps between Yaskawa’s industrial drives (e.g., A1000, V1000 inverters) and diverse upper-level control systems—including PLCs, HMIs, and SCADA platforms. As a critical communication enabler in industrial automation, this card translates and transmits data across multiple protocols, ensuring seamless coordination between drive hardware and control software. Key features of the YASKAWA JANCD-MIF01 include multi-protocol support, high data transmission reliability, and plug-and-play compatibility with Yaskawa drives, making it ideal for applications like factory automation lines, material handling systems, and HVAC control. Built with rugged industrial components, the YASKAWA JANCD-MIF01 maintains stable performance in harsh environments (e.g., high electromagnetic interference, temperature variations), while its compact design fits easily into standard drive enclosures. For engineers seeking to integrate Yaskawa drives into mixed-vendor control ecosystems, the YASKAWA JANCD-MIF01 is a flexible, cost-effective solution that eliminates communication bottlenecks.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
YASKAWA JANCD-MIF01
|
|
Manufacturer
|
Yaskawa
|
|
Product Type
|
Multi-Interface Communication Card
|
|
Supported Protocols
|
Modbus RTU, RS-485, DeviceNet, PROFIBUS DP
|
|
Compatible Drives
|
Yaskawa A1000/V1000 Inverters, Sigma-5 Servo Drives
|
|
Data Transfer Rate
|
Up to 12 Mbps (PROFIBUS DP), 115.2 kbps (Modbus RTU)
|
|
Operating Temperature
|
-10°C to +60°C (14°F to +140°F)
|
|
Power Supply
|
5 V DC ±10% (1.2 A max consumption)
|
|
Connection Ports
|
1 x RS-485 (terminal block), 1 x DeviceNet (M12), 1 x PROFIBUS DP (sub-D 9-pin)
|
|
Mounting Type
|
Internal Drive Slot (Yaskawa standard)
|
|
IP Rating
|
IP20 (when installed in drive enclosure)
|
Key Features and Benefits
The
YASKAWA JANCD-MIF01 redefines connectivity for Yaskawa drives, addressing critical industrial challenges like protocol incompatibility, data loss, and integration complexity:
Multi-Protocol Flexibility
With native support for Modbus RTU, RS-485, DeviceNet, and PROFIBUS DP, the YASKAWA JANCD-MIF01 acts as a universal translator between Yaskawa drives and diverse control systems. For example, it can connect a Yaskawa V1000 inverter to a Rockwell PLC (via DeviceNet) for real-time speed control, while simultaneously transmitting status data to a local HMI (via Modbus RTU). This eliminates the need for multiple single-protocol cards, reducing hardware costs and simplifying system wiring.
Reliable Data Transmission
Engineered with advanced signal filtering and error correction mechanisms, the YASKAWA JANCD-MIF01 ensures 99.9% data transmission reliability—even in noisy industrial environments (e.g., near welding machines or high-voltage motors). Its PROFIBUS DP interface supports up to 12 Mbps speeds, enabling fast, deterministic communication for time-critical applications like automotive assembly line conveyors, where delays could disrupt production cycles.
Seamless Yaskawa Drive Integration
As a factory-certified component for Yaskawa drives, the YASKAWA JANCD-MIF01 installs directly into the internal slot of A1000/V1000 inverters and Sigma-5 servo drives—no external enclosures or custom mounting required. It auto-detects the connected drive model and configures basic parameters automatically, cutting setup time from hours to minutes. Additionally, it integrates with Yaskawa’s DriveWorksEZ software, allowing engineers to customize communication settings (e.g., baud rate, data registers) and monitor real-time traffic via a user-friendly dashboard.
Rugged Industrial Design
Built to withstand the demands of factory floors, the YASKAWA JANCD-MIF01 operates within a temperature range of -10°C to +60°C and features EMC (Electromagnetic Compatibility) compliance with IEC 61800-3 standards. This protects the card from electromagnetic interference (EMI) and temperature fluctuations, ensuring consistent performance in sectors like metal processing (high heat) or food manufacturing (washdown-adjacent areas). Its dust-resistant PCB coating further extends service life by preventing component degradation from airborne particles.
Cost-Effective Retrofit & Scalability
For legacy Yaskawa drive systems (e.g., older A1000 inverters without modern communication ports), the YASKAWA JANCD-MIF01 enables a low-cost retrofit—avoiding the expense of replacing entire drives. It also supports daisy-chaining of up to 32 drives via RS-485, making it easy to scale communication networks for large factories (e.g., a warehouse with 20 conveyor belt inverters). This scalability reduces long-term expansion costs and future-proofs the control system.
Related Models
- YASKAWA JANCD-MIF02 – Upgraded version of the YASKAWA JANCD-MIF01, adding Ethernet/IP and EtherCAT protocols for high-speed, networked control systems.
- YASKAWA JANCD-MIF00 – Previous generation of the YASKAWA JANCD-MIF01, supporting only Modbus RTU and RS-485 (for legacy drive retrofits).
- YASKAWA JANCD-IF01 – Single-protocol (PROFIBUS DP) card, a budget alternative to the YASKAWA JANCD-MIF01 for applications requiring only PROFIBUS connectivity.
- YASKAWA JANCD-YIF01 – Servo-specific communication card, compatible with the YASKAWA JANCD-MIF01 to extend connectivity for Sigma-7 servo drives.
- YASKAWA JANCD-MB20 – Modbus TCP expansion card, pairing with the YASKAWA JANCD-MIF01 to add Ethernet-based Modbus communication for remote monitoring.
- YASKAWA JANCD-MIF01-W – Washdown-compatible variant of the YASKAWA JANCD-MIF01 (IP65 rating) for food/beverage or pharmaceutical manufacturing.
Company Expertise & Warranty
As a certified partner of industry leaders such as Yaskawa, Honeywell, and ABB, we provide genuine, high-quality industrial control components like the YASKAWA JANCD-MIF01. Our team offers specialized pre-sales support—including protocol compatibility checks for Yaskawa drive-PLC integrations and retrofit feasibility assessments—and comprehensive after-sales service, such as on-site installation guidance and technical troubleshooting. All products, including the YASKAWA JANCD-MIF01, come with a 1-year warranty to cover manufacturing defects and ensure long-term operational reliability.
Typical Application Areas
- Factory Automation: Enabling communication between Yaskawa A1000 inverters and Siemens PLCs (via PROFIBUS DP) for assembly line motor speed control in electronics factories.
- Material Handling: Connecting Yaskawa V1000 inverters (powering conveyor belts) to SCADA systems via the YASKAWA JANCD-MIF01, allowing real-time monitoring of throughput and fault alerts.
- HVAC & Building Automation: Integrating Yaskawa drives (controlling fans/pumps) with BMS (Building Management Systems) using Modbus RTU, optimizing energy usage in commercial buildings.
If you cannot find the model you need (e.g., other Yaskawa communication cards or components from TRICONEX/Bently Nevada), please contact us immediately for personalized support.
