Product Overview

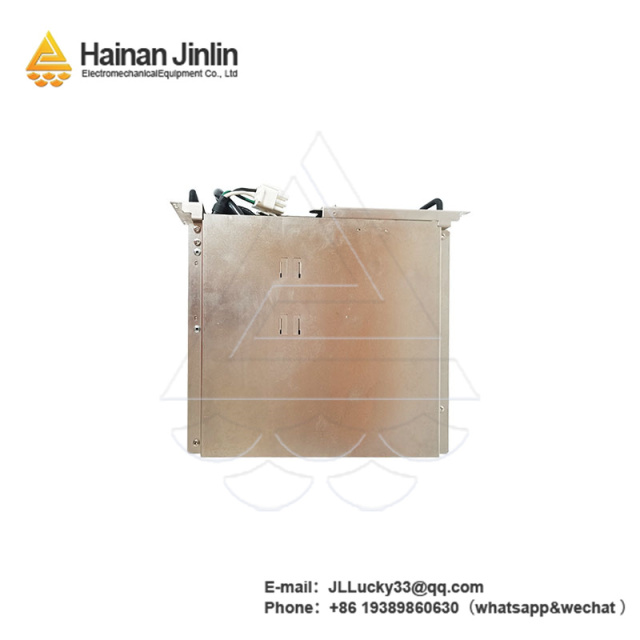

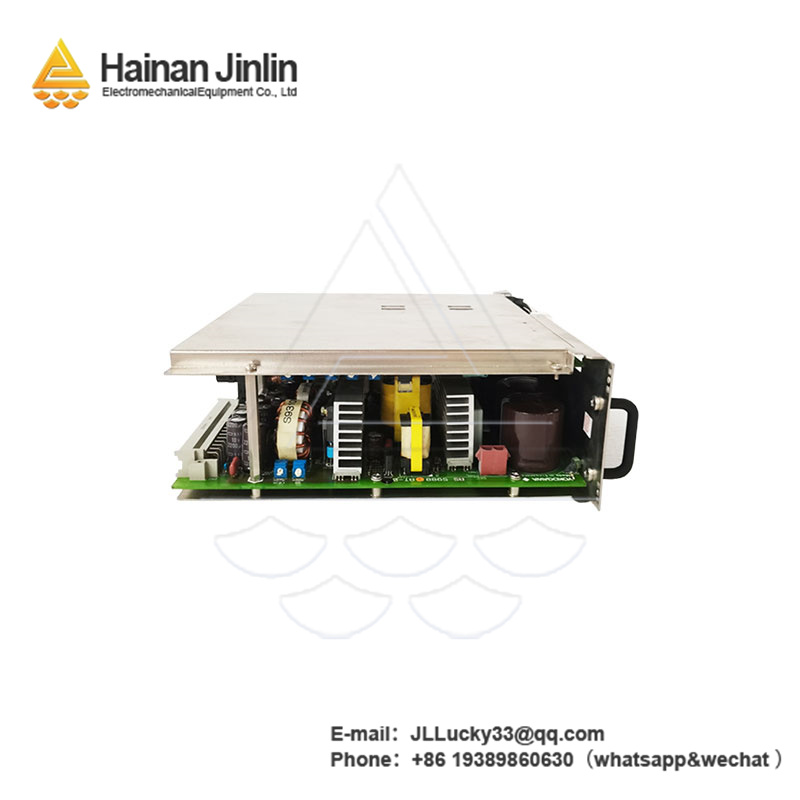

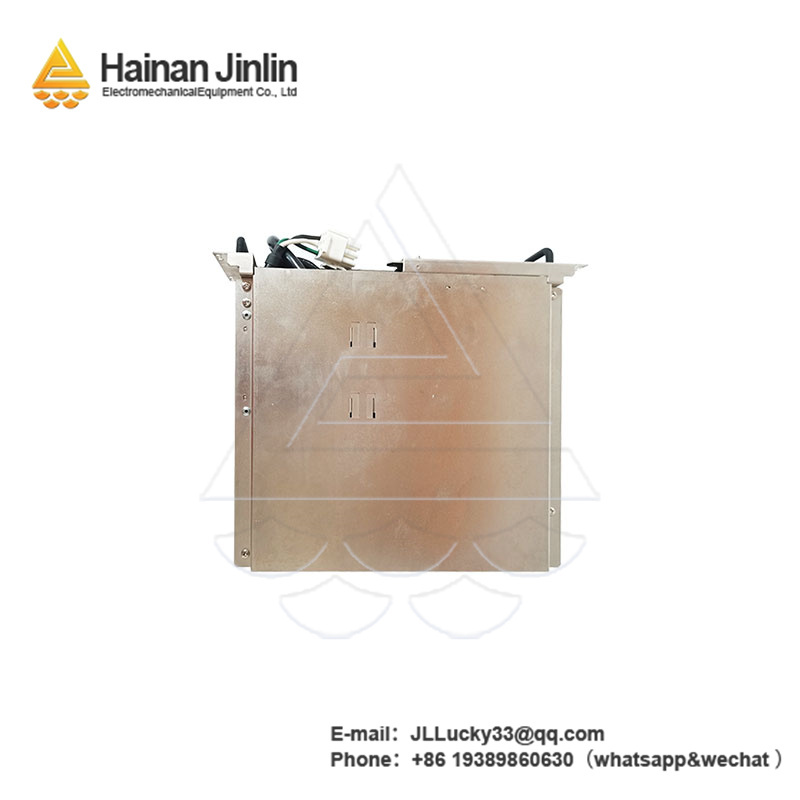

The YOKOGAWA AIP171 is a high-reliability transceiver control module engineered by Yokogawa, a global leader in industrial automation and DCS (Distributed Control System) solutions. Specifically designed for Yokogawa’s CENTUM VP DCS—a cornerstone system in petrochemical, power generation, and large-scale manufacturing industries—the AIP171 serves as the critical communication hub for V-Net (Yokogawa’s proprietary industrial bus) repeater systems. Its core function is to enable stable, long-distance data transmission between V-Net repeaters and transceiver units, ensuring seamless flow of control signals, process data, and diagnostic information across large industrial facilities.
Compliant with industrial-grade standards for environmental resilience, the AIP171 operates reliably in harsh conditions with electrical interference and temperature fluctuations. Key features include high-speed data transfer (up to 10 Mbps), redundant configuration support, and comprehensive diagnostic tools—all of which minimize network downtime and ensure uninterrupted operation of mission-critical processes. Whether extending communication distances to 4 kilometers in offshore platforms or maintaining fault tolerance in refineries, the YOKOGAWA AIP171 is an indispensable component for scaling CENTUM VP DCS networks while preserving data integrity.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
YOKOGAWA AIP171
|
|
Manufacturer
|
Yokogawa
|
|
Product Type
|
Transceiver Control Module (for CENTUM VP DCS V-Net Repeater Systems)
|
|
Primary Function
|
V-Net signal repeat, transceiver unit management, long-distance data transmission
|
|
Supported Protocols
|
Yokogawa V-Net (proprietary industrial bus)
|
|
Communication Interfaces
|
RS-485, RS-232, Ethernet (for configuration/monitoring)
|
|
Data Transfer Rate
|
Up to 10 Mbps (V-Net communication)
|
|
Maximum Transmission Distance
|
Up to 4 kilometers (via optical V-Net)
|
|
Redundancy Support
|
Configurable as redundant pair (1+1 fault tolerance)
|
|
Compatibility
|
Yokogawa CENTUM VP DCS (all current revisions), V-Net repeater units
|
|
Power Supply Voltage
|
24 V DC (from CENTUM VP DCS backplane)
|
|
Operating Temperature
|
0 °C to +50 °C (32 °F to +122 °F)
|
|
Protection Features
|
ESD protection (±15 kV air), overvoltage protection (up to 30 V DC), short-circuit protection
|
|
Mounting Type
|
Backplane mounting (CENTUM VP standard I/O chassis)
|
|
IP Rating
|
IP20 (module), IP40 (when installed in DCS chassis)
|
|
Diagnostic Capabilities
|
Status monitoring (LED indicators), alarm reporting, loopback testing, fault logging
|
Key Features and Benefits
The YOKOGAWA AIP171 delivers targeted value for industrial network scalability and reliability, with features optimized for large-scale CENTUM VP DCS deployments:
Long-Distance, High-Speed Communication
With support for optical V-Net transmission, the AIP171 extends communication distances up to 4 kilometers—critical for large facilities like oil refineries, where control rooms may be located far from field equipment. Its 10 Mbps data transfer rate ensures real-time transmission of process control signals and sensor data, avoiding delays that could impact process stability. For example, in a combined-cycle power plant, the AIP171 can link turbine sensors (located 3 km from the control room) to the CENTUM VP DCS without signal degradation.
Redundant Configuration for Fault Tolerance
The AIP171 can be configured as a redundant pair (1+1), meaning if one module fails, the backup automatically takes over—eliminating single points of failure in the network. This is essential for safety-critical applications like petrochemical distillation, where network outages could lead to process upsets or safety hazards. The module’s seamless failover ensures zero data loss and uninterrupted operation, aligning with industry requirements for 99.99% network availability.
Comprehensive Diagnostics for Rapid Troubleshooting
Built-in diagnostic tools simplify network maintenance and reduce downtime. The AIP171 provides real-time status monitoring via LED indicators (e.g., power, communication link, fault) and logs detailed fault information (e.g., signal loss, module overheating) that can be accessed through the CENTUM VP HMI. Loopback testing allows technicians to verify module functionality without disconnecting field wiring, cutting troubleshooting time by up to 60%. This is particularly valuable in remote locations like offshore platforms, where on-site maintenance is costly and time-consuming.
Related Models
- YOKOGAWA AIP172 – High-temperature variant of the AIP171, with an extended operating range (-20 °C to +70 °C) for harsh environments like steel mill furnaces or desert power plants.
- YOKOGAWA AIP173 – Fiber-optic dedicated version of the AIP171, optimized for ultra-long-distance transmission (up to 10 kilometers) in mining or pipeline applications.
- YOKOGAWA AIP170 – Entry-level variant of the AIP171, supporting 5 Mbps data transfer and no redundancy, ideal for small-scale CENTUM VP DCS deployments (e.g., laboratory process units).
- YOKOGAWA VNP100 – V-Net repeater unit paired with the AIP171, enabling multi-node network expansion and signal amplification for distributed field equipment.
- YOKOGAWA AIP171-R – Enhanced redundancy model of the AIP171, featuring dual power inputs and automatic firmware synchronization between redundant pairs for mission-critical systems (e.g., nuclear power plants).
Company & Service Highlights
Hainan Jinlin Mechanical and Electrical Equipment Co., Ltd., a distributor of industrial control products from various brands, specializes in selling industrial control products. Leveraging extensive industry knowledge and market insights, we adhere to the business philosophy of "Customer First, Striving for Progress" and prioritize customer service to provide customers with high-quality services. We are committed to serving your needs and are dedicated to meeting them!
As a certified partner of industry leaders such as Bentley Nevada, Honeywell, and Yokogawa, we provide key components for the following areas:
Typical Application Areas
- Petrochemical Industry: Extending V-Net communication between CENTUM VP DCS and offshore oil rig sensors, using the AIP171’s 4 km transmission range to link onshore control rooms with remote wellheads.
- Power Generation: Enabling redundant network communication in coal-fired power plants, where the AIP171’s fault tolerance ensures uninterrupted monitoring of boiler pressure and turbine speed.
- Pipeline Transportation: Supporting long-distance data transmission along cross-country oil/gas pipelines, using the AIP171 to connect flow meters and pressure sensors to a central CENTUM VP DCS.
We offer a one-year warranty on all products, including the YOKOGAWA AIP171, and provide specialized pre-sales support (e.g., V-Net network design, redundancy configuration planning) and after-sales service (e.g., on-site module installation, diagnostic training). If you cannot find the model you need, please contact us immediately.
