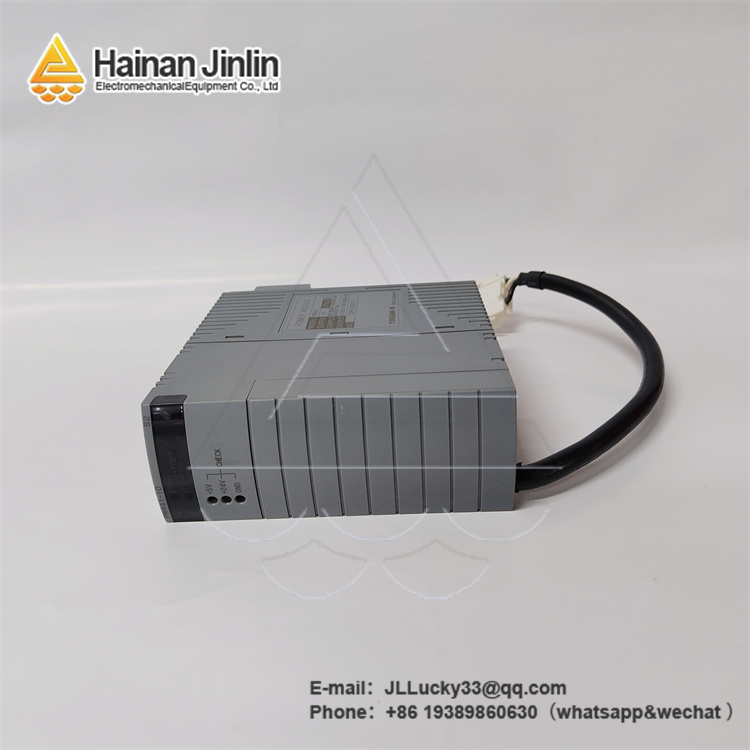

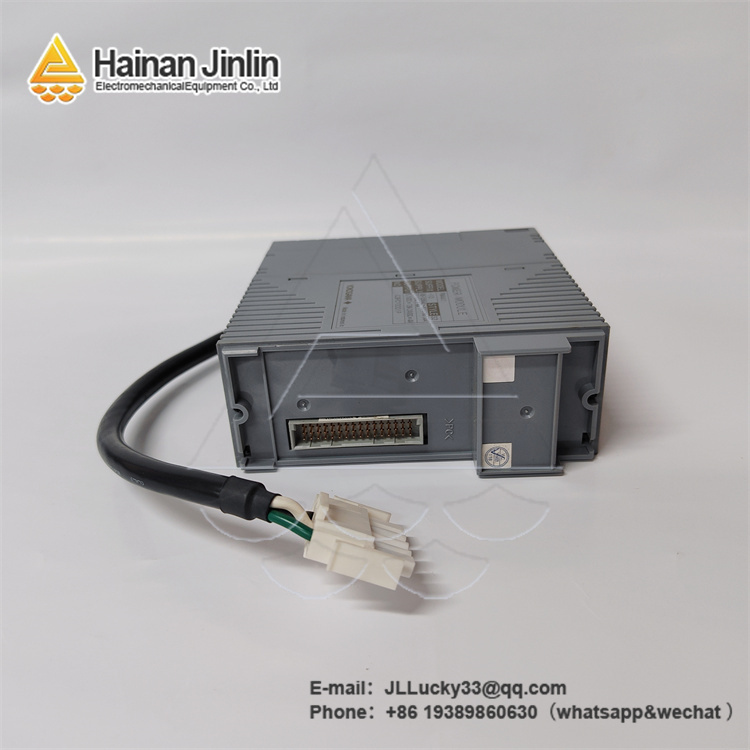

Product Overview
The YOKOGAWA AVR10D-A22010 is a precision-engineered automatic voltage regulator (AVR) module, specifically designed to maintain stable output voltage for critical industrial power systems—including generators, motor drives, and DCS (Distributed Control Systems) power supplies. This module plays a pivotal role in preventing voltage fluctuations that can damage sensitive equipment or disrupt production processes, making it a cornerstone of reliability in industrial operations. Key features of the YOKOGAWA AVR10D-A22010 include high-precision voltage regulation, fast response to load changes, and robust overvoltage/undervoltage protection, ensuring consistent power delivery even in dynamic industrial environments. As a trusted component in Yokogawa’s power control ecosystem, the YOKOGAWA AVR10D-A22010 is compatible with a range of Yokogawa power management systems, making it ideal for sectors like petrochemicals, power generation, and manufacturing. Its compact design and industrial-grade durability further solidify the YOKOGAWA AVR10D-A22010 as a top choice for engineers prioritizing power stability and equipment longevity.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
YOKOGAWA AVR10D-A22010
|
|
Manufacturer
|
Yokogawa
|
|
Product Type
|
Automatic Voltage Regulator (AVR) Module
|
|
Input Voltage Range
|
85-264 V AC (single-phase)
|
|
Output Voltage Regulation
|
220 V AC ±1% (adjustable)
|
|
Response Time
|
≤ 50 ms (to 100% load change)
|
|
Operating Temperature
|
-20°C to +60°C (-4°F to +140°F)
|
|
Protection Features
|
Overvoltage, undervoltage, short-circuit, over-temperature
|
|
Mounting Type
|
DIN Rail (35 mm standard)
|
|
IP Rating
|
IP20 (front panel)
|
Key Features and Benefits
The
YOKOGAWA AVR10D-A22010 delivers unmatched value in industrial power management, addressing key challenges like voltage instability and equipment vulnerability:
High-Precision Voltage Regulation
With an output voltage tolerance of ±1%, the YOKOGAWA AVR10D-A22010 ensures ultra-stable power delivery to sensitive industrial equipment—such as Yokogawa DCS modules or precision sensors. This level of accuracy prevents data errors in process monitoring (e.g., incorrect temperature readings) and avoids premature wear on motor drives, extending the lifespan of critical assets.
Rapid Load Change Response
Boasting a response time of ≤50 ms, the YOKOGAWA AVR10D-A22010 quickly adjusts to sudden load fluctuations (e.g., when a production line’s motor starts/stops). This eliminates voltage sags or surges that could trigger equipment shutdowns, minimizing unplanned downtime in high-demand sectors like automotive manufacturing or power plants.
Comprehensive Protection Mechanisms
The YOKOGAWA AVR10D-A22010 integrates multi-layer protection: overvoltage/undervoltage safeguards shield connected devices from power spikes or dips, short-circuit protection prevents module damage during electrical faults, and over-temperature protection activates if internal components exceed safe limits. These features reduce maintenance costs and ensure operational safety in harsh industrial settings.
Wide Input Voltage Compatibility
Supporting an input range of 85-264 V AC, the YOKOGAWA AVR10D-A22010 adapts to inconsistent grid power—common in remote industrial sites or regions with unstable electricity. This flexibility eliminates the need for additional voltage converters, simplifying installation and reducing overall system complexity.
Seamless Yokogawa Ecosystem Integration
The YOKOGAWA AVR10D-A22010 is natively compatible with Yokogawa’s power management systems (e.g., Yokogawa DCS power supplies and generator control units). This plug-and-play integration streamlines system upgrades (e.g., retrofitting a petrochemical plant’s power network) and allows for centralized monitoring via Yokogawa’s software tools, enabling engineers to track voltage performance remotely.
Related Models
- YOKOGAWA AVR10D-A11010 – Variant of the YOKOGAWA AVR10D-A22010 with 110 V AC output (for regions using 110 V power grids).
- YOKOGAWA AVR10D-A24010 – Upgraded model of the YOKOGAWA AVR10D-A22010 with 240 V AC output and enhanced surge protection.
- YOKOGAWA AVR20D-A22010 – 3-phase version of the YOKOGAWA AVR10D-A22010 (for large-scale equipment like industrial compressors).
- YOKOGAWA AVR10D-B22010 – Previous generation of the YOKOGAWA AVR10D-A22010, with basic regulation (suitable for legacy system replacements).
- YOKOGAWA PS482-10 – DC power supply module (companion to the YOKOGAWA AVR10D-A22010, used for powering low-voltage DCS components).
- YOKOGAWA AVR10D-C22010 – Compact version of the YOKOGAWA AVR10D-A22010 (for space-constrained applications like control cabinets).
Company Expertise & Warranty
As a certified partner of industry leaders such as Yokogawa, Honeywell, and ABB, we provide genuine, high-quality industrial control components like the
YOKOGAWA AVR10D-A22010. Our team offers professional pre-sales support—including compatibility checks for Yokogawa power system upgrades—and comprehensive after-sales service, such as on-site technical troubleshooting. All products, including the
YOKOGAWA AVR10D-A22010, come with a
1-year warranty to ensure peace of mind.
Typical Application Areas
- Process Industries: Power stability for petrochemical refineries (e.g., regulating voltage for Yokogawa DCS control modules) and power plants (maintaining generator output voltage).
- Discrete Manufacturing: Protecting automotive assembly line equipment (e.g., robotic arms, CNC machines) from voltage fluctuations via the YOKOGAWA AVR10D-A22010.
- Infrastructure: Ensuring consistent power for environmental monitoring systems (e.g., air quality sensors) and building automation tools (e.g., Yokogawa intelligent lighting controls).
If you cannot find the model you need (e.g., other Yokogawa AVRs or components from Emerson/TRICONEX), please contact us immediately for personalized support.
