Product Overview

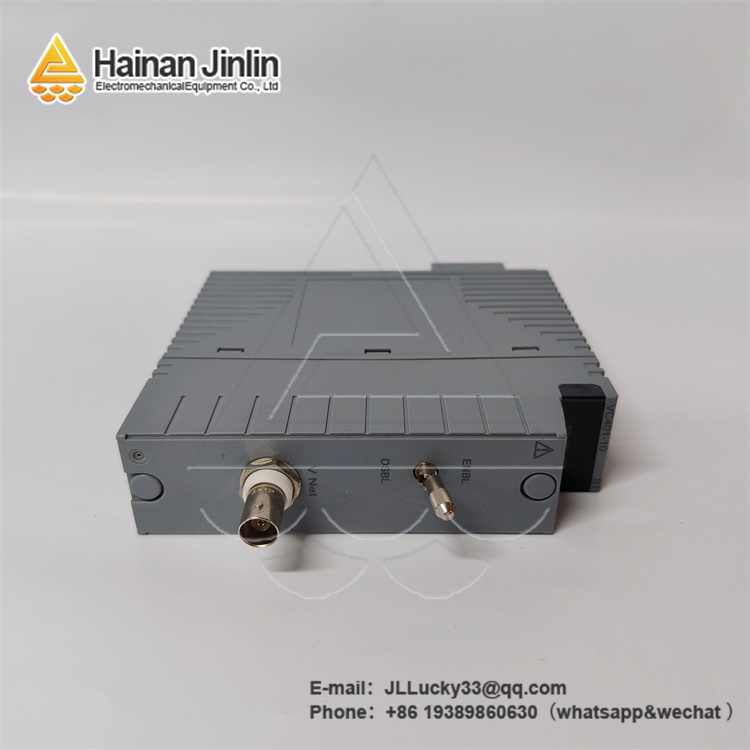

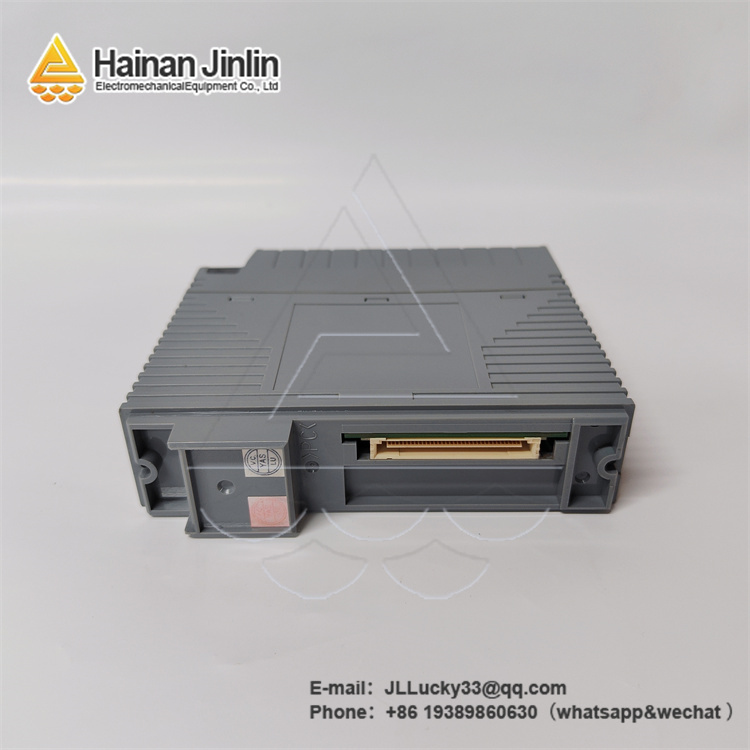

The YOKOGAWA VC401-10 is a specialized valve control module engineered by Yokogawa, a global leader in industrial process automation and DCS (Distributed Control System) solutions. Exclusively designed for integration with Yokogawa’s CENTUM VP DCS—the industry standard for petrochemical, pharmaceutical, and power generation processes—the YOKOGAWA VC401-10 serves as a dedicated interface between the central DCS and process valves (e.g., control valves, on/off valves), enabling precise, real-time control of fluid/gas flow in critical operations.
Built to withstand the harsh conditions of industrial sites, the YOKOGAWA VC401-10 complies with IEC 61000-6-2 (EMC immunity) and IEC 61508 (functional safety, SIL 2 qualified), ensuring stable performance amid electrical interference, temperature fluctuations, and chemical exposure. Key capabilities include analog position control, digital status feedback, and built-in valve diagnostics—all of which minimize flow variability, reduce valve wear, and enhance operational safety. Whether regulating feedstock flow in a refinery reactor or controlling solvent dosing in a pharmaceutical batch process, the YOKOGAWA VC401-10 delivers the reliability and precision required for mission-critical valve automation.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
YOKOGAWA VC401-10
|
|
Manufacturer
|
Yokogawa
|
|
Product Type
|
Valve Control Module (for CENTUM VP DCS)
|
|
Control Functionality
|
Analog valve position control (4-20 mA), digital valve status feedback (24 V DC)
|
|
Number of Valve Channels
|
1 (single-valve dedicated control)
|
|
Input/Output Signals
|
Control Output: 4-20 mA DC (valve position command); Feedback Input: 4-20 mA DC (valve position sensor); Status Inputs: 2 x 24 V DC (valve open/closed limit switches)
|
|
Control Accuracy
|
±0.1% of full scale (valve position control)
|
|
Response Time
|
≤ 100 ms (from command signal to output adjustment)
|
|
Compatibility
|
Yokogawa CENTUM VP DCS (R6.03+), Yokogawa ProSafe-RS Safety System, 2-wire/4-wire control valves
|
|
Power Supply Voltage
|
24 V DC (from CENTUM VP DCS backplane)
|
|
Operating Temperature
|
0 °C to +60 °C (32 °F to +140 °F)
|
|
Protection Features
|
Overcurrent protection (1 A max), short-circuit protection, ESD protection (±15 kV air), valve stall detection
|
|
Mounting Type
|
Backplane mounting (CENTUM VP standard I/O chassis)
|
|
IP Rating
|
IP20 (module), IP40 (when installed in DCS chassis)
|
|
Diagnostic Capabilities
|
Valve position deviation alarm, limit switch fault detection, output circuit fault logging
|
Key Features and Benefits
The YOKOGAWA VC401-10 stands out as a specialized, reliable solution for valve automation in CENTUM VP DCS environments, with features optimized for precision, safety, and ease of maintenance:
Precision Valve Position Control
At its core, the YOKOGAWA VC401-10 delivers ±0.1% full-scale control accuracy for valve position, ensuring precise regulation of flow rates—critical for processes like chemical dosing or steam pressure control, where even small deviations can impact product quality or process safety. Its fast response time (≤ 100 ms) enables real-time adjustments to changing process conditions, such as sudden pressure spikes in a petrochemical distillation column, preventing flow instability and minimizing waste.
SIL 2 Safety & Proactive Diagnostics
Certified to IEC 61508 SIL 2, the YOKOGAWA VC401-10 meets the safety requirements of process industries where valve failure could lead to environmental hazards or production shutdowns. Built-in diagnostics continuously monitor valve health: it detects position deviations (e.g., valve not reaching commanded position due to mechanical jamming) and limit switch faults (e.g., open circuit in open/closed sensors), triggering immediate alerts in the CENTUM VP HMI. This proactive monitoring allows maintenance teams to address issues before they escalate, reducing unplanned downtime by up to 30% compared to non-diagnostic valve controllers.
Seamless CENTUM VP Integration
As a native CENTUM VP module, the YOKOGAWA VC401-10 is automatically recognized by the DCS chassis, eliminating the need for custom drivers or configuration tools. Technicians can set valve control parameters (e.g., position setpoints, alarm thresholds), monitor real-time valve status (e.g., current position, limit switch state), and access fault logs directly via Yokogawa’s CENTUM VP software. This integration streamlines system setup and maintenance—for example, during a refinery turnaround, technicians can reconfigure valve control logic remotely without physical access to the module, saving time and labor costs.
Related Models
- YOKOGAWA VC401-20 – Dual-channel variant of the YOKOGAWA VC401-10, controlling two independent valves in a single module to save cabinet space (e.g., parallel feed valves in a pharmaceutical reactor).
- YOKOGAWA VC401-10-H – High-temperature version of the YOKOGAWA VC401-10, with an extended operating range (-20 °C to +70 °C) for harsh environments like steel mill fluid control or cement kiln fuel valves.
- YOKOGAWA VC401-10-S – SIL 3-qualified upgrade of the YOKOGAWA VC401-10, designed for ProSafe-RS safety instrumented systems (SIS) like emergency shutdown (ESD) valves in oil & gas pipelines.
- YOKOGAWA VC402-10 – On/off valve-focused variant of the YOKOGAWA VC401-10, optimized for digital on/off control (instead of analog position control) for applications like tank isolation valves.
- YOKOGAWA ALP121 – Hybrid I/O module compatible with the YOKOGAWA VC401-10, providing additional analog inputs for monitoring valve-related process variables (e.g., upstream/downstream pressure).
- YOKOGAWA PSCAMAAN – Analog input module paired with the YOKOGAWA VC401-10, adding 8 channels to monitor supplementary sensor data (e.g., valve stem temperature) for comprehensive valve health tracking.
Company & Service Highlights
Hainan Jinlin Mechanical and Electrical Equipment Co., Ltd., a distributor of industrial control products from various brands, specializes in selling industrial control products. Leveraging extensive industry knowledge and market insights, we adhere to the business philosophy of "Customer First, Striving for Progress" and prioritize customer service to provide customers with high-quality services. We are committed to serving your needs and are dedicated to meeting them!
As a certified partner of industry leaders such as Bentley Nevada, Honeywell, and Yokogawa, we provide key components for the following areas:
Typical Application Areas
- Petrochemical Industry: Controlling feedstock control valves in ethylene production, where the YOKOGAWA VC401-10’s precision ensures stable flow rates and optimal reactor efficiency.
- Pharmaceutical Manufacturing: Regulating solvent dosing valves in drug synthesis batches, leveraging the module’s SIL 2 rating and diagnostics to meet FDA requirements for process safety and traceability.
- Power Generation: Controlling steam control valves in combined-cycle power plants, using the YOKOGAWA VC401-10’s fast response time to adjust steam flow based on turbine load demands, maximizing energy efficiency.
We offer a one-year warranty on all products, including the YOKOGAWA VC401-10, and provide specialized pre-sales support (e.g., valve-control loop design, DCS compatibility checks) and after-sales service (e.g., on-site calibration, CENTUM VP integration training). If you cannot find the model you need, please contact us immediately.
